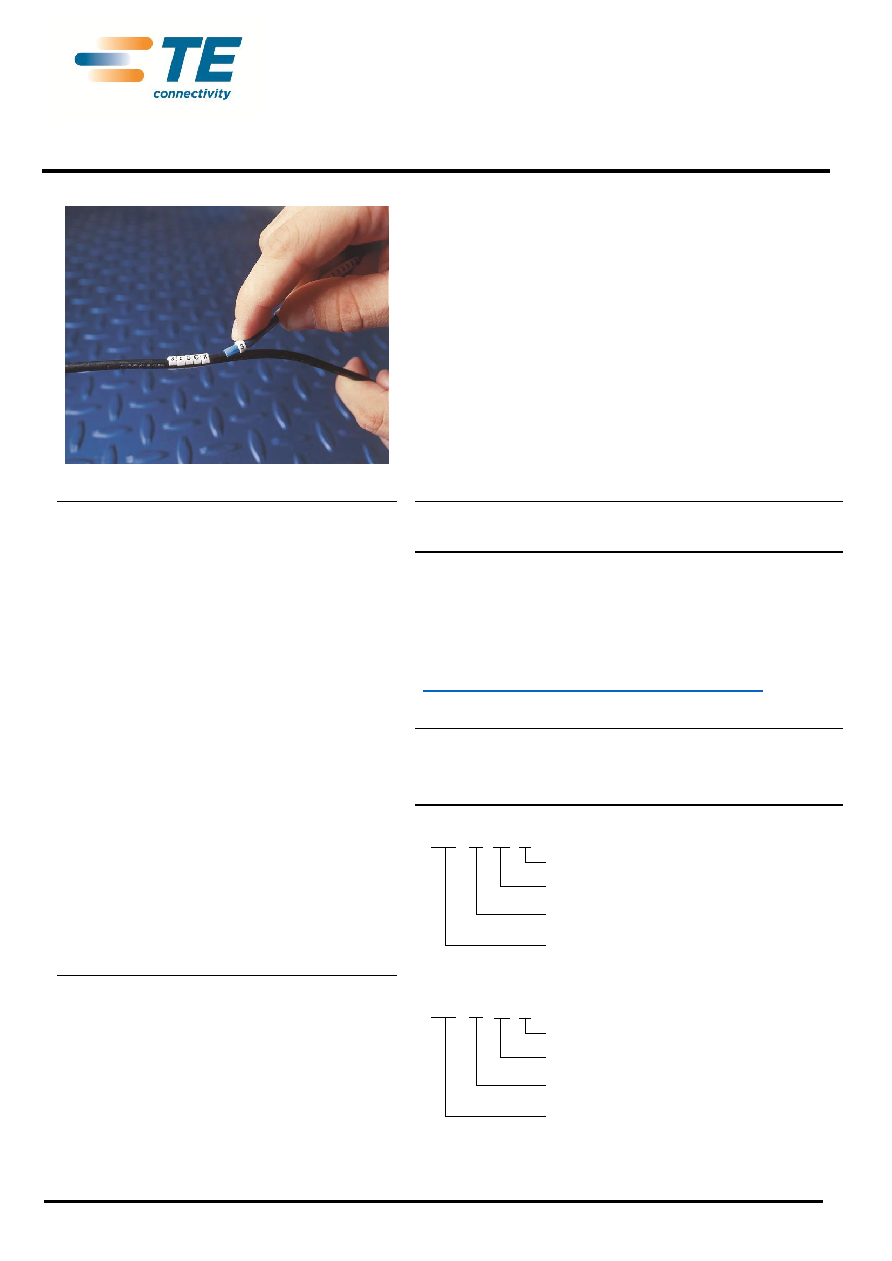

STD and STB Markers

STD and STB markers are individual snap on markers used to

identify wires and small cables permanently. STD markers are white

and yellow. STB markers are colour coded.

Markers are side-entry installed using an applicator wand, so

allowing identification after termination and/or installation. These

markers have an expanding profile which enable markers to

accommodate a wide range of wire and small cable sizes. Markers

are supplied chevron cut to ensure the legend remains aligned.

Manufactured using a zero halogen polyoxymethylene (POM)

compound, this marker lends itself to installations where a

permanent solution is required. Ideally suited for use in Energy

projects including power stations, oil refineries and offshore

platforms.

KEY FEATURES

TEMPERATURE RATING



Zero Halogen



Excellent Resistance to Burning

-

UL94 HB rated



UV stabilised material

-

On black marker with white legends



Resistant to key fluids, including those used

in Energy, Oil refineries, Aviation and Military

(defined by RW-2538)



Ten sizes for cable diameters 1.0 to 19.0mm

(0.04 to 0.75 inches)



Secure grip for positive fixing to cable



Applicator wands available for easy marker

installation



Applicator has a patented slit to prevent

over-expansion of the marker during

application



The high elasticity of the marker enables

material to be installed without damaging the

substrate

Operating Temperature Range -40°C to 106°C (-40°F to 223°F)

ENVIRONMENTAL

No Halogens, Sulphur, Nitrogen, Phosphorus and Cadmium sources

above trace level

Information and a downloadable declaration covering RoHS and

REACH compliance can be found at the ‘TE Product Compliance

Support

Centre’:

http://www.te.com/en/resources/product-compliance.html

SPECIFICATIONS / APPROVALS

TE Connectivity Standard



RW-2538

PART DESCRIPTION

STD - Standard marker

STD

06 W -4

Legend code

Color code

Size

Product family

APPLICATIONS



Post termination cable identification



Identification of small wires and cables,

including optical fibres.



Ideally suited for use in Energy projects

including power stations, oil refineries and

offshore platforms.

STB - Color coded marker

STB

06

-2

-4

Legend code

Color code

Size

Product family

Where possible, TE have tested product as a finished item, including the print. Operational tests are followed by an

assessment of mark adherence to validate fit form and function. Further details can be found in TE standard RW-2538.
