PLL102-03

Low Skew Output Buffer

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991 www.phaselink.com Rev 02/23/06 Page 1

FEATURES

• Frequency range 75 ~ 180MHz.

• Internal phase locked loop will allow spread spec-

trum modulation on reference clock to pass to the

outputs (up to 100kHz SST modulation).

• Zero input - output delay.

• Less than 700 ps device - device skew.

• Less than 250 ps skew between outputs.

• Less than 150 ps cycle - cycle jitter.

• Output Enable function tri-state outputs.

• 3.3V operation.

DESCRIPTION

The PLL102-03 is a high performance, low skew, low

jitter zero delay buffer designed to distribute high

speed clocks and is available in an 8-pin SOIC pack-

age. It has four outputs that are synchronized with the

input. The synchronization is established via CLKOUT

feed back to the input of the PLL. Since the skew be-

tween the input and output is less than

±350 ps, the

device acts as a zero delay buffer.

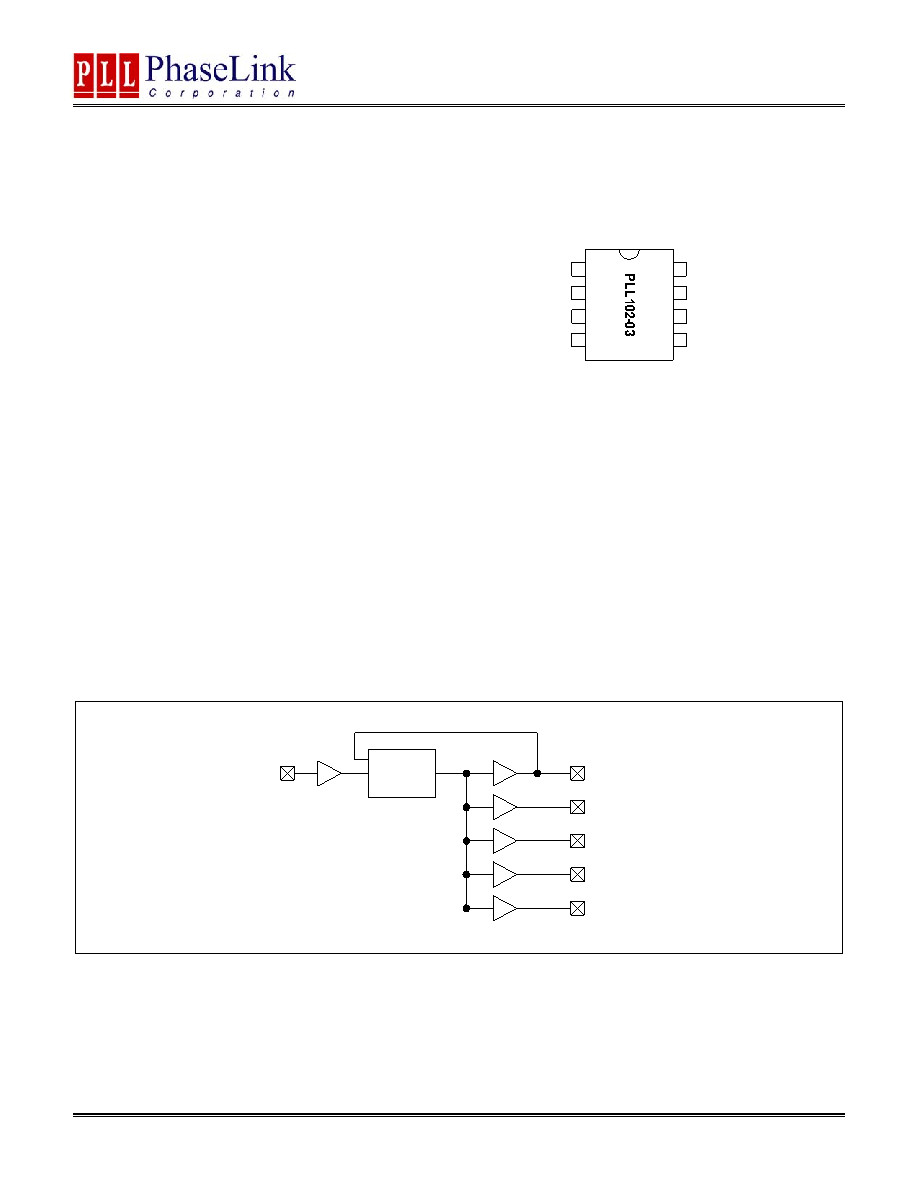

PIN CONFIGURATION

Remark

If REF clock is stopped for more than 10us after it has already been

provided to the chip, and after power-up, the output clocks will

disappear. In that instance, a full power-up reset is required in order

to reactivate the output clocks.

BLOCK DIAGRAM

PLL

REF

CLKOUT

CLK1

CLK2

CLK3

CLK4

1

2

3

4

REF

5

6

7

8

CLK2

CLK1

GND

CLKOUT

CLK4

VDD

CLK3
