PLL620-28/-29

Low Phase Noise VCXO (for 100-200MHz Fund Xtal)

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991

www.phaselink.com Rev 07/08/05 Page 6

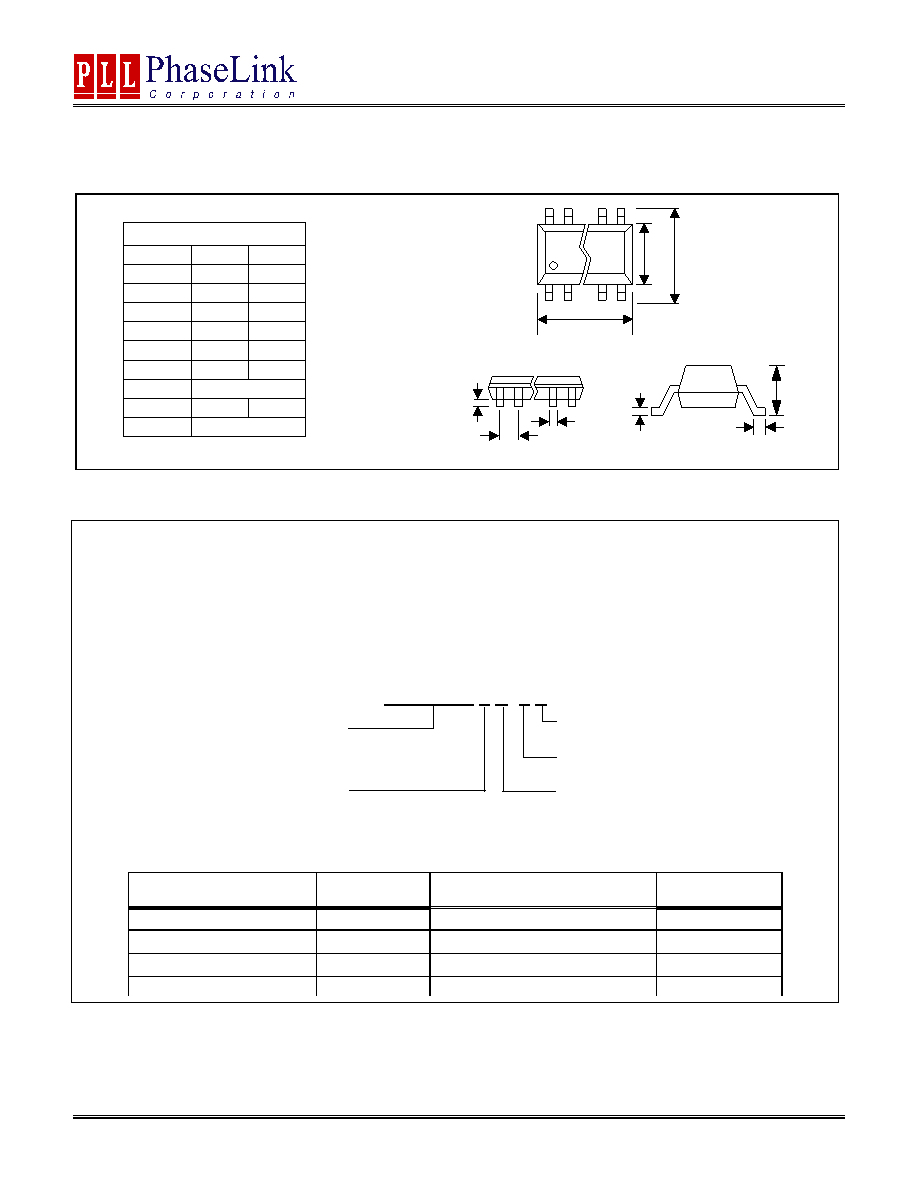

PACKAGE INFORMATION

C

L

A

E

H

D

A1

e

B

16 PIN TSSOP ( mm )

Symbol

Min.

Max.

A

-

1.20

A1

0.05

0.15

B

0.19

0.30

C

0.09

0.20

D

4.90

5.10

E

4.30

4.50

H

6.40 BSC

L

0.45

0.75

e

0.65 BSC

ORDERING INFORMATION

PhaseLink Corporation, reserves the right to make changes in its products or specifications, or both at any time without notice. The information

furnished by Phaselink is believed to be accurate and reliable. However, PhaseLink makes no guarantee or warranty concerning the accuracy of said

information and shall not be responsible for any loss or damage of whatever nature resulting from the use of, or reliance upon this product.

LIFE SUPPORT POLICY: PhaseLink’s products are not authorized for use as critical components in life support devices or systems without the

express written approval of the President of PhaseLink Corporation.

For part ordering, please contact our Sales Department:

47745 Fremont Blvd., Fremont, CA 94538, USA

Tel: (510) 492-0990 Fax: (510) 492-0991

PART NUMBER

The order number for this device is a combination of the following:

Device number, Package type and Operating temperature range

PLL620-2X X C L R

Part / Order Number

Marking

Package Option

Temperature

PLL620-2XOC-R

P620-2XOC

TSSOP -Tape and Reel

0 to +70 C

PLL620-2XOC

P620-2XOC

TSSOP–Tubes

0 to +70 C

PLL620-2XOCL-R

P620-2XOCL

TSSOP-Tape and ReeL (GREEN)

0 to +70 C

PLL620-2XOC

P620-2XOCL

TSSOP–Tubes (GREEN)

0 to +70 C

PART NUMBER

TEMPERATURE

C=COMMERCIAL,

I=INDUSTRIAL

PACKAGE TYPE

O=TSSOP

NONE=NORMAL PACKAGE

L=GREEN PACKAGE

NONE= TUBE

R=TAPE AND REEL
