PLL620-28/-29

Low Phase Noise VCXO (for 100-200MHz Fund Xtal)

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991

www.phaselink.com Rev 07/08/05 Page 1

FEATURES

• 100MHz to 200MHz Fundamental Mode Crystal.

• Output range: 100 – 200MHz (no PLL).

• Low Injection Power for crystal 50uW.

• Sub 0.5pS RMS phase jitter ( 12kHz to 20MHz ).

• PECL (PLL620-28) or LVDS output (PLL620-29).

• Supports 2.5V or 3.3V-Power Supply.

• Available in 16-Pin TSSOP.

DESCRIPTION

The PLL620-28/-29 family of XO ICs is specifically

designed to work with high frequency fundamental

and third overtone crystals. They achieve very low

current into the crystal, resulting in better stability.

Their very low jitter makes them ideal for the most

demanding timing requirements.

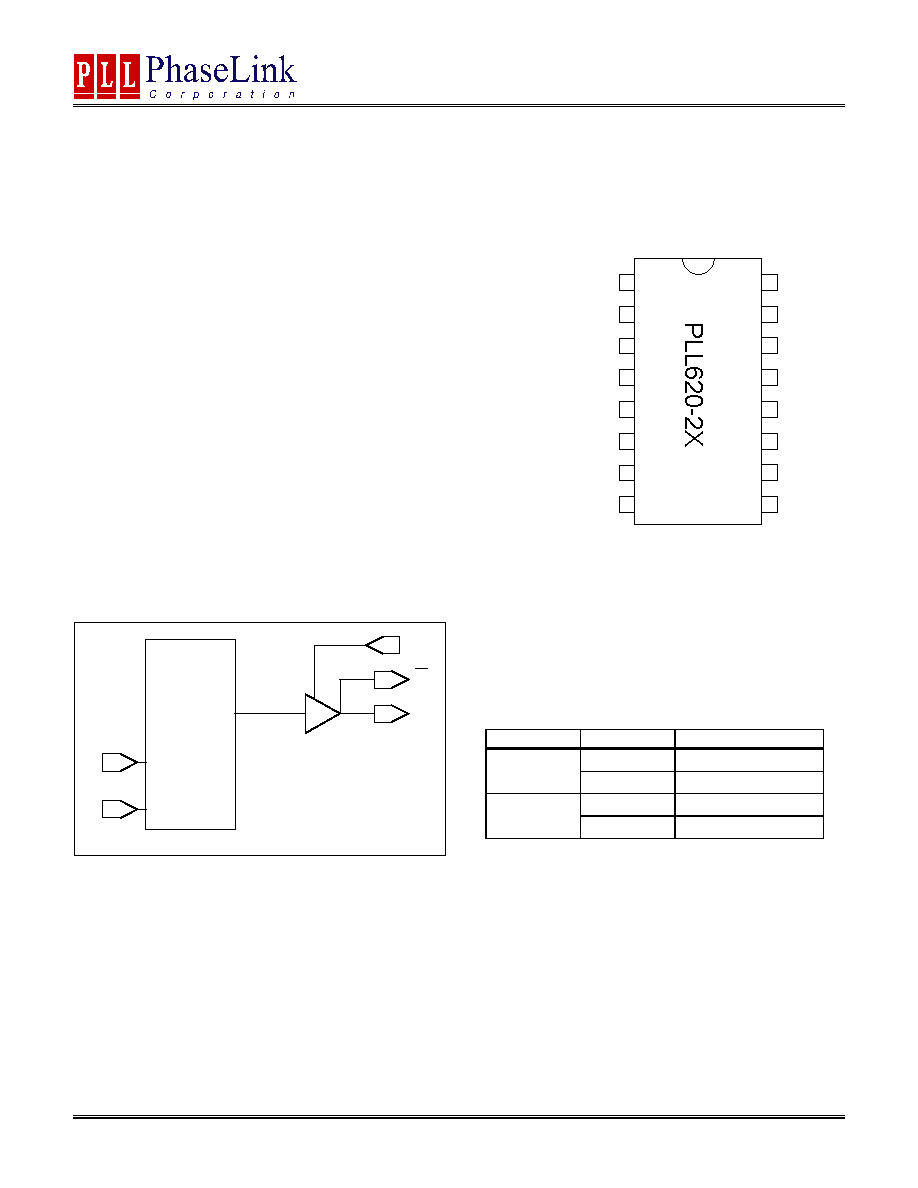

BLOCK DIAGRAM

PIN CONFIGURATION

(Top View)

OUTPUT ENABLE LOGICAL LEVELS

Part #

OE

State

0 (Default)

Output enabled

PLL620-28

1

Tri-state

0

Tri-state

PLL620-29

1 (Default)

Output enabled

OE input: Logical states defined by PECL levels for PLL620-28

Logical states defined by CMOS levels for PLL620-29

XIN

XOUT

OE

Q

PLL620-28/-29

Q

Oscillator

Amplifier
