1

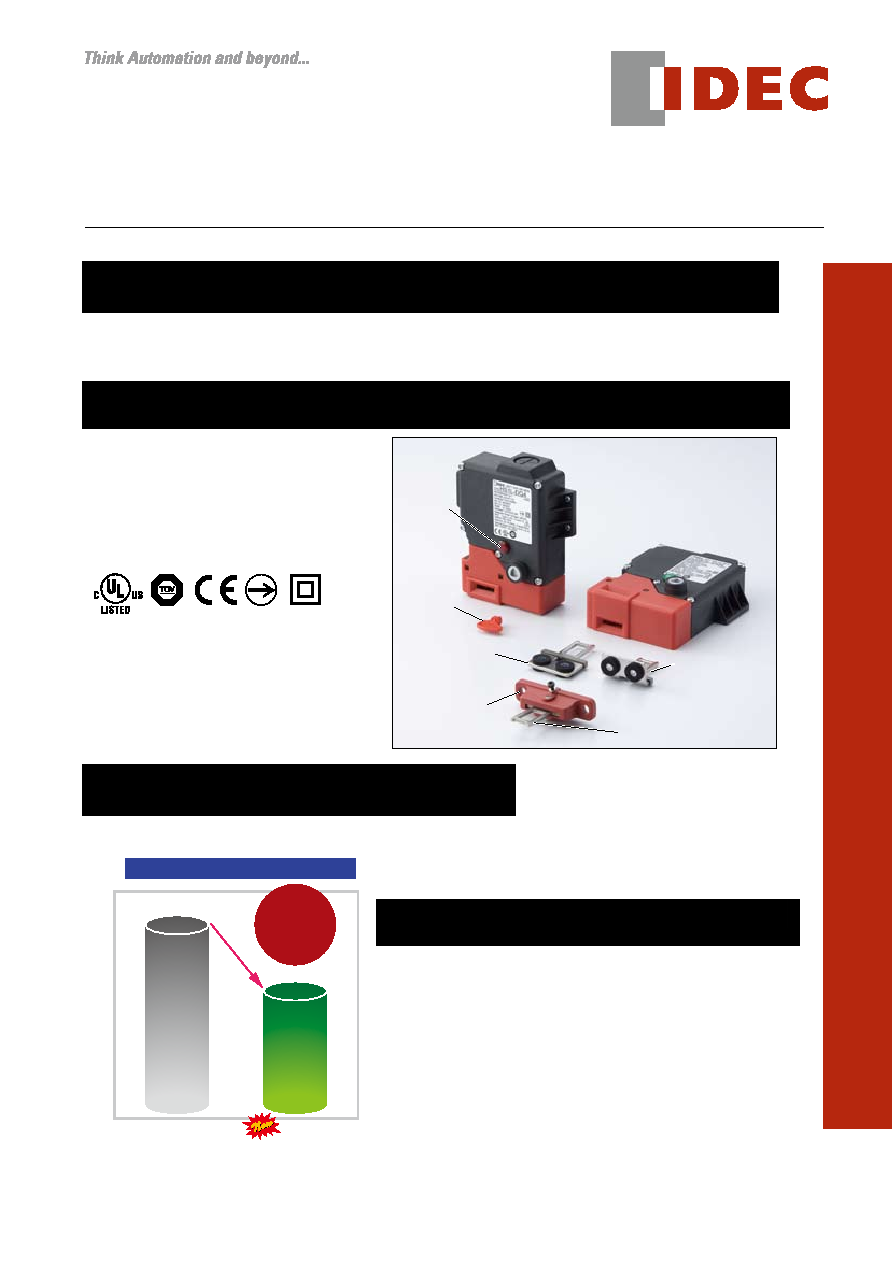

HS1L InterlockSwitcheswithSolenoid

3000N locking strength (strongest* in class)!

Six contacts in a compact housing (same size as HS1E)!

Suitable for large and heavy doors.

Same actuators as HS1E (locking strength 3000N) can be used.

Same dimensions and mounting

hole layouts as HS1E.

Size: 35 × 104 × 129mm

Door open, closed, and locked status can be

monitored for various applications.

Energyefficientnewsolenoidunit.

Manual unlock key and LED indicator are standard.

•

Manual unlock key allows for manual unlocking in the event of

•

power failure or maintenance.

Indicator has an independent circuit, and can be used for vari-

•

ous applications.

Two locking mechanisms to choose from—spring lock (un-

•

locked with energized solenoid) or solenoid lock (locked with

energized solenoid).

M3 terminal screws for wiring.

•

Wide operating temperature range (–20 to +55°C).

•

*As of October 2009, according to IDEC research of plastic interlock switches with solenoid.

New energy saving design!

Improved safety and usability!

(Zinc Diecast)

Manual

Unlock Key

L-shaped Actuator

Angle Adjustable

(vertical) Actuator

Straight Actuator

LED

Indicator

Solenoid Current Consumption

HS1E

Interlock Switch

with Solenoid

HS1L

Interlock Switch

with Solenoid

292 mA

200 mA

Approx.

32%

Less
