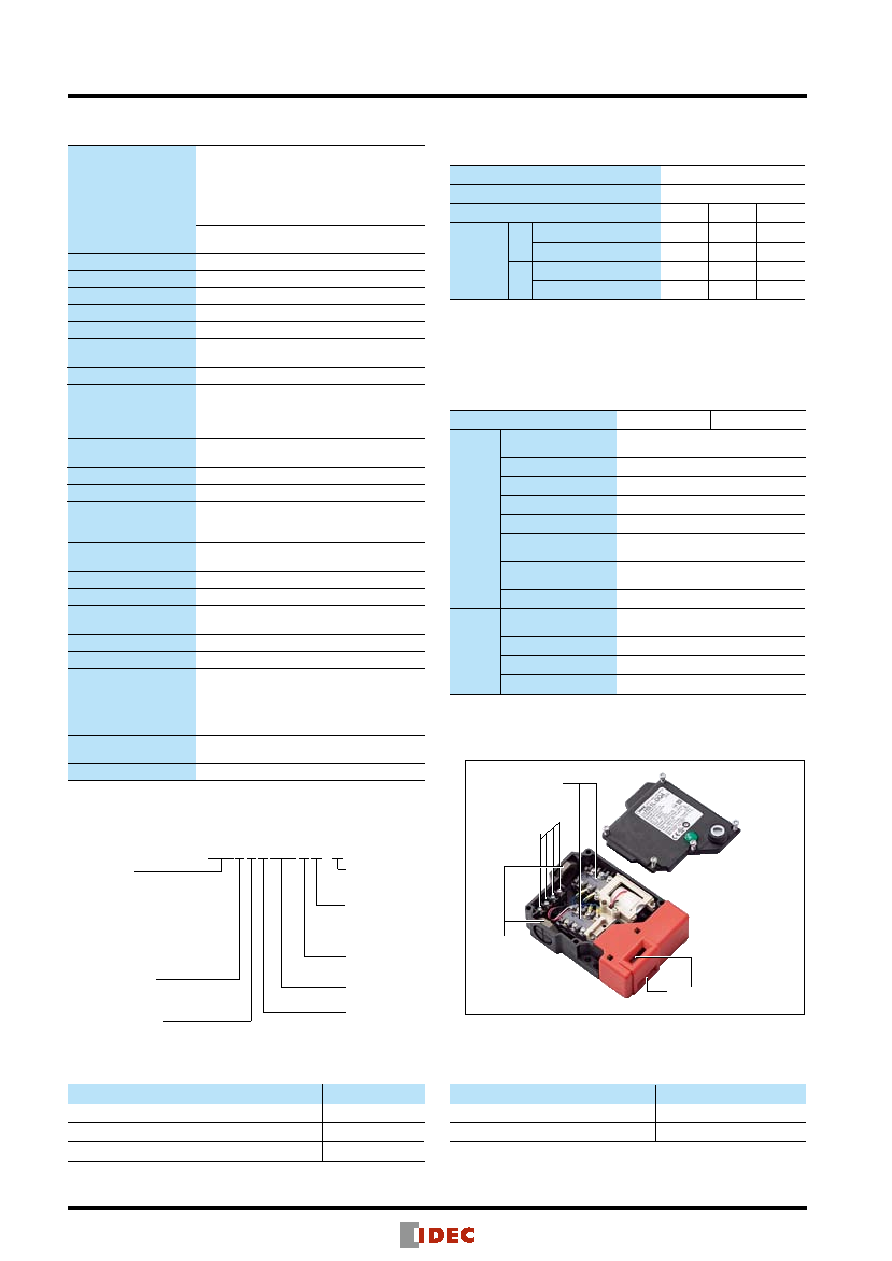

HS1L Interlock Switches with Solenoid

Actuator

•

Description

Part Numbers

Straight Actuator

HS9Z-A1S

L-shaped Actuator

HS9Z-A2S

Angle Adjustable (vertical) Actuator (for hinged door)

HS9Z-A3S

Package quantity: 1

•

Accessories

•

Description

Part Numbers

Key Wrench for TORX Screw (L-shaped)

HS9Z-T1

Conduit Port Plug (Size: G1/2 only)

HS9Z-P1

Package quantity: 1

•

Key Wrench for TORX Screw is supplied with the interlock switch.

•

Specifications

Applicable Standard

ISO14119

IEC60947-5-1

EN60947-5-1 (TÜV approval)

GS-ET-19 (TÜV approval)

UL508 (UL listed)

CSA C22.2 No. 14 (c-UL listed)

IEC60204-1/EN60204-1

(applicable standards for use)

Operating Temperature −20to+55°C(nofreezing)

Relative Humidity

45 to 85% (no condensation)

Storage Temperature

–40 to +80°C (no freezing)

Pollution Degree

3

Overvoltage Category

III

Impulse Withstand

Voltage

4.0kV

(between LED, solenoid and ground: 1.5 kV)

Contact Resistance

50mΩmaximum(initialvalue)

Insulation Resistance

Between live and dead metal parts:

100MΩminimum(500VDCmegger)

Between terminals of different poles:

100MΩminimum(500VDCmegger)

Electric Shock

Protection

Class II (IEC 61140)

Degree of Protection

IP67 (IEC 60529)

Shock Resistance

Vibration Resistance

Operating extremes:

10 to 55Hz, amplitude 0.35mm

Damage limits: 30Hz, amplitude 1.5mm

Actuator Operating

Speed

0.05 to 1.0 m/s

Direct Opening Travel

11mm minimum

Direct Opening Force

50N minimum

Actuator Retention

Force when Locked

3000N minimum (GS-ET-19)

Operating Frequency

900 operations per hour

Mechanical Durability

1,000,000 operations minimum (GS-ET-19)

Electrical Durability

100,000 operations minimum

(AC-15 3A/250V)

1,000,000 operations minimum

(24V AC/DC, 100mA)

(operating frequency 900 operations per hour)

Conditional Short-circuit

Current

100A (250V) (Use 250V/10A fast acting type

fuse for short-circuit protection.)

Weight (approx.)

450g (HS1L-DQ44)

Ratings

•ContactRatings

Rated Insulation Voltage (Ui)

300V

Rated Operating Current (Ith)

10A

Rated Operating Voltage (Ue)

30V

125V

250V

Rated

Operating

Current

(Ie)

AC

Resistive Load (AC-12)

10A

10A

6A

Inductive Load (AC-15)

10A

5A

3A

DC

Resistive Load (DC-12)

8A

2.2A

1.1A

Inductive Load (DC-13)

4A

1.1A

0.6A

Minimum applicable load (reference value): 3V AC/DC, 5mA

•

(Applicable range may vary with operating conditions and load types.)

TÜV rating: AC-15 3A/250V, DC-13 4A/30V

•

UL, c-UL rating: A300

Pilot duty: AC 3A/250V

Pilot duty: DC 4A/30V

•SolenoidUnitandLEDIndicator

Lock Mechanism

Spring Lock

Solenoid Lock

Solenoid

Rated Operating

Voltage

24V DC (100% duty cycle)

Rated Current

200 mA (initial value)

Coil Resistance

120Ω(at20°C)

Pickup Voltage

Rated voltage × 85% max. (at 20°C)

Dropout Voltage

Rated voltage × 10% max. (at 20°C)

Maximum Continuous

Applicable Voltage

Rated voltage × 110%

Maximum Continuous

Applicable Time

Continuous

Insulation Class

Class F

LED

Rated Operating

Voltage

24V DC

Rated Current

10 mA

Light Source

LED

Illumination Color

Green (G), Red (R)

Parts and Functions

Circuit Code

Main Circuit Monitor Circuit

R: 1NC+1NC

1NC/1NO, 2NC

DQ: 1NC+1NC/ 1NO, 1NO

1NC+1NC

DT: 1NC+1NC/ 1NC, 1NC

1NC+1NC

HS1L-DQ44KMSRP-R

Part Number Guide

LED Rated Voltage

4: 24V DC

LED Color

G: Green

R: Red

Conduit Port Size

Blank: 1/2

P:

PG13.5

M:

M20

Housing Color

R: Red and Black

Locking Strength

MS: 3000N

Manual Unlocking

Key

K: With key

Solenoid Unit Voltage/

Lock Mechanism

4: 24V DC/Spring Lock

7Y: 24V DC/Solenoid Lock

Terminal

Block (M3)

Actuator Entry Slots

(Two)

Conduit Port

Contact

Mechanism (M3)
