Datasheet

CW-RCL Series

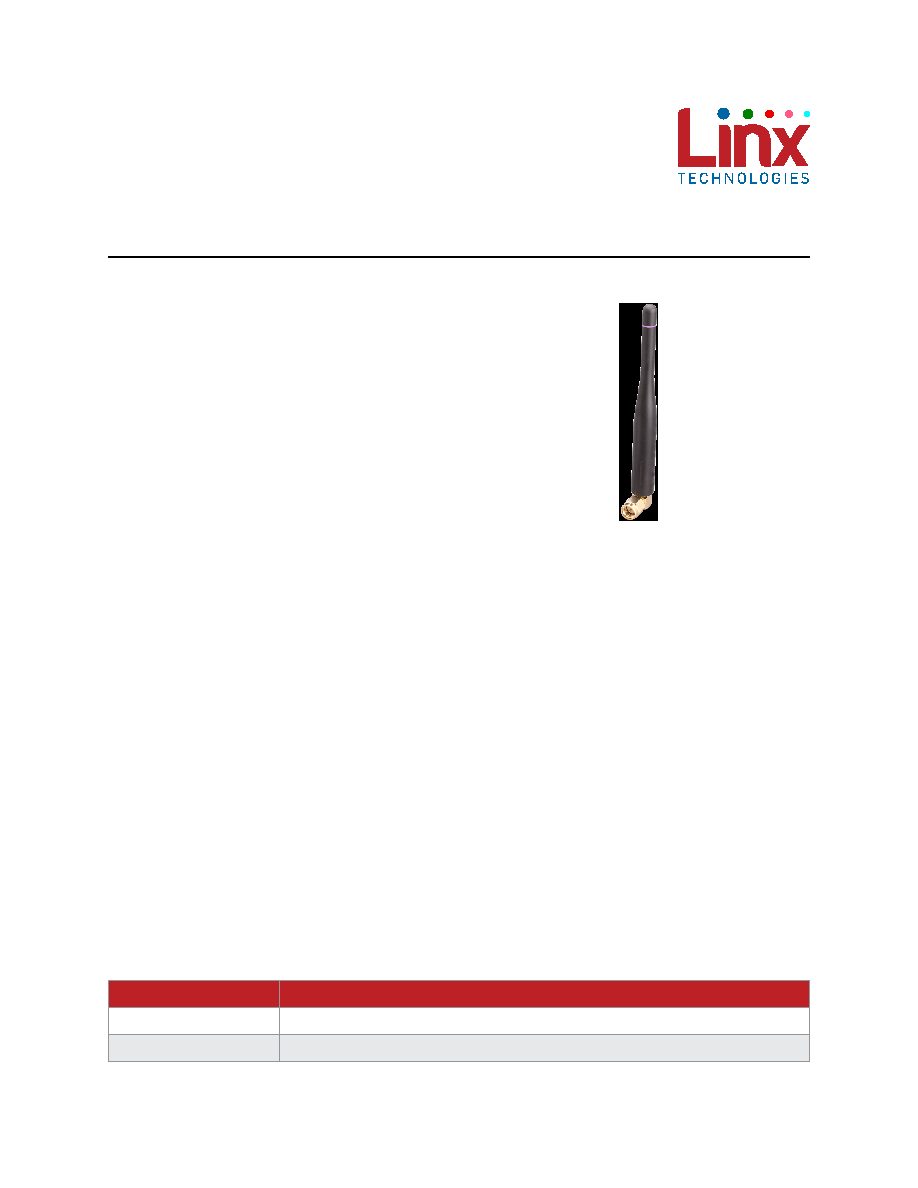

2.4 GHz Right-Angle Whip Antenna

Features

• Performance at 2.4 GHz to 2.485 GHz

― VSWR: ≤ 1.5

― Peak Gain: 2.3 dBi

― Efficiency: 77%

• Compact size

― 97.7 mm x 18.7 mm x 10.5 mm

• Rotating base allows for optimal positioning

• SMA plug (male pin) or RP-SMA plug (female

socket)

The ANT-2.4-CW-RCL antenna is designed for 2.4

GHz WiFi/WLAN and ISM applications including

The right-angle rotating design of the ANT-2.4-CW-

RCL antenna allows for the antenna to be positioned

for optimum performance.

The ANT-2.4-CW-RCL antenna is available with an

SMA plug (male pin) or RP-SMA plug (female socket)

connector for FCC Part 15 compliant applications.

Applications

• Single-band WiFi/WLAN

― 802.11b/g

• ISM applications

― IEEE 802.15.4

• Internet of Things (IoT) devices

• Sensing and remote monitoring

• Smart Home networking

Ordering Information

Part Number

Description

ANT-2.4-CW-RCL-SMA

2.4 GHz right-angle whip antenna with SMA plug (male pin)

ANT-2.4-CW-RCL-RPS

2.4 GHz right-angle whip antenna with RP-SMA plug (female socket)

Available from Linx Technologies and select distributors and representatives.
