3

Datasheet

ANT-2.4-CW-RCL-ccc

VSWR

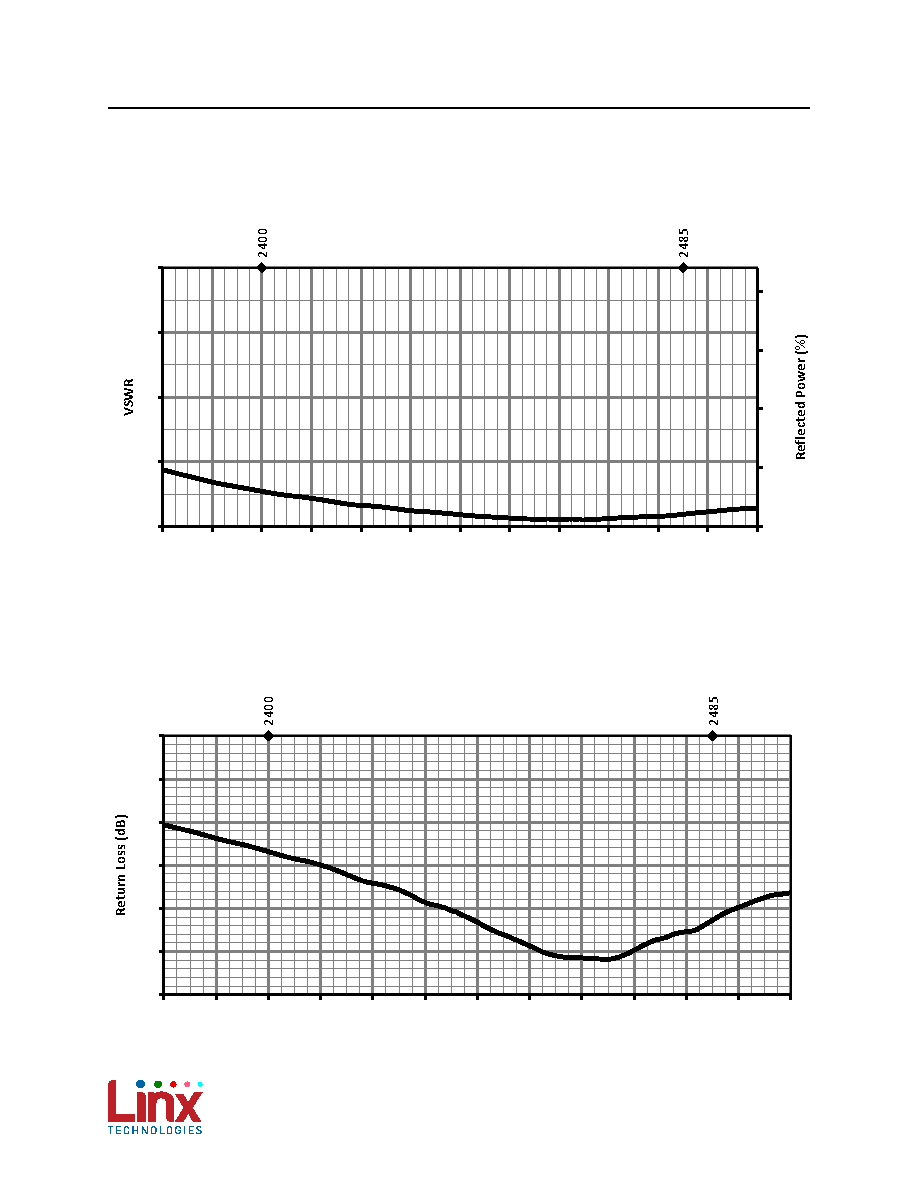

Figure 2 provides the voltage standing wave ratio (VSWR) across the antenna bandwidth. VSWR describes

the power reflected from the antenna back to the radio. A lower VSWR value indicates better antenna

performance at a given frequency. Reflected power is also shown on the right-side vertical axis as a gauge of

the percentage of transmitter power reflected back from the antenna.

0

10

20

30

40

1

2

3

4

5

2380 2390 2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500

Frequency (MHz)

Figure 2. ANT-2.4-CW-RCL VSWR

Return Loss

Return loss (Figure 3), represents the loss in power at the antenna due to reflected signals. Like VSWR, a

lower return loss value indicates better antenna performance at a given frequency.

-30

-25

-20

-15

-10

-5

0

2380

2390

2400

2410

2420

2430

2440

2450

2460

2470

2480

2490

2500

Frequency (MHz)

Figure 3. ANT-2.4-CW-RCL Return Loss
