│ SERIES: MPB05 │ DESCRIPTION: MINI PUSH BUTTON SWITCH

date 06/03/2021

│ page 2 of 3

9.38

4.5

3.3

8.6

0.3t

2.5

2.5

4.3

4.3

2.54

9.38

4.5

5.4

8.6

0.3t

2.5

2.5

6

5.08

0.6

1.2

4.3

4.3

0.4

2.54

2.54

2.54

5.08

7- 0.8

5.1

2.8

6.3

EPOXY

SEAL

EPOXY

SEAL

1

23

4

5

6

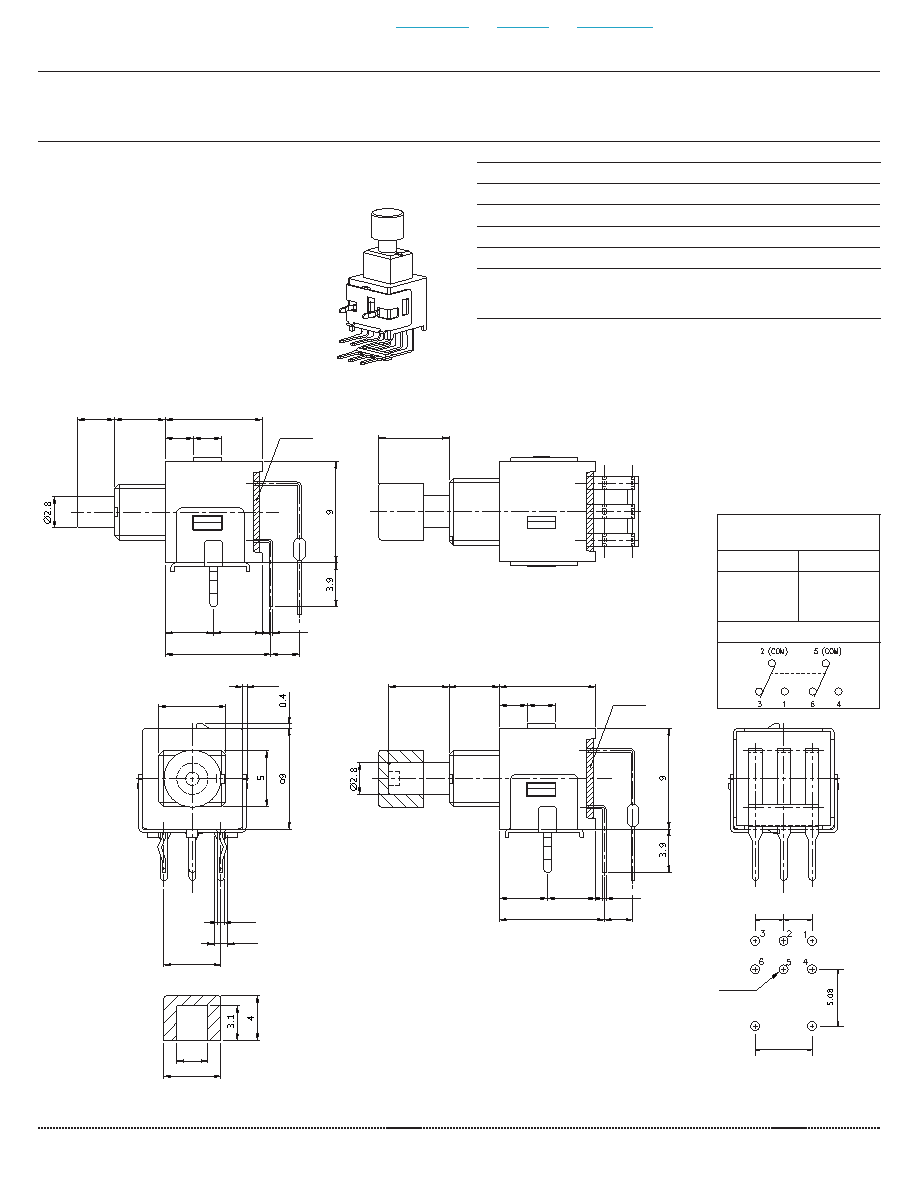

MECHANICAL DRAWING (DPDT CIRCUIT)

units: mm

tolerance: ±0.3 mm

unless otherwise noted

ITEM DESCRIPTION

MATERIAL

PLATING/COLOR

1

actuator

POM (UL94HB)

white

2

housing

PA66 (UL94V-0)

black

3

terminals

brass

gold

4

bracket

phosphor bronze

tin

5

cap

POM (UL94HB)

black (BK)

red (R)

white (WT)

Recommended PCB Layout

Top View

3.3 MM ACTUATOR

5.4 MM ACTUATOR

ACTUATOR POSITION

( ): MOMENTARY

NORMAL

DOWN

ON

2-3

5-6

(ON)

2-1

5-4

SCHEMATIC

Note: *Actuator cap only on 5.4 mm actuator height versions.

ACTUATOR CAP

Additional Resources: Product Page | 3D Model | PCB Footprint
