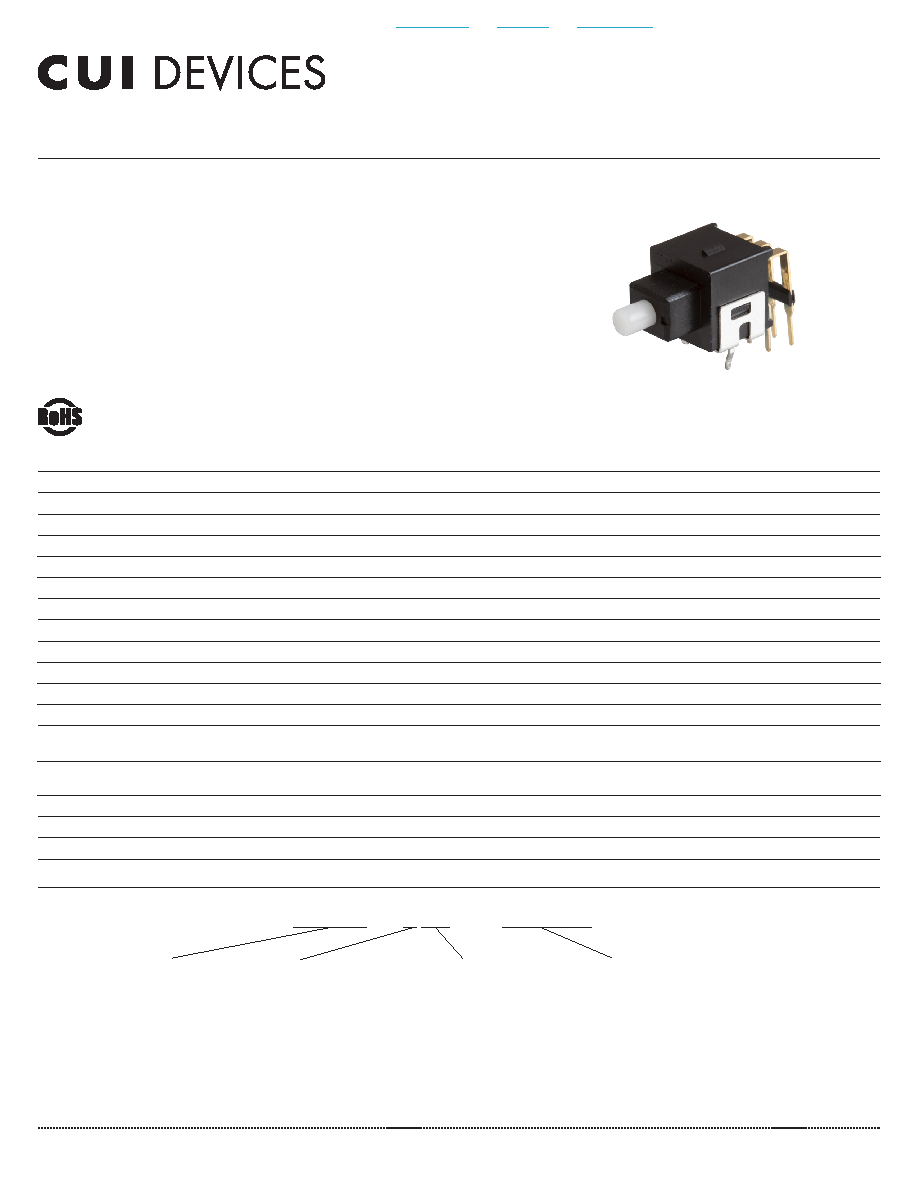

date 06/03/2021

page 1 of 3

cuidevices.com

SERIES: MPB05

│ DESCRIPTION: MINI PUSH BUTTON SWITCH

FEATURES

• double pole

• right angle

• cap options

SPECIFICATIONS

parameter

conditions/description

min

typ

max

units

rated voltage

28

Vdc

rated current

14

mA

withstanding voltage

for 1 minute

500

Vac

contact resistance

50

mΩ

insulation resistance

at 500 Vdc

500

MΩ

operating force

250

350

450

gf

actuator travel

1.1

mm

operating temperature

-25

80

°C

life

20,000

cycles

flammability rating

see material table

RoHS

yes

packaging

tray QTY: 100 pcs per tray

box QTY: 1,200 pcs per box

SOLDERABILITY

parameter

conditions/description

min

typ

max

units

hand soldering

for maximum 3 seconds

350

°C

wave soldering

for maximum 5 seconds

270

°C

Note: *Actuator cap only on 5.4 mm actuator height versions.

PART NUMBER KEY

Base Number

MPB05 - 2 X XX - R - XXX - XX - D

Circuit Type:

C = DPDT: ON-(ON)

Actuator Height:

33 = 3.3 mm

54 = 5.4 mm

*Actuator Cap Color:

“blank” = Without Cap

CAP-BK = Black

CAP-R = Red

CAP-WT = White

Additional Resources: Product Page | 3D Model | PCB Footprint
