Features

ƒ Rockchip ARM Cortex-A17 RK3288 Quad core up to 1.6GHz

ƒ Onboard 2GB DDR3L memory and 8GB eMMC

ƒ Support 4K H.264/H.265 Video decoding, OpenVG1.1, OpenGL

ES1.1/2.0/3.0, OpenCL1.1, DrectX11.

ƒ Support HDMI 3840 x 2160 at 60Hz, VGA 1920 x 1200 at 60Hz

ƒ 6 UART, 5 USB2.0, 1 USB OTG, 1GbE, 8GPIO

ƒ Support M.2 slot for WIFI/BT module, Mini-PCIe slot for 4G module

ƒ Support Linux and Android

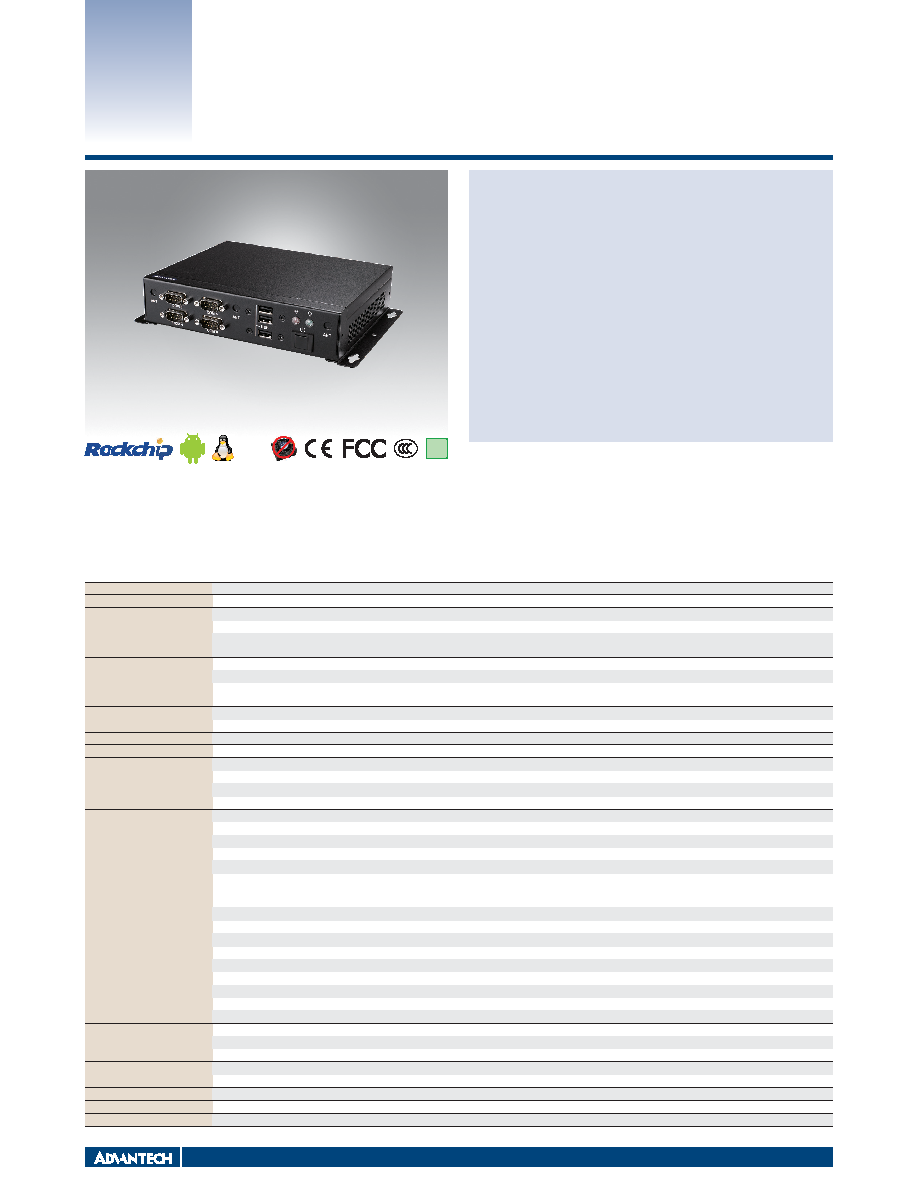

EPC-R4680

Rockchip RK3288 Cortex-A17 ARM

Based Box Computer

Introduction

EPC-R4680 is an ARM based Box Computer powered by Rockchip ARM Cortex-A17 RK3288 Quad core high performance processor, which supports 4K display and 4Kx2K multi-

format video decoding via HDMI. It also features M.2, Mini-PCIe and SIM card slots for WIFI, BT and 4G connectivity. EPC-R4680 also offers rich interfaces such as 6 USB2.0, 6

UART, 1 GbE and 8 GPIO. It is an ideal solution for Kiosk,Vending machine and Digital signage application.

Specifications

Form Factor

ARM-based Box Computer

Processor

CPU

Memory

Technology

DDR3L 1333MHz

Capacity

On-board 2GB DDR3L

Flash

8GB eMMC NAND Flash for OS and Advantech boot loader

4MB SPI NOR Flash

Graphics

HDMI

1 HDMI, 3840 x 2160 at 60Hz

VGA

1 VGA, up to 1920 x 1200 at 60Hz

H/W Video Codec

Encode: H.264 (BP@level4.0, MP, HP@level4.0), MVC and VP8

Decode: MPEG-1, MPEG-2, MPEG-4,H.263, H.264, AVS, VC-1, VP8, MVC, HEVC/H.265 decoder, 4k@60FPS

Ethernet

Chipset

TI DP83867

Speed

1 10/100/1000 Mbps

RTC

Yes

WatchDog Timer

Yes

Expansion

SD socket

1 x Micro SD slot

M.2

1 x M.2 2230 Key.E

mini PCIe

1 x Full size mini PCIe slot (USB signal only)

SIM

1 x SIM slot

I/O

SATA

-

SATA Power

-

USB

5 x USB Type A, 1 x USB OTG

Audio

1 x line-out, 1 x mic-in

SPDIF

-

Serial Port

1 x 4-wire RS-232/485

1 x 2-wire RS-232/Debug port, pin header selected by jumper

4 x 4-wire RS-232

SPI

1 x SPI by pin header

CAN

-

GPIO

8 x GPIO via D-SUB 9 (3.3V TTL level)

System Bus

-

Touch

-

I/R

-

LED

1 x Power LED, 1 x 4G LED

Button

1 x Power button, 1 x Reset button

Power

Power Supply Voltage

12V

Power Type

DC-in

Power Consumption

TBD

Environment

Operational Temperature

0 ~ 55° C

Operating Humidity

5% ~ 95%

Mechanical

Dimensions (W x D)

190 x 150 x 43 mm

Operating System

Android/Linux

Certifications

CCC/CE/FCC Class B

RoHS

COMPLIANT

2002/95/EC

All product specifications are subject to change without notice.

Last updated: 19-Dec-2018
