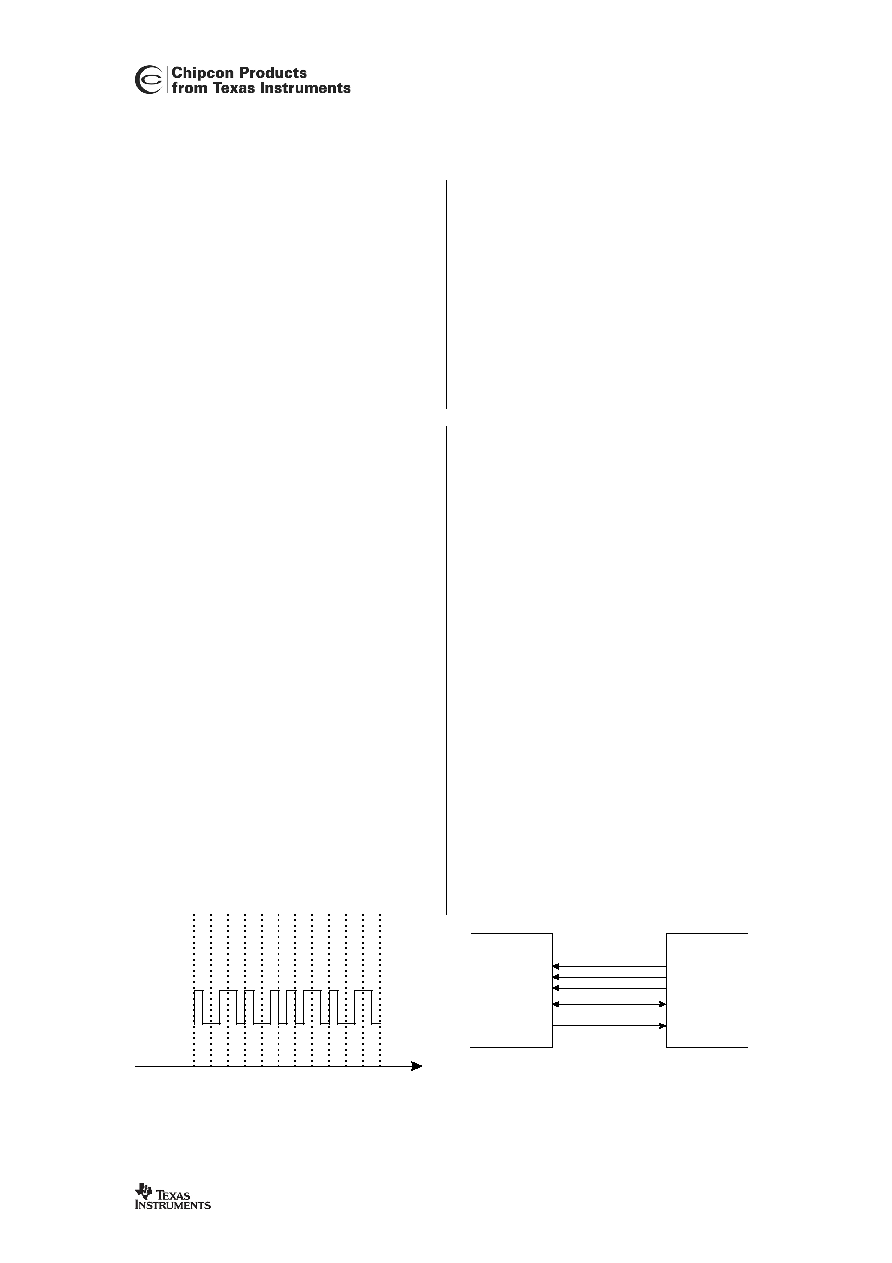

13 / 31 page  CC400 SWRS050 Page 13 of 32 15. Microcontroller Interface Used in a typical system, CC400 will interface to a microcontroller. This microcontroller must be able to: • Program the CC400 into different modes via the 3-wire serial interface (PDATA, STROBE, CLOCK). • Operate with the bidirectional data pin DIO. • Perform oversampling of the de- modulator output (on pin DIO), recover the clock corresponding to the actual datarate, and perform data quali- fication (on Manchester encoded data). • Data to be sent must be Manchester encoded. • Optionally the microcontroller can monitor the frequency lock status from pin LOCK. • Optionally the microcontroller can perform precharging of the receiver in order to reduce the turn-on time (see p.21). 15.1. Connecting the microcontroller The microcontroller uses 3 output pins for the serial interface (PDATA, STROBE and CLOCK). A bi-directional pin is used for data to be transmitted and data received (DIO). Optionally another pin can be used to monitor the LOCK signal. This signal is logic level high when the PLL is in lock. See Figure 7. 15.2. Data transmission The data to be sent has to be Manchester encoded (also known as bi-phase-level coding). The Manchester code ensures that the signal has a constant DC component that is necessary for the FSK demodulator. The Manchester code is based on transitions; a “0” is encoded as a low-to-high transition, a “1” is encoded as a high-to-low transition. See Figure 6. When the DIO is logic level high, the upper FSK frequency is transmitted. The lower frequency is transmitted when DIO is low. Note that the receiver data output is inverted when using low-side LO, which is default using SmartRF Studio. 15.3. Data reception The output of the demodulator (DIO) is a digital signal (alternating between 0 V and VDD). For small input signals, there will be some noise on this signal, located at the edges of the digital signal. The datarate of this signal may be up to 9.6 kbps. Due to the Manchester coding, the fundamental frequency of the signal is also 9.6 kHz. An oversampling of 4-8 times the frequency of the demodulator-output is recommended. I.e. the sampling frequency should be at least 40-80 kHz for 9.6 kbps. For a lower datarate the sampling frequency can be reduced. In a typical application the data output is sampled by the microcontroller, and stored in an accumulating register. The length of this register will typically be 4-8 bits (depending on the oversampling ratio). The qualification of the data (decide whether the signal is “0” or “1”) can be based on comparing the number of 0’s with the number of 1’s. See Application Note AN008 “Oversampling and data decision for the CC400/CC900” for more details. Time TX data 1 0 1 1 0 0 0 1 1 0 1 Figure 6: Manchester encoding. Figure 7: Microcontroller interface. CC400 PDATA CLOCK STROBE DIO LOCK Micro- controller |
|
