Online Download

Packing List

Part Number

Description

-

1 x ARK-10 Unit

-

1 x User Manual (Simplified Chinese)

96PSA-A36W12W7-5

1 x AC to DC adapter DC 12V/3A 36W

Part Number

Description

20706WX9ES0092

Windows 10 IoT Enterprise 2019 LTSC 64bit 1809 ENU

* Default BIOS is supported for 64-bit OS installation, BIOS for 32-bit OS is supported by project.

Optional Items

Part Number

Description

1700001524

Power Cable 3-pin 180cm, USA type

170203183C

Power Cable 3-pin 180cm, Europe type

170203180A

Power Cable 3-pin 180cm, UK type

1700008921

Power Cable 3-pin PSE Mark 183cm

AMK-V003E

ARK-112X series VESA mounting kit

AMK-R001E

ARK-112X series DIN-rail mounting kit

AMK-W001E

ARK-112X series Wall mounting kit

Ordering Information

Part Number

CPU

RAM

VGA

GbE USB 2.0 USB 3.0 RS-232/

422/485 Audio

MiniPCIe 2.5" HDD

bay

mSATA Operating

Temperature

ARK-10-U0A4

Intel Atom

J1900 QC

2GB Built In 1

2

2

1

2

Line in

Line out 1 Full-size

1 x 500G

2.5" 24x7

HDD Built In

1 (H/S)

0 ~ 50 °C

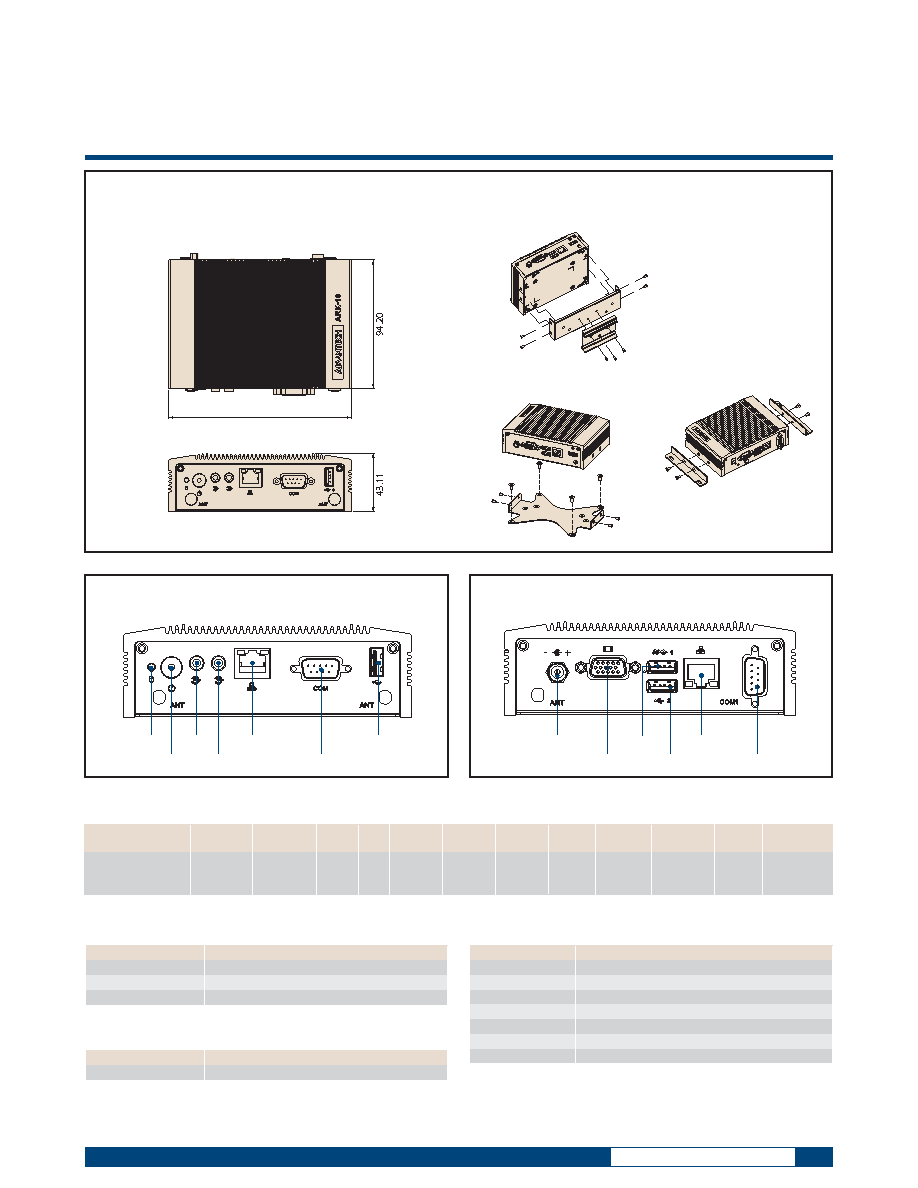

Dimensions

Unit: mm

Rear Panel External I/O Mechanical Layout/Drawing

Front Panel External I/O Mechanical Layout/Drawing

DIN Rail

VESA mount

Wall mount

133.80

On/Off

Line in

Line out

LAN

COM

USB2.0

HDD LED

DC 12V

USB3.0

LAN

COM

DC Input

USB2.0

VGA

ARK-10 A4
