MEGA BRIGHT LED

BTL-54NRC-XX-X

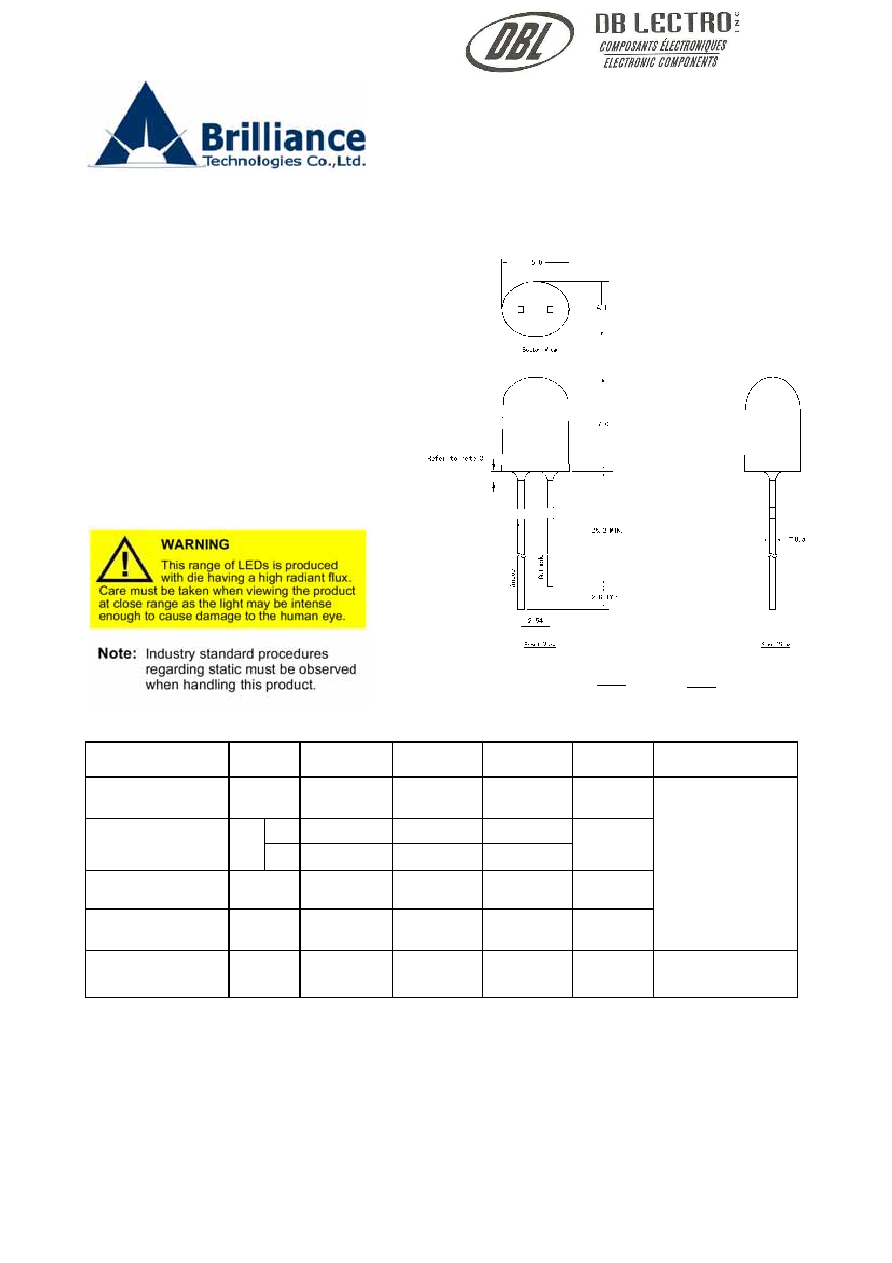

Package Dimension

Product Features

Ultra Bright Normal Red Color

High Light Output

5X4mm Diameter Elliptical Package

Water Clear Lens

Highly Reliable

IC Compatible

Leads without Stand Off

Applications

Ful Color Display

Automotive

Front Panel Indicator

Special Lighting

General Purpose LEDs

Tolerance:

±

Unit:

±

Optical and Electrical Characteristics at Ta=25℃

Parameter

Symbol Minimum

Typical

Maximum

Units

Conditions

Luminous

Intensity

Iv

－

2500

－

mcd

X

－

70

－

Viewing Angle

2θ

1/2

y

30

deg

Dominant

Wavelength

λ

D

620

630

635

nm

DC Forward

Voltage

VF

1.9

－

2.5

V

IF = 20mA

(Note 1)

(Note 2)

DC Reverse

Current

IR

0

－

10

µA

VR=5V

Notes:

1. Light intensity measures the light sensing response standard using chromatic meter. Refer to the CIE

eye-response curve set by International Lighting committee.

Tolerance of minimum and maximum

intensity = ± 15%

2. Wavelength range can be selected from the bin selection table. Tolerance of minimum and

maximum = ± 2nm

3. These products are sensitive to static electricity and care must be fully taken when handling

products

inch

mm

0.01

0.25

Page 1 of 3

DB LECTRO Inc. 3600 boul. Matte suite i Brossard Qc J4Y-2Z2 tel:(450)-444-1424 fax:(450)-444-4714 www.dblectro.com
