DLLFSD01LP3

ULTRA LOW LEAKAGE SURFACE MOUNT FAST SWITCHING DIODE

Features



Ultra-Small Leadless Surface Mount Package (0.6 x 0.3mm)



Ultra-Low Profile Package (0.3mm)



Fast Switching Speed, Fast Reverse Recovery Time



Ultra-Low Reverse Leakage Current (~ 5nA @ VR = 5V)



Very Low Capacitance (<1pF @ VR=0V)



Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)



Halogen and Antimony Free. “Green” Device (Note 3)

Mechanical Data



Case: X3-DFN0603-2



Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0



Moisture Sensitivity: Level 1 per J-STD-020



Terminal Connections: Cathode Bar



Terminals: Finish

— Matte Tin Finish over Copper Leadframe



(Lead-Free Plating). Solderable per MIL-STD-202, Method 208



Weight: 0.0002 grams (Approximate)

Ordering Information (Note 4)

Part Number

Compliance

Case

Packaging

DLLFSD01LP3-7

Standard

X3-DFN0603-2

10,000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2

. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-

free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

A1 = Product Type Marking Code

Bar Denotes Cathode Side

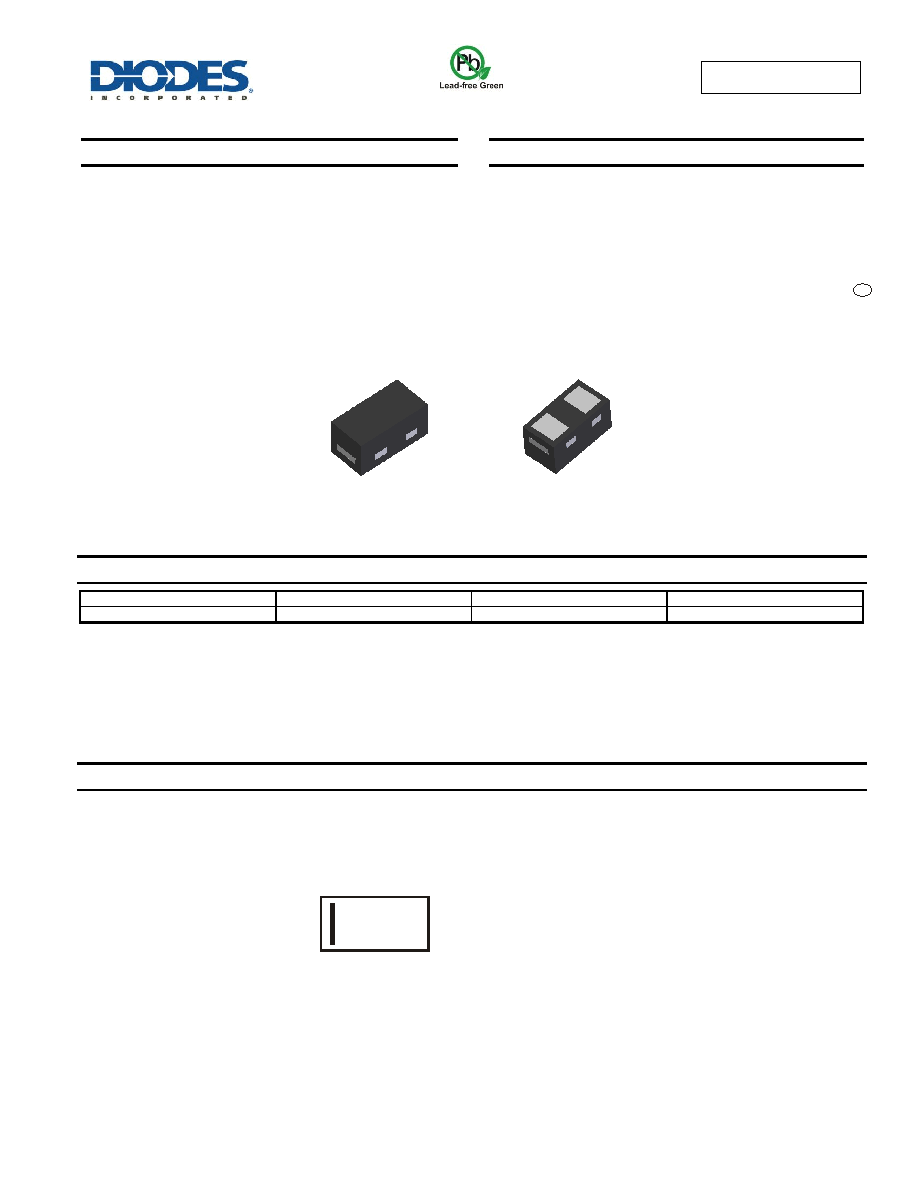

Top View

Bottom View

A1

e3

X3-DFN0603-2

X3-DFN0603-2
