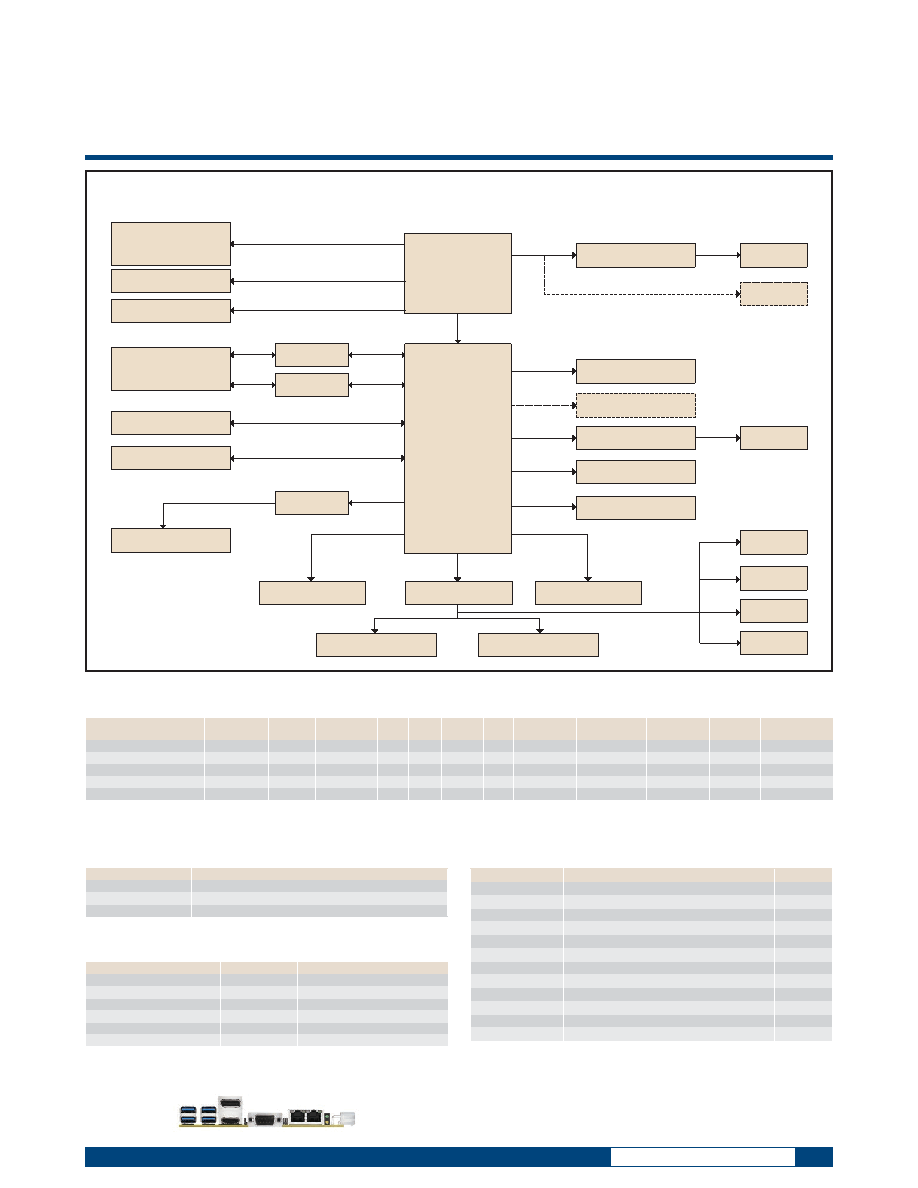

Block Diagram

MIO-5393

Ordering Information

Part No.

CPU

Core

Max.

Frequency

TDP

vPro

PCH

ECC

LVDS/eDP1

M.2 Slot

Extension2

Power

Connector3

Thermal

Solution

Operating

Temperature

MIO-5393RE6C-U8A1

E-2276ME

6

4.5 GHz

45W

Yes

CM246

Yes

LVDS

B-key + E-key

2x2 pin

Active

0 ~ 60 °C

MIO-5393RC7Q-U7A1

i7-9850HE

6

4.4 GHz

45W

Yes

QM370

No

LVDS

B-key + E-key

2x2 pin

Active

0 ~ 60 °C

MIO-5393RC7Q-S9A1

i7-9850HL

6

4.1 GHz

25W

Yes

QM370

No

LVDS

B-key + E-key

2x2 pin

Passive

0 ~ 60 °C

MIO-5393C5Q-U5A1

i5-8400H

4

4.2 GHz

45W

Yes

QM370

No

LVDS

B-key + E-key

2x2 pin

Active

0 ~ 60 °C

MIO-5393RE6CX-U8A1

E-2276ME

6

4.5 GHz

45W

Yes

CM246

Yes

LVDS

B-key + E-key

2x2 pin

Active

-40 ~ 85°C

1. eDP is supported by request

2. M.2 M-key +E-key is supported by request

3. DC-Jack with lock is supported by request

Optional Accessories

Part No.

Description

1960094211T001

Active Cooler (65mm height)

1970004423N100

Heat Spreader

1700030406-01

Internal 2 ports USB cable 20CM

Embedded OS/API

OS

Part No.

Description

Win10 (High End for Xeon/Core i7)

20706WX9HS0051

img W10 19HL MIO-5393 64b 1809 ENU

Win10 (Value for Core i5/i3)

20706WX9VS0055

img W10 19VL MIO-5393 64b 1809 ENU

Ubuntu (Desktop 20.04 LTS)

20706U20DS0000

img Ubun20.4 MIO-5393 64b 2004 ENU

Software API

N/A

SUSI 4.0/iManager 3.0

Software API

N/A

WISE-PaaS/DeviceOn

Software API

N/A

Edge AI Suite

Rear I/O View

Packing List

Part No.

Description

Quantity

MIO-5393 SBC

1

2046539300

Startup Manual

1

1700006291

SATA cable

1

1700018785

SATA Power cable

1

1700019584

Audio cable

1

1700030404-01

COM cable

1

1970004482T000

QFCS Cooler (TDP 45W SKU ; 43mm height)

1

19Z0001957N001

CPU bracket for Passive Heatsink (TDP 25W SKU)

1

1960094210N000

Passive Heatsink (TDP 25W SKU)

1

Mini Jumper pack (10pcs)

1

Screw kit (2pcs for M.2 device)

1

Screw Kit (4 sets of screw & stand-off)

1

*Function block with dotted line support by request

Nano SIM

48-bit LVDS

eDP

(4k@60Hz)

CAN Bus

SMBus

I2C

2 x 8-bit GPIO

Intel Coee Lake-H

Mobile CPU

256MB BIOS

EIO-IS201

TPM 2.0

Intel Cannon Lake

Mobile PCH-H

CM246 (support ECC)

QM370

2 x DDR4 SODIMM

2400MHz dual channel

up to 64G*

2 x GbE

PTN3460

DDI x1

DDI x1

DDR channel

2 x USB 3.1 Gen2

2 x USB 3.1 Gen2

Line-in/Out/MIC

COM1 RS-232/422/485

COM2 RS-232/422/485

eDP

M.2 Key E

PCIe x 1 (Gen.3)

USB2.0 x 1

M.2 Key M

PCIe x 4 (Gen.3)

SATA III x 1

M.2 Key B

PCIe x 2 (Gen.3)

SATA III x 1

USB2.0 x 1

2 x SATA III

MIOe

SATA III x 2

DDI x 1, 4 PCIe x1,

USB3.0/2.0

LPC, SMBUS, Rest,

Line out, Power on

I210

PCIe x1

DMI 3.0

Audio Codec

I219

PCIe x1

SPI

LPC

SPI

DP 1.2 (DP++) (4k@60Hz)

HDMI 1.4 (4k@30Hz)
