MI/O Extension SBCs, Modules and Chassis

Features

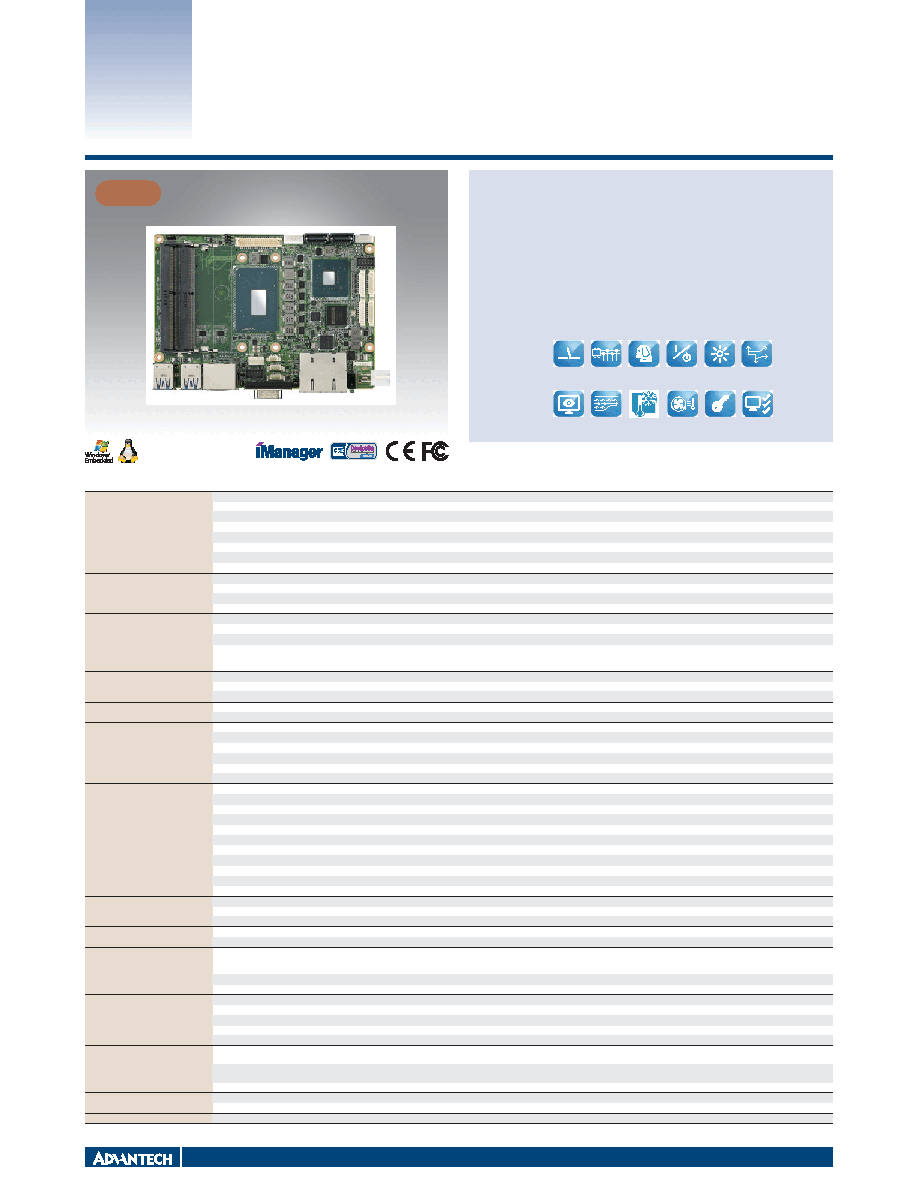

MIO-5393

9th/8th Gen. Intel® Xeon®/Core™

Processor, 3.5" SBC w/ MIOe

ƒ

9th/8th Gen. Intel® Xeon®/Core™ Processor, up to 6 cores, and TDP 45W/25W

ƒ

Dual channel DDR4-2400, up to 64GB*, ECC for Xeon SKU

ƒ

Triple simultaneous displays with 48-bit LVDS+HDMI+DP

ƒ

USB 3.1 Gen2 (10 Gbps), TPM 2.0 & NVMe/PCIe Gen3x4 SSD

ƒ

Dual GbE, SATAIII, RS-232/422/485, CANBus, SMBus, I2C

ƒ

M.2 B-Key 2280/3042, (optional M-Key 2280) & M.2 E-Key 2230

ƒ

Supports iManager, SUSI APIs, WISE-DeviceOn and Edge AI Suite

Specifications

Platform

Processor

E-2276ME

i7-9850HE

i7-9850HL

i5-8400H

Max. Frequency

4.5 GHz

4.4 GHz

4.1 GHz

4.2 GHz

Base Frequency

2.8 GHz

2.7 GHz

1.9 GHz

2.5 GHz

Core/Tread

6C/12T

6C/12T

6C/12T

4C/8T

Last Level Cache

12MB

9MB

9MB

8MB

CPU TDP

45W

45W

25W

45W

Chipset

CM246

QM370

QM370

QM370

BIOS

AMI UEFI 256Mbit

Memory

Technology

DDR4-2400

Max. Capacity

Up to 64GB *Support with selected memory module

Channel/Socket

Dual Channel 260P SO-DIMM (1 DIMM per Channel)

ECC Support

Yes

No

No

No

Graphics

Controller

Intel Gen 9 low power graphics

Max. Frequency

1150 MHz

1150 MHz

1150 MHz

1100 MHz

Base Frequency

350 MHz

350 MHz

350 MHz

350 MHz

3D/HW Acceleration

3D: DX 2015/11.2/11.1/10/9 ; OpenGL4.5; OpenCL 2.0/1.2/1.0

HW Decode: AVC/H264, VC1/WMV9, MPEG2, HEVC/H265 (8/10 bits), VP8, JPEG/MJPEG, VP9

HW Encode: AVC/H264, MPEG2, HEVC/H265, VP8, JPEG, VP9

Display I/F

LCD

1 x LVDS Dual Channel 24-bit, up to WUXGA 1920 x 1200 at 60Hz; *Optional, eDP 1.4, support up to 4096x2304 @ 60Hz

HDMI/DP

1 x HDMI 1.4a. Support up to 4096x2160 @ 30 Hz; 1 x DP 1.2, Support up to 4096x2304 @ 60Hz

Multiple Display

Triple simultaneous displays with 48-bit LVDS/eDP + HDMI + DP

Ethernet

Controller

LAN1: Intel i219, LAN2: Intel i210

Speed

10/100/1000 Mbps

External I/O

Ethernet

2 x RJ-45

VGA/HDMI/DP

-/1/1

USB3.1

4 (USB3.1 Gen.2)

COM Port

1 x RS-232/422/485

LED

Power status, HDD R/W

Power DC-Jack

Optional

Internal I/O

SATA

2 x SATA GenIII 6.0Gbps

USB2.0

2

Serial Bus

1 x SMBus; 1 x I2C

COM Port

1 x RS-232/422/485

GPIO

2 x 8-bit general purpose input/output

Audio

Realtek ALC888S, High Definition Audio (HD), Line-in, Line-out, Mic-in

Invertor

3.3/5/12V for VDD power, 5/12V for inverter

LPC/SPI Bus

LPC for EC & SPI for BIOS & TPM 2.0

CAN Bus

1

Fan

1 x 4-Wire Smart Fan,12V@2A

Front Panel Control

Power LED, HD LED, Reset, Power Switch, Case Open, Buzzer

Board Feature

Watchdog Timer

65536 level, 0~65535 sec

TPM

TPM2.0 (Infineon SLB9670)

iManager 3.0

Software APIs for Power Monitor, CPU Temp., Smart Fan, GPIO, WDT, SMBus, I2C, Backlight & Brightness Control, CANBus

Storage

NVMe

1, PCIe Gen.3 x4 with optional M-key 2280

SATA

2, up to 6Gb/s (600 MB/s)

Expansion

M.2

1 x E-Key (PCIe x1, USB 2.0) - M.2 2230 WiFi/BT module

1 x B-Key (PCIe Gen.3 x2, SATA Gen.3, USB2.0) - M.2 2280 SSD module or M.2 3042 4G/LTE module (with nano SIM slot and bracket)

*Optional, M-Key (PCIe Gen.3 x4, SATA Gen.3) - M.2 2280 NVME/PCIE Gen.3x4 SSD module

mPCIe/mSATA

-

MI/O Extension

DDI x 1, 4 PCIe x1, USB3.0, USB2.0, LPC, SMBus, Line-out, Power-on, Reset

Power

Supply Voltage

Vin: DC 12V ± 10%; RTC Battery: Lithium 3V/210mAH

Connector

ATX 2x2 pin 90D, optional DC-Jack with lock or ATX 2x2 pin 180D

Power Management

AT, ATX

Max. Consumption

102.75W

95.38W

44.55W

74.44W

Idle Consumption

11.55W

11.55W

11.55W

11.55W

Environment

Temperature

Operating: Standard: 0 ~ 60 °C (32 ~ 140 °F); Extend: -40 ~ 85 °C (-40 ~ 185 °F)

Storage: -40 ~ 85 °C (-40 ~ 185 °F)

Humidity

Operating: 40 °C @ 95% relative humidity, non-condensing

Storage: 60 °C @ 95%relative humidity, non-condensing

Vibration Resistance

3.5 Grms

Certification

EMC

CE, FCC

Safety

-

Mechanical

Dimensions

146 x 102 mm (5.7” x 4”)

Software APIs:

GPIO

SMBus/I2C Watch Dog

Timer

Backlight

On/Off

Brightness

Hardware

Monitor

System

Thro�ling

Thermal

Protec�on

CAN bus

Smart Fan

Data

Security

System Info

NEW

All product specifications are subject to change without notice.

Last updated: 1-Sep-2021
