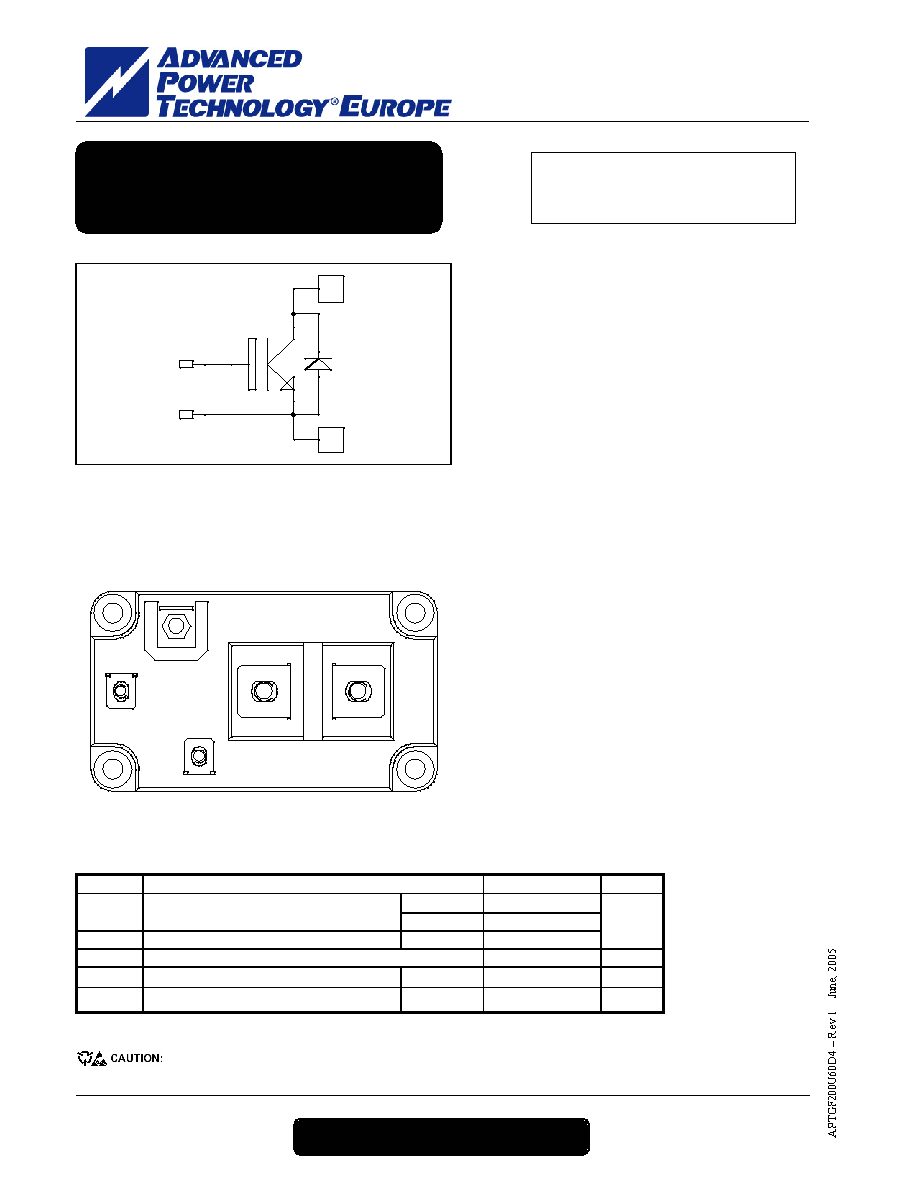

APTGF200U60D4

APT website – http://www.advancedpower.com

1 - 5

Absolute maximum ratings

Symbol

Parameter

Max ratings

Unit

VCES

Collector - Emitter Breakdown Voltage

600

V

TC= 25°C

250

IC

Continuous Collector Current

TC= 80°C

200

ICM

Pulsed Collector Current

TC= 25°C

400

A

VGE

Gate – Emitter Voltage

±20

V

PD

Maximum Power Dissipation

TC= 25°C

735

W

RBSOA

Reverse Bias Safe Operation Area

Tj = 125°C

400A@420V

These Devices are sensitive to Electrostatic Discharge. Proper Handing Procedures Should Be Followed.

3

5

2

1

5

3

4

1

2

VCES = 600V

IC = 200A @ Tc = 80°C

Application

•

Welding converters

•

Switched Mode Power Supplies

•

Uninterruptible Power Supplies

•

Motor control

Features

•

Non Punch Through (NPT) fast IGBT

-

Low voltage drop

-

Low tail current

-

Switching frequency up to 50 kHz

-

Soft recovery parallel diodes

-

Low diode VF

-

Low leakage current

-

Avalanche energy rated

-

RBSOA and SCSOA rated

•

Kelvin emitter for easy drive

•

Low stray inductance

-

M6 connectors for power

-

M4 connectors for signal

•

High level of integration

Benefits

•

Outstanding performance at high frequency

operation

•

Stable temperature behavior

•

Very rugged

•

Direct mounting to heatsink (isolated package)

•

Low junction to case thermal resistance

•

Easy paralleling due to positive TC of VCEsat

Single switch

NPT IGBT Power Module
