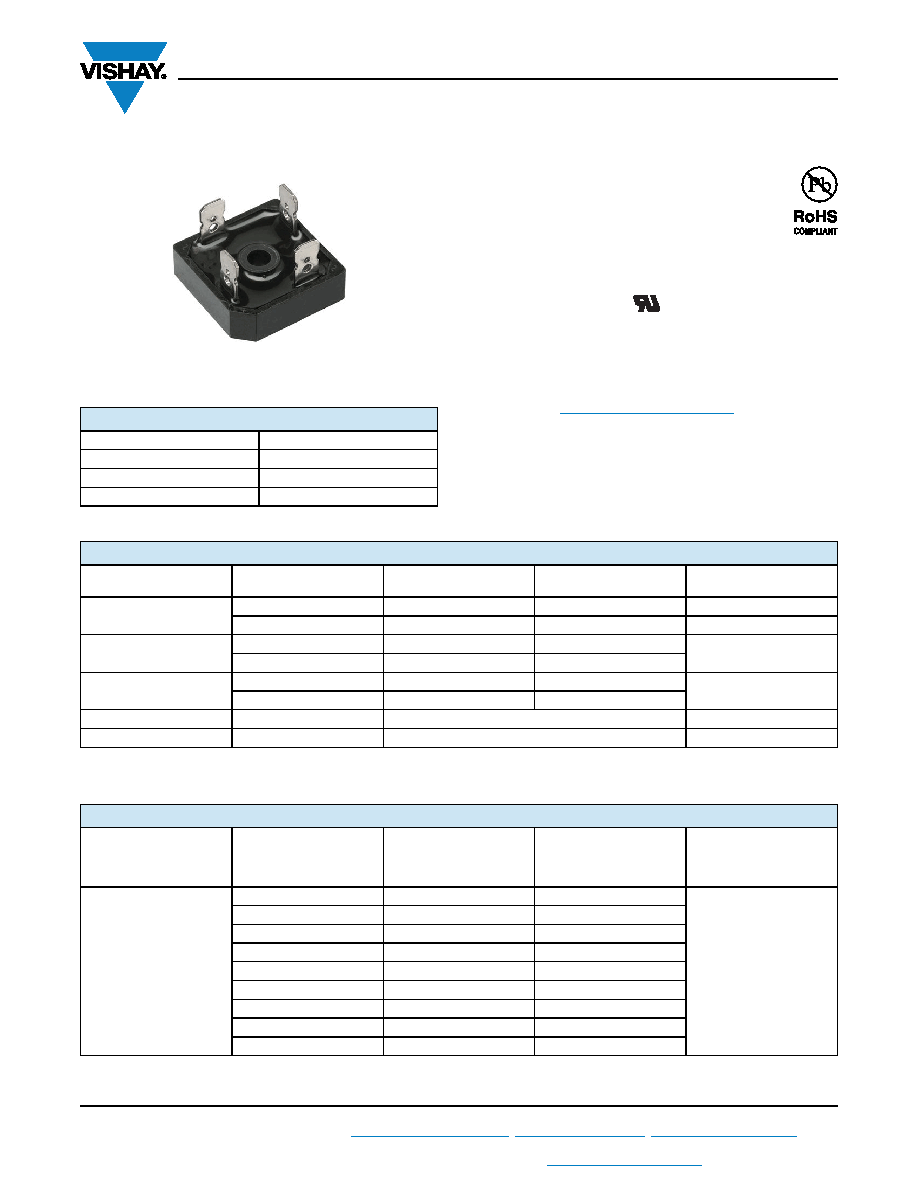

VS-MB Series

www.vishay.com

Vishay Semiconductors

Revision: 15-Jan-2019

1

Document Number: 93563

For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

Single Phase Bridge Rectifier, 25 A, 35 A

FEATURES

• Universal, 3 way terminals:



push-on, wrap around, or solder

• High thermal conductivity package, electrically

insulated case

• Center hole fixing

• Excellent power/volume ratio

• UL E300359 approved

• Nickel plated terminals solderable using lead (Pb)-free

solder;

solder

alloy

Sn/Ag/Cu

(SAC305);

solder

temperature 260 °C to 275 °C

• Designed and qualified for industrial level

• Material categorization: for definitions of compliance

please see www.vishay.com/doc?99912

DESCRIPTION

A range of extremely compact, encapsulated single phase

bridge rectifiers offering efficient and reliable operation.

They are intended for use in general purpose and

instrumentation applications.

ELECTRICAL SPECIFICATIONS

PRIMARY CHARACTERISTICS

IO

25 A, 35 A

VRRM

200 V to 1200 V

Package

D-34

Circuit configuration

Single phase bridge

D-34

MAJOR RATINGS AND CHARACTERISTICS

SYMBOL

CHARACTERISTICS

VALUES

26MB..A

VALUES

36MB..A

UNITS

IO

25

35

A

TC

65

60

°C

IFSM

50 Hz

400

475

A

60 Hz

420

500

I2t

50 Hz

790

1130

A2s

60 Hz

725

1030

VRRM

Range

200 to 1200

V

TJ

-55 to +150

°C

VOLTAGE RATINGS

TYPE NUMBER

VOLTAGE

CODE

VRRM, MAXIMUM

REPETITIVE PEAK

REVERSE VOLTAGE

V

VRSM, MAXIMUM

NON-REPETITIVE PEAK

REVERSE VOLTAGE

V

IRRM MAXIMUM

AT TJ MAXIMUM

26MB..A,



36MB..A

05

50

75

2

06

60

100

10

100

150

20

200

275

40

400

500

60

600

725

80

800

900

100

1000

1100

120

1200

1300
