IR Receiver Modules for Remote Control Systems

LINKS TO ADDITIONAL RESOURCES

DESCRIPTION

The TSOP372..H, TSOP374..H series are miniaturized

receiver modules for infrared remote control systems. A PIN

diode and a preamplifier are assembled on a PCB, the

epoxy lens cap contains an IR filter.

The TSOP374..H series devices are optimized to suppress

almost all spurious pulses from energy saving lamps like

CFLs. The AGC4 used in the TSOP374..H may suppress

some data signals. The TSOP372..H series are provided

primarily for compatibility with old AGC2 designs. New

designs should prefer the TSOP374..H series containing the

newer AGC4.

These components have not been qualified according to

automotive specifications.

FEATURES

• Very low supply current

• Photo detectors and preamplifier in one package

• Internal filter for PCM frequency

• Supply voltage: 2.5 V to 5.5 V

• Improved immunity against ambient light

• Insensitive to supply voltage ripple and noise

• External metal shield

• Material categorization:

for

definitions

of

compliance

please

see

www.vishay.com/doc?99912

ORDERING CODE

Taping:

TSOP37...TT1 - top view taped, 1800 pcs/reel

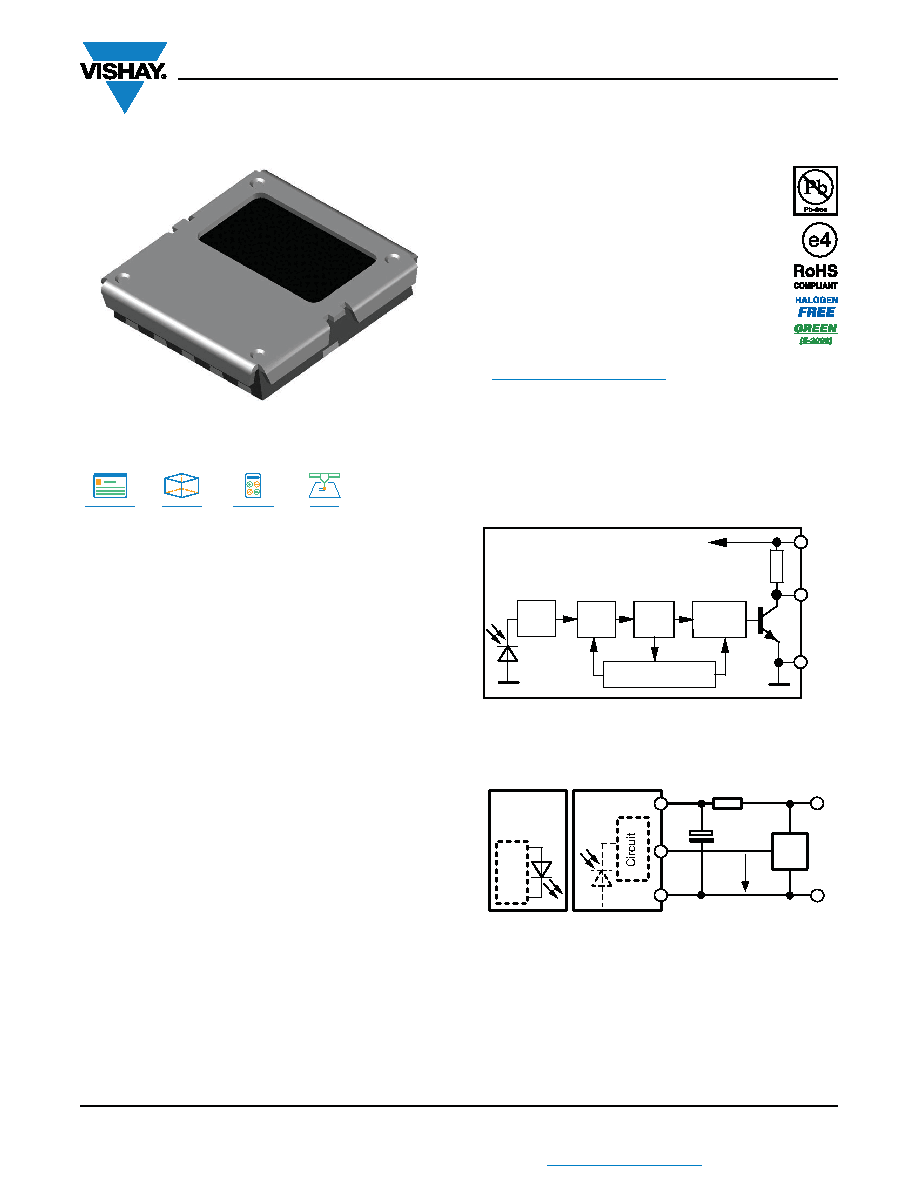

BLOCK DIAGRAM

APPLICATION CIRCUIT

22594

22594

Product Page

333

DDD3 D

3D Models

Calculators

Marking

30 k

Ω

V

S

OUT

Demo-

GND

pass

AGC

Input

PIN

Band

dulator

Control circuit

4, 5

1

2, 3,

6, 7, 8

20445-5

C1

IR receiver

GND

μC

R1

+ VS

GND

Transmitter

with

TSALxxxx

VS

VO

17170-11

OUT

R

1 and C1 recommended to reduce supply ripple for VS < 2.8 V
