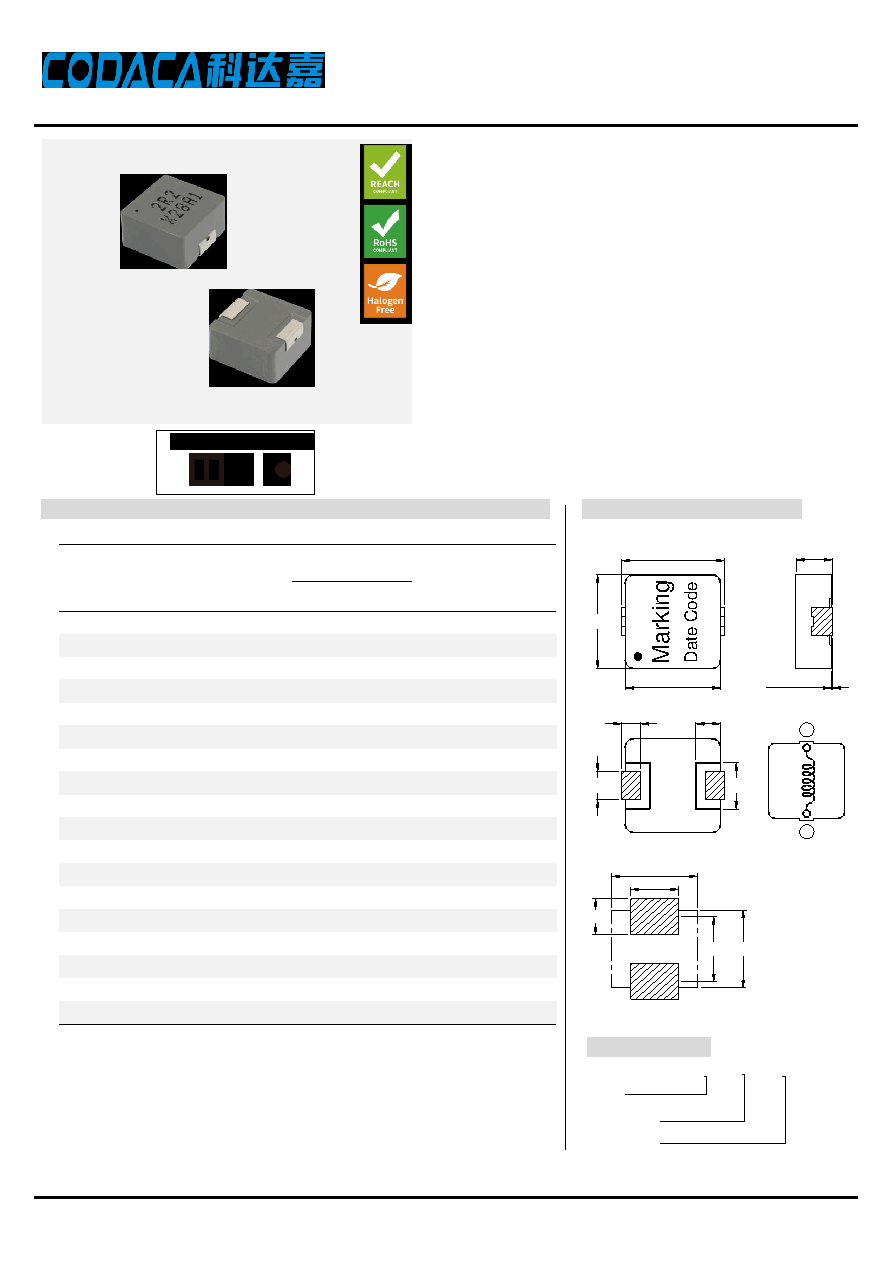

Molding Power Choke

CSAC0530 Series

This product is not authorized for use in any application related to safety.

Specification subject to change without notice. Please check web site for latest information.

Revised: 07/14/2020

Outline

:

▪ Magnetic shielded structure:excellent resistance to electro

Magnetic interference (EMI)

▪ A composite structure,ultra low buzz noise

▪ Die-casting by low loss carbonyl powder:

low impedance, small parasitic capacitance.

▪ Lightweight design save space,suitable for high density SMT

Features：

▪ Core material:Carbonyl Powder

▪ Core and winding loss:

See https://www.codaca.com/DesignTool_Power-Inductor-Loss-

Comparison.html

▪ Enviromental: RoHS,Reach compliant ,Halogen free

▪ Weight:0.42g

▪ Moisture Sensitivity:Level (MSL) 1

(unlimited floor life at 5

～40℃, RH≤ 70% relative humidity).

▪ Operating temperature range: -40℃～+125℃

(including coil

’s self temperature rise)

▪ Storage temperature range: -40℃～+125℃

Application：

▪ DC /DC converters for entertainment/navigations systems

▪ Noise suppresion for motors:windshield wipers/power seats/Power

Mirrors/heating and ventilation blower/ HID lighting

1 Electrical Characteristics

2 Product Dimensions (mm)

Part No.

Inductance

(μH)※1

D.C.R. (mΩ)

Isat

(A)※2

Irms

(A) ※3

2.85±0.25

0.15Max.

2.2±0.3

2.5

1.2±0.2

1.5

5.25±0.25

5.45±0.35

5.25±0.25

1

2

（3.0）

（2.5）

（4.5）

（5.4）

（5.4）

±20%

Typical

Max.

Typical

Typical

CSAC0530-R10M

0.10

2.80

3.20

33.0

23.0

CSAC0530-R22M

0.22

4.20

4.60

23.0

15.5

CSAC0530-R33M

0.33

5.30

5.80

20.0

13.7

CSAC0530-R47M

0.47

6.90

7.80

14.0

11.0

CSAC0530-R68M

0.68

9.30

12.0

13.0

9.50

CSAC0530-R82M

0.82

10.2

13.0

13.0

9.30

CSAC0530-1R0M

1.00

13.3

14.6

12.5

8.50

CSAC0530-1R2M

1.20

14.8

16.2

11.2

7.50

CSAC0530-1R5M

1.50

17.0

23.0

10.8

6.80

CSAC0530-2R2M

2.20

28.0

33.0

9.50

5.80

CSAC0530-3R3M

3.30

40.5

48.0

8.00

5.00

CSAC0530-4R7M

4.70

61.4

69.5

7.80

4.00

CSAC0530-5R6M

5.60

76.5

88.0

4.50

3.50

CSAC0530-6R8M

6.80

83.4

102

4.30

3.20

CSAC0530-8R2M

8.20

117

135

4.20

2.80

CSAC0530-100M

10.0

138

156

4.00

2.50

CSAC0530-150M

15.0

248

278

3.50

1.90

CSAC0530-220M

22.0

290

348

3.00

1.70

All data is tested on 25

℃ ambient temperature

1.Inductance measure condition at 100kHz,1.0V

2.Isat:the actual value of DC current when the inductance decrease 20% of its initial value

3.Irms:the actual value of DC current when the temperature rise is

ΔT40℃(Ta=25℃)

3 How to Order:

CSAC0530-R10M

Model

Dimensions

Value Code

Typical Pad Layout
