Molding Power Choke

CSAC0530 Series

This product is not authorized for use in any application related to safety.

Specification subject to change without notice. Please check web site for latest information.

Revised: 07/14/2020

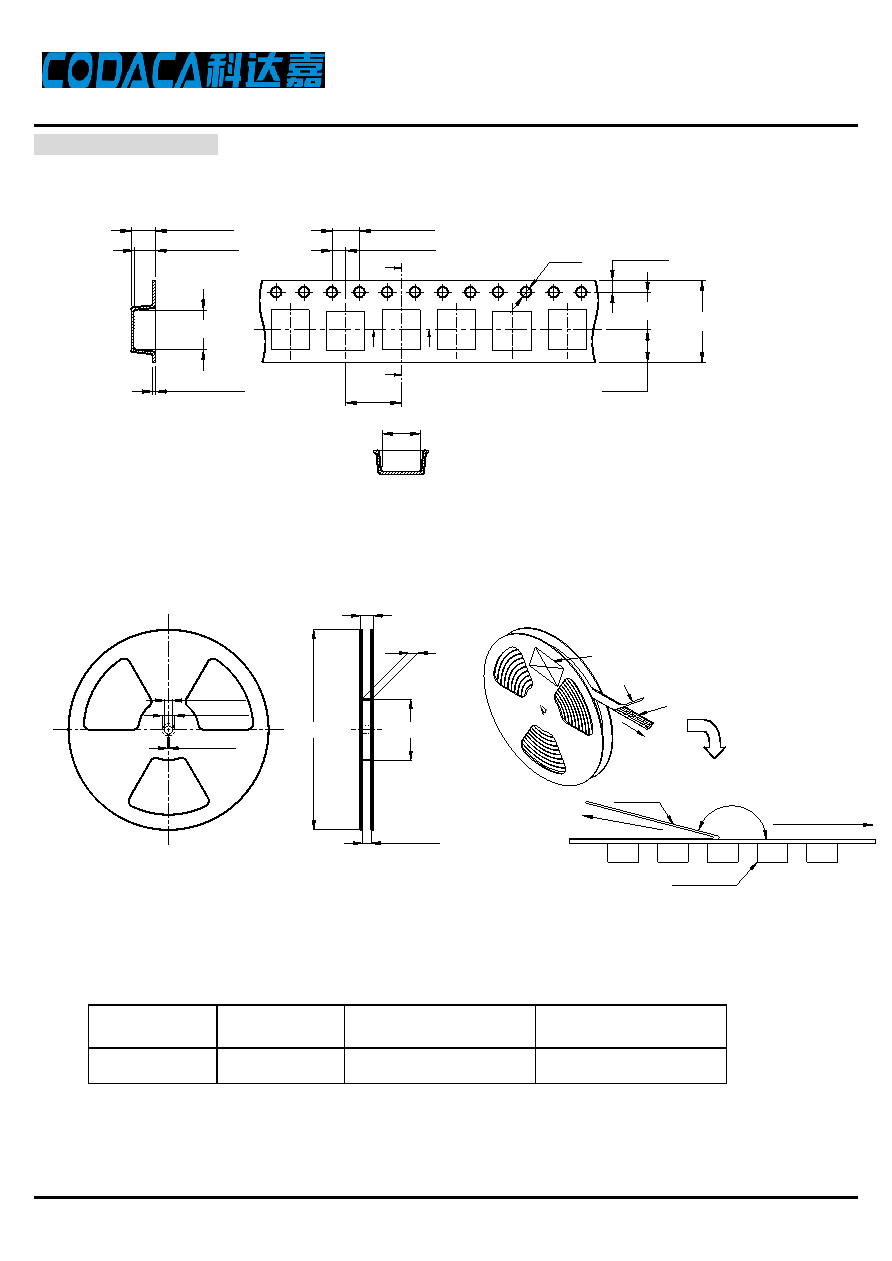

7 Packing Specification

7.1 Carrier Tape Dimensions (mm)

Φ1.5

2.0±0.1

4.0±0.1

1.75±0.1

+0.1

-0

A-A

8.0±0.1

A

B

A

12.0±0.3

5.5±0.1

（4.75）

B

0.35±0.05

B-B

5.6±0.1

3.20±0.1

3.40Ref

5.5±0.1

※ Packing is referred to the international standard IEC 60286-3.

7.2 Reel Dimensions (mm)

100 Min.

21.0±0.8

13.0±0.5

2.0±0.5

W1

12.4

18.4Max

W2

330±2.0

11.9Min

W3

+2.0

-0

7.3 Carton Dimensions and Packing Quantity

■ Inner Carton

：340×340×95mm

■ Outer Carton

：360×360×370mm

Product Series

Quantity / Reel

Inner Carton Quantity

Outer Carton Quantity

CSAC0530

2000pcs

(2000

×4) = 8000pcs

(8000

×3) = 24000pcs

Cover tape peeling off condition

■ Cover tape peeling force shall be 0.1 to 1.3N.

■Reference peeling speed 300±10mm/min.

Label

Cover tape

Sprocket hole

Unreeling direction

165°~180°

Carrier tape

Unreeling direction

Cover tape

Pull direction
