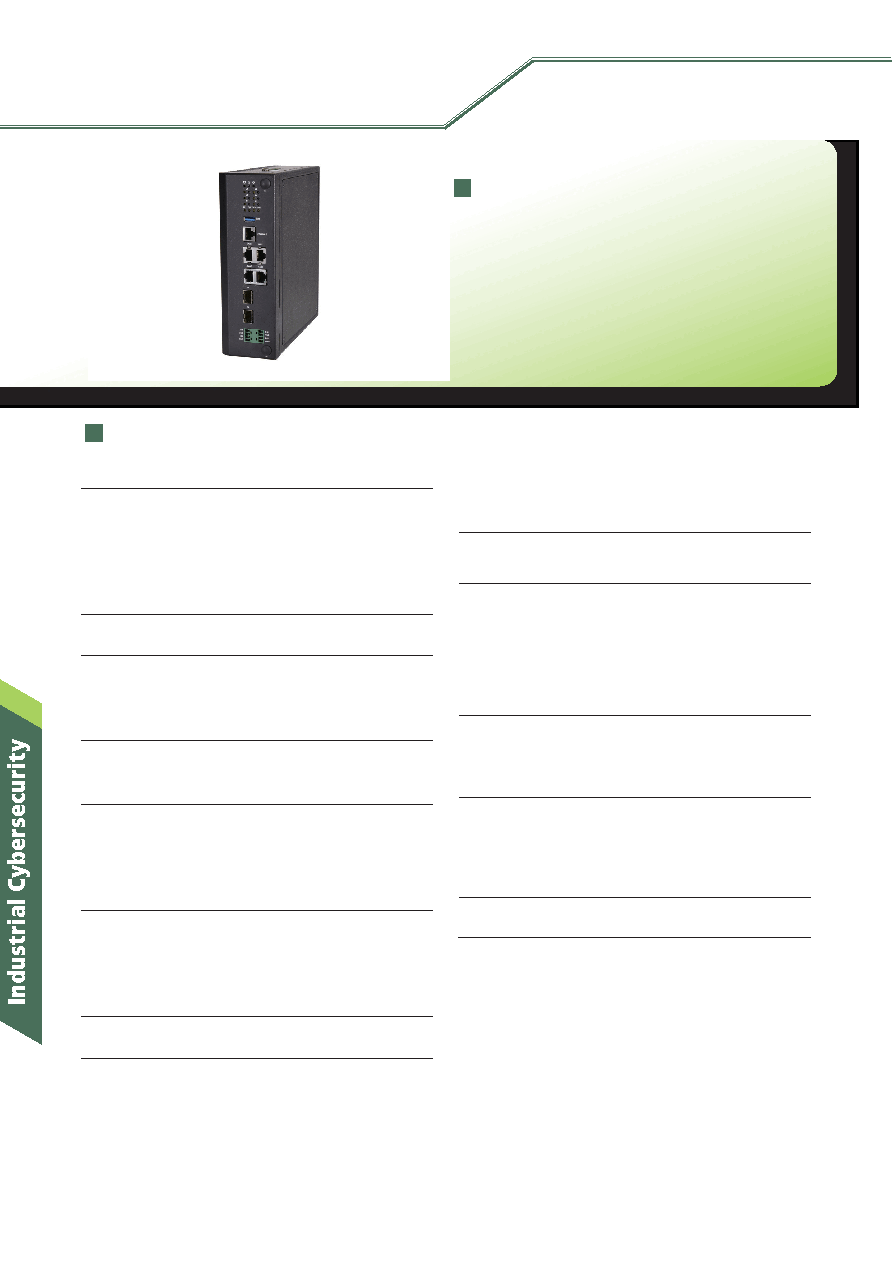

ICS-P570

IEC 61850-3 Wide Temperature

Industrial Cybersecurity Gateway

Features

Preliminary Specifications

• Comply with IEC 61850-3 and IEEE 1613

• AMD Ryzen V1404I

• 6x GbE RJ45 or 4x GbE RJ45 + 2x GbE SFP

• RJ45 LAN Support one pair LAN bypass

• Front-access I/O: RJ45 Console, USB 3.0 and 2x DIO ports

• Optional LTE module support

• Dual +12~48Vdc Power Input

• Wide Operating Temperature -40~70ºC

Processor System

CPU

AMD Ryzen V1404I

Frequency

Max: 3.6 GHz, Base: 2GHz

Core Number

4

BIOS

AMI SPI Flash BIOS

Chipset

SoC

Fanless

Yes

Memory

Technology

DDR4, 2400 MHz

Max. Capacity

32 GB

Socket

2 x 260-pin SODIMM

Graphic

Controller

Vega 8 Graphics

Interface

1 x internal HDMI pin-header

Ethernet

Controller

Intel i210-IT / i210IS

Speed

RJ45: 100M/1G/2.5Gbps, SFP: 1 Gbps

Interface

6 x GbE RJ45 or 4 x GbE RJ45 + 2x GbE SFP

Bypass

1 pair LAN Bypass by RJ45

Storage

Type

SATA

Installation

1 x M.2 M Key 2242

Type

SD

Installation

1 x Micro SD reader

Expansion

1x M.2 B-Key 3042 for LTE module, with dual Nano-SIM

I/O

Console Port

1x RJ45 console

DIO

2 x Isolated DIO

USB

1x USB 3.0

Power-On/Reset Button

Reset button

TPM

Onboard TPM 2.0

LED

1x POWER/STATUS/HDD LED (3 LEDs)

2x LEDs per eth ports (total 12 LEDs)

1x LED per DI or DO (total 4 LEDs)

Watchdog Timer

Watchdog timer 256 level time interval system reset, software program-

mable

Power

Power Supply Voltage

Dual +12~48Vdc

Connector

Phoenix contact 6-pin connector with lock

Power Consumption (Idle)

TBD

Power Consumption (Full

Load)

TBD

Power Adaptor

None

Environment

Operating Temperature

-40 ~ 70ºC

Storage Temperature

-40 ~ 85ºC

Relative Humidity

5% ~ 95%, non-condensing

Mechanical

Dimension (W x H x D)

65 x 201 x 196 mm

Construction

Aluminum + SGCC

Weight

2.5 kg

Mounting

DIN rail mount, optional wall mount

Driver Support

Linux

Linux Kernel 2.6X or later

Certification

EMC

FCC/CE Class A, UL (IEC-62368)

Others

IEC 61850-3, IEEE 1613

lmages are for refernce only. See ordering information for SKU details.
