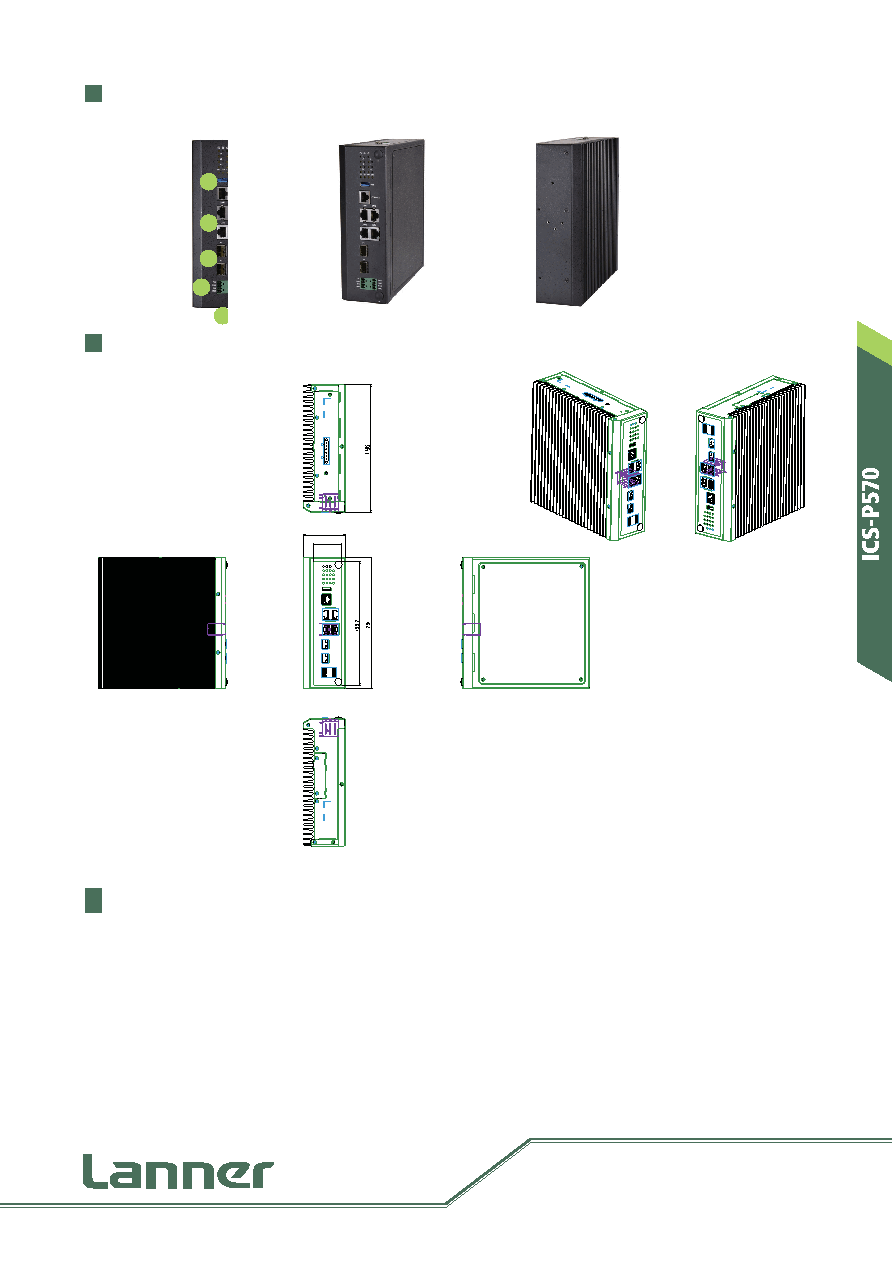

Product I/O View

Dimensions (W x H x D): 65 x 201 x 196 mm

ICS-P570A

AMD V1404I support 2x DRAM channels + 6x Intel i210-IT GbE LAN with 1 pair bypass + 1x M.2 for SATA Storage + 1x M.2 for LTE + 1x

external USB 3.0 + 2x DI & 2xDO via one 4x2(8P) terminal block +1 x RJ45 console + 1x internal SD card reader + 2x DC input via one 6P

terminal block.

ICS-P570B

AMD V1404I support 2x DRAM channels + 4x Intel i210-IT GbE LAN with 1 pair bypass + 2x Intel i210-IS SFP ports + 1x M.2 for SATA

Storage + 1x M.2 for LTE + 1x external USB 3.0 + 2x DI & 2xDO via one 4x2(8P) terminal block +1 x RJ45 console + 1x internal SD card

reader + 2x DC input via one 6P terminal block.
