Data Sheet PL10186EJ03V0DS
9
NX8564/8565/8566LE Series

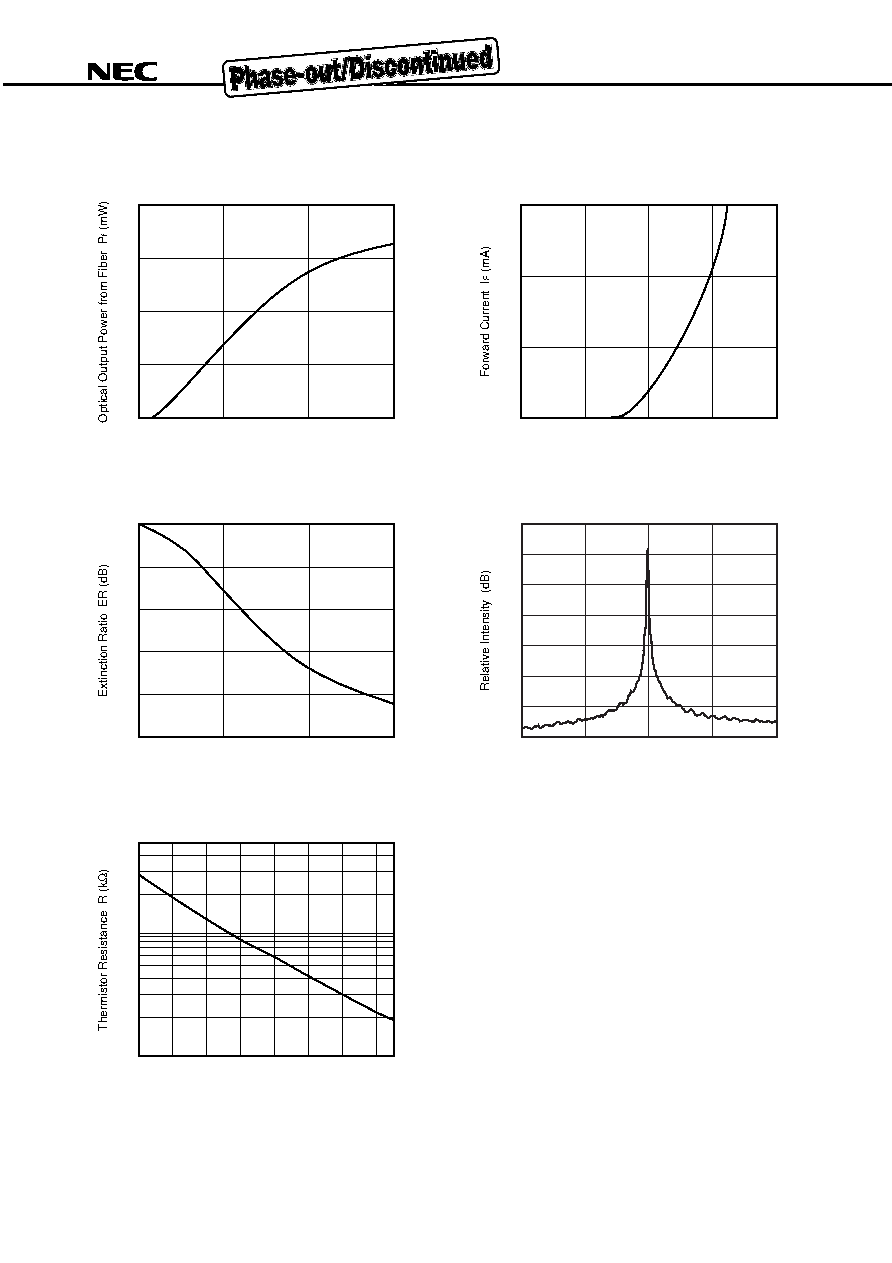

TYPICAL CHARACTERISTICS (TLD = Tset, TC = 25
°C, unless otherwise specified)
4.0
3.0
2.0
1.0
0
50
100
150
0
5
10
15
20
25
0
12
3
Forward Current IF (mA)
OPTICAL OUTPUT POWER FROM
FIBER (CW) vs. FORWARD CURRENT
EXTINCTION RATIO vs.
MODULATOR VOLTAGE
Reverse Voltage of Modulator VREA (V)
2.0
1.5
1.0
0.5
0
50
100
150
FORWARD CURRENT vs.
FORWARD VOLTAGE
Forward Voltage VF (V)
50
30
20
10
1
2
3
5
060
50
75
10
20
70
30
40
Ambient Temperature TA (˚C)
THERMISTOR RESISTANCE vs.
AMBIENT TEMPERATURE
SPECTRUM
Wavelength
λ (nm)
–10
–30
–50
–70
0
–20
–40
–60
1 540.0
1 550.0
1 560.0
1 555.0
1 545.0
Remark The graphs indicate nominal characteristics.
