TYPICAL CHARACTERISTICS

0

5

10

300

400

500

600

700

800

900

1000

1100

Wavelength (nm)

0

1

300

400

500

600

700

800

900

1000

1100

Wavelength (nm)

CM500 TRANSMISSION

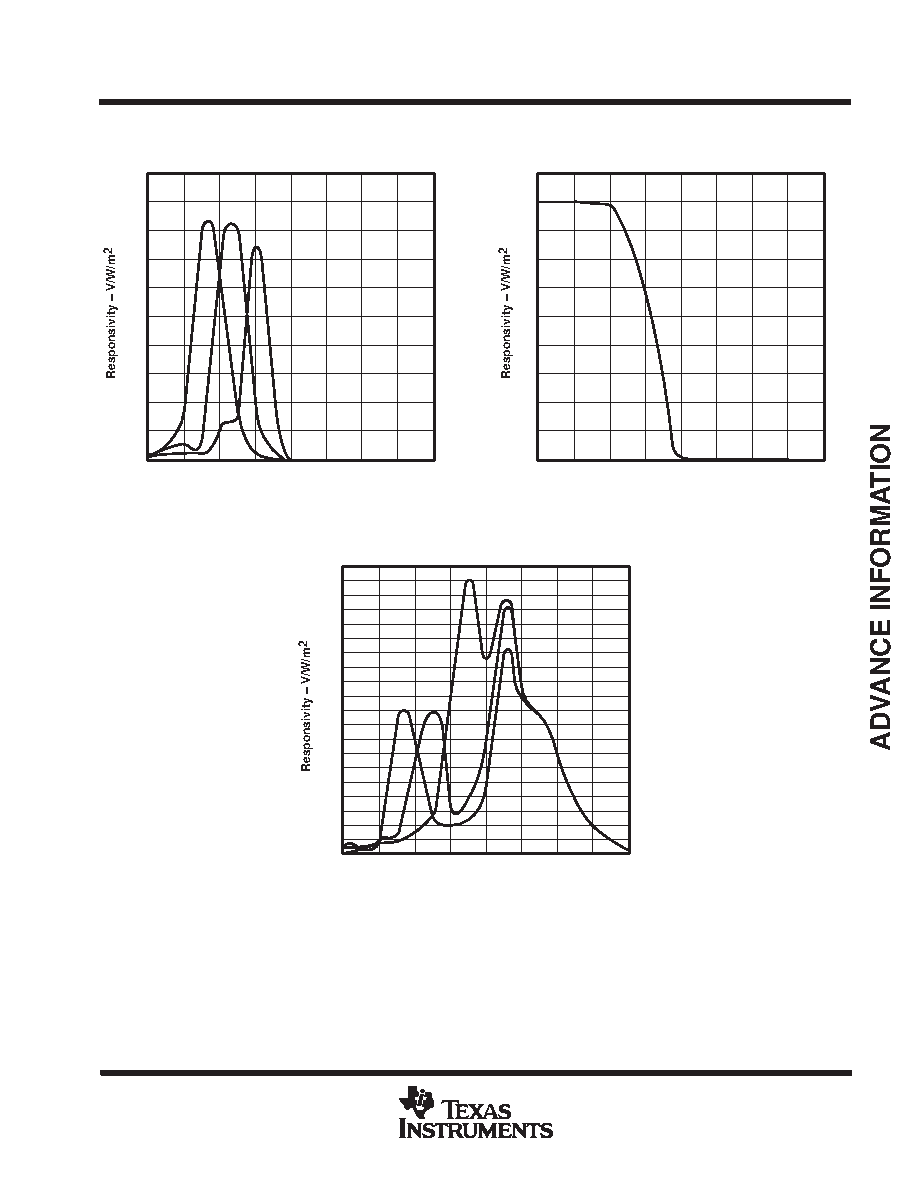

Figure 9. TC236 Sensor Spectral Response With a 1-mm CM500 IR Block Filter

0

5

20

300

400

500

600

700

800

900

1000

1100

Wavelength (nm)

10

15

Figure 10. TC236 Sensor Spectral Response Without a 1-mm CM500 IR Block Filter
