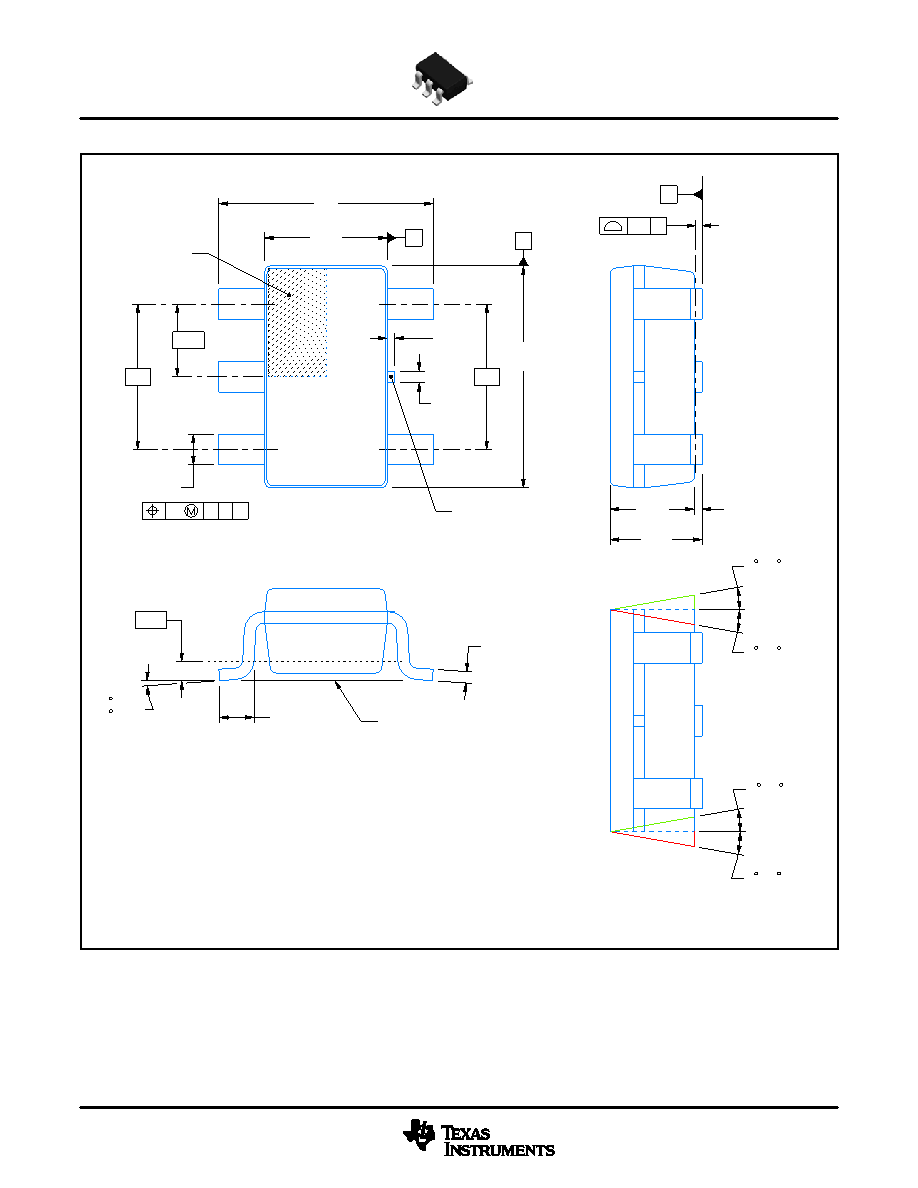

PACKAGE OUTLINE

C

0.22

0.08

TYP

0.25

3.0

2.6

2X 0.95

1.9

1.45

0.90

0.15

0.00

TYP

5X

0.5

0.3

0.6

0.3

TYP

8

0

TYP

1.9

(0.1)

(0.15)

A

3.05

2.75

B

1.75

1.45

0 -10

0 -10

0 -10

0 -10

(1.1)

SOT-23 - 1.45 mm max height

DBV0005A

SMALL OUTLINE TRANSISTOR

4214839/H 09/2023

NOTES:

1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing

per ASME Y14.5M.

2. This drawing is subject to change without notice.

3. Refernce JEDEC MO-178.

4. Body dimensions do not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not

exceed 0.25 mm per side.

5. Support pin may differ or may not be present.

ALTERNATIVE PACKAGE SINGULATION VIEW

0.2

C A B

1

3

4

5

2

INDEX AREA

PIN 1

NOTE 5

GAGE PLANE

SEATING PLANE

0.1 C

SCALE 4.000
