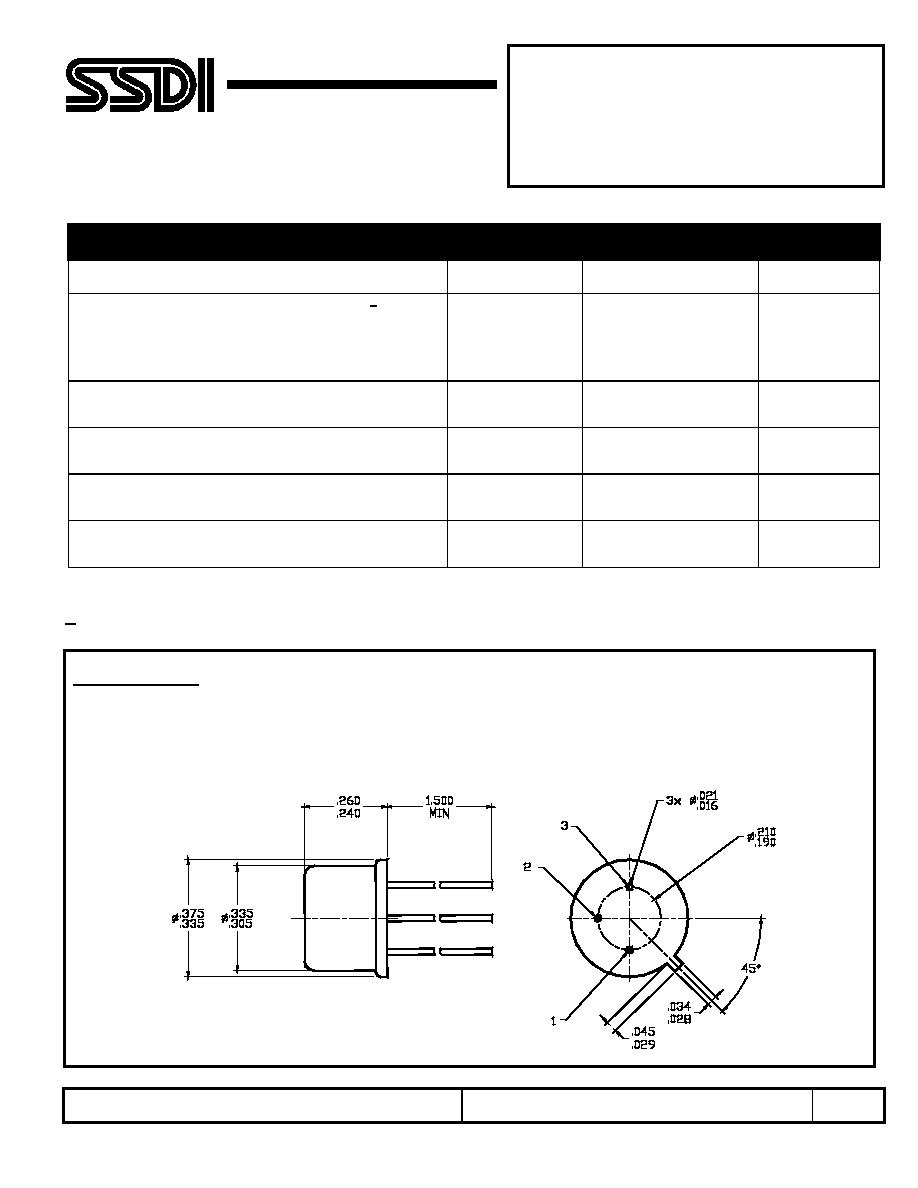

SSR1008SLASH5 datasheet(2/2 Pages) SSDI

2 / 2 page

NOTES:

2/ VF as measured between pins 1 and 2 in common, within .100” from the case, and pin 3 directly at the case.

Case Outline- TO-5

PIN 1- ANODE

PIN 2- ANODE

PIN 3- CATHODE

CASE- CATHODE

Solid State Devices, Inc.

14701 Firestone Blvd * La Mirada, Ca 90638

Phone: (562) 404-4474 * Fax: (562) 404-1773

ssdi@ssdi-power.com * www.ssdi-power.com

SSR1008/5

SSR1009/5

SSR1010/5

ELECTRICAL CHARACTERISTICS

CHARACTERISTICS

SYMBOL

MAXIMUM

UNIT

Instantaneous Forward Voltage Drop 2/

(IF = 1 Adc, TA = 25°C, 300 - 500µs Pulse)

(IF = 5 Adc, TA = 25°C, 300 - 500µs Pulse)

(IF = 10 Adc, TA = 25°C, 300 - 500µs Pulse)

VF1

VF2

VF3

0.56

0.73

0.85

Vdc

Instantaneous Forward Voltage Drop

(IF = 5 Adc, TA = -55°C, 300 - 500µs Pulse)

VF4

0.82

Vdc

Reverse Leakage Current

(Rated VR, TA = 25°C, 300µs Pulse Minimum)

IR1

100

µA

Reverse Leakage Current

(Rated VR, TA = 100°C, 300µs Pulse Minimum)

IR2

Junction Capacitance

(VR = 10 Vdc, TA = 25°C, f = 1 MHz)

400

NOTE: All specifications are subject to change without notification.

SCD's for these devices should be reviewed by SSDI prior to release.

DATA SHEET #: SH0022C

DOC
