Configuration CougarPoint-Industrial_V04 © 2010 FUJITSU

8

Socket LGA1151

Intel XEON ® -E21xx

Intel XEON ® -E22xx

CoffeeLake-S

max. 95W TDP

ATX

Power

Supply

PCIe x16 Gen3 (16 lanes)

PCIe x16 Gen3 (4 lanes)

PCIe x1 Gen3

.

(open slot)

C246

PCH incl.

heatsink

IO

4 x DDR4

2666/2400

6-Layer PCB

6 x SATA III

USB

2.0

8 Bit

GPIO

PCIe x1 Gen3

.

PSU Fan

Control

CPU Fan

Front Audio

SP/DIF

Intrusion

Fan3

Fan2

Fan4

Battery

Buzzer

243.8 mm

SCSI

LED

12V for

Proc.

COM3

COM2

COM4

Front Panel

Parallel Port

M.2-

2230

Key-E

WLAN/

BT

M.2-

2280

Key-M

SSD

(PCIe)

USB

3.0

USB 3.1

Stick

// 3

www.kontron.com

POWER SUPPLY REQUIREMENTS

SOURCE

VOLTAGE

MIN. PS LOAD

MAX. VOLTAGE

TOLERANCE

MOTHERBOARD

CAPACITIVE LOAD

MOTHERBOARD MAX.

CURRENT (continous)

Main Power Supply

+ 12 V

0.05 A

± 5 %

5.000 µF

10 A / 18 A*

- 12 V

0 A

± 10 %

470 µF

0.3 A

+ 5 V

0.2 A

± 5 %

3.000 µF

6.0 A

+ 3.3 V

0 A

± 5 %

3.000 µF

0.5 A

Aux

+ 5 Vaux

0 A

+ 5 % / - 3 %

3.000 µF

2.5 A

*) Processor 95 W TDP: Max. Cont. Current = 10 A; max. Surge Current = 16 A (< 100sec) / 18 A (< 10ms)

Processor 65 W TDP: Max. Cont. Current = 7 A; max. Surge Current = 14 A (< 100sec) / 18 A (< 10ms)

Processor 35 W TDP: Max. Cont. Current = 4 A; max. Surge Current = 10 A (< 100sec) / 14 A (< 10ms)

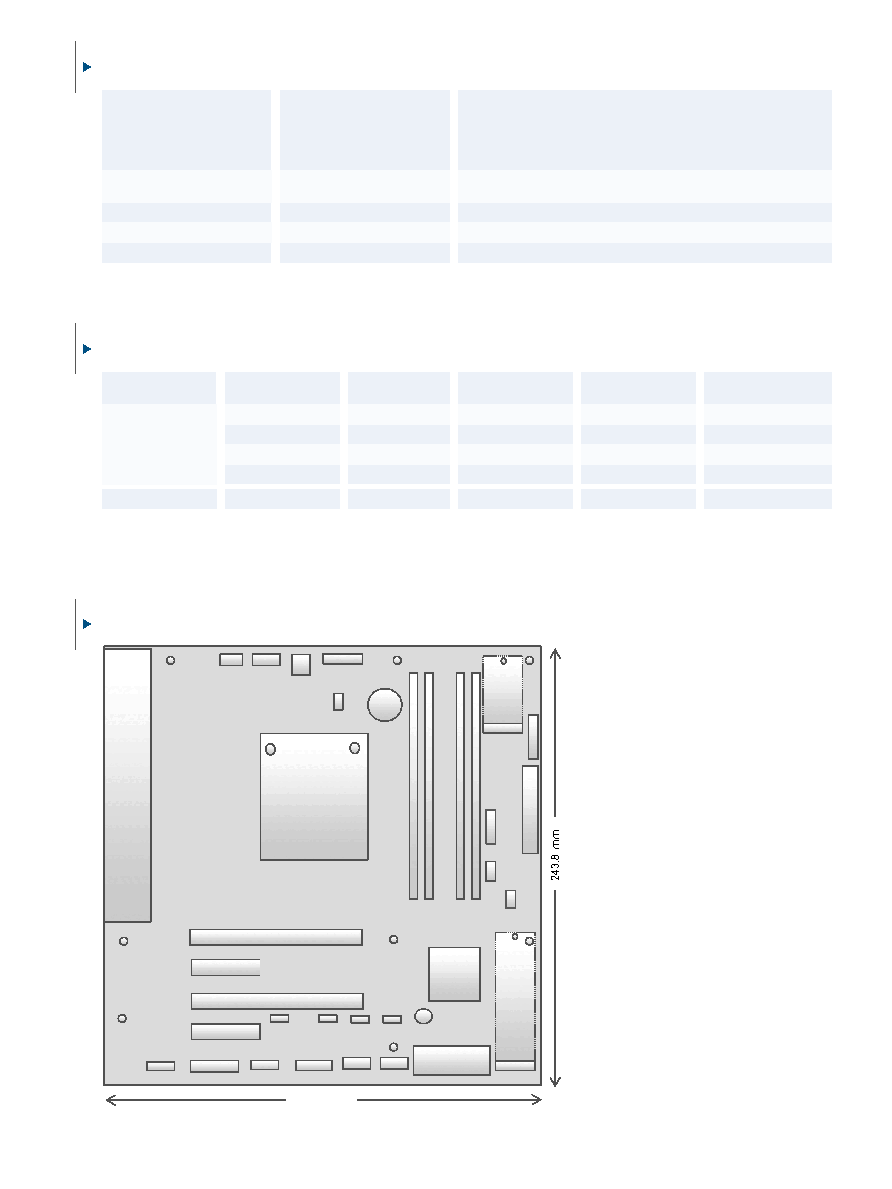

CONNECTOR / SOCKET DIAGRAM

TECHNICAL INFORMATION

SYSTEM CONTROL

FP HEADER

SECURITY

1x Header for Reset button, HDD LED & External Speaker, Power button,

Power LED

Recovery BIOS, System and BIOS Password, Boot Sequence Control,

Serial/USB- Port Access Protection, Write Protection for Flash BIOS,

EraseDisk (BIOS Feature),

Infineon Trusted Platform Module (TPM)

SOFTWARE

OS SUPPORT

MS Windows 10

Linux-64

MECHANICAL

DIMENSIONS (L x W)

µATX: 9.6” x 9.6” (243.8 x 243.8 mm)

ENVIRONMENTAL

OPERATION TEMPERATURE

0 °C - 60 °C

CERTIFICATION

EMC & SAFETY

cTÜVus acc. IEC62368-1, CE Class B Industrial Immunity, FCC-B verified
