TECHNICAL INFORMATION

SYSTEM

PROCESSOR

CHIPSET

MEMORY

Intel® Xeon® E-21xx/E-22xx processor series

Intel® Core™ i9/i7/i5/i3 (8th/9th Gen) processor series

Intel® Pentium®/Intel® Celeron® processor series

Socket LGA1151, max. 95 W TDP

(For details on supported processors please refer to Kontron FTP Server)

Intel® C246 Express Chipset

4 DIMM Sockets DDR4-2666 (1.2 V), max. 64 GByte, Dual Channel

DDR4 -2666 (CL19)/-2400 (CL17)/-2133 (CL15) SDRAM,

unbuffered, ECC/non-ECC

Note: 128 GByte memory configuration (4x 32 GByte modules) not supported

Effective memory speed depends on installed processor

VIDEO

GRAPHICS

Intel® UHD Graphics (depends on installed processor), DX12

2x DP V1.2

1x DVI-D

VGA output possible via optional VGA extension card D3653-A

AUDIO

AUDIO CODEC

AUDIO INTERFACE

Realtek ALC671

5.1- channel, High Definition Audio Codec

NETWORK CONNECTION

ETHERNET

Intel i219LM & i210AT with 10/100/1000 MBit/s, AMT 12.0/vPro Support,

Wake-on-LAN (WoL) by interesting Packets, Link Status Change and

Magic Packet™, PXE Support, BIOS MAC Address Display, Teaming Support

PERIPHERAL CONNECTION

USB

SERIAL PORT

OTHER I/Os

6x USB 2.0, 4x USB 3.1 Gen1, 2x USB 3.1 Gen2, 1x USB 3.1 Gen2 stick socket

1x RS232 (by header)

1x 8-Bit GPIO

STORAGE & EXPANSION

SATA

PCIe/PCI SLOTS

6x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI, RAID 0/1/5/10,

1x M.2 PCIe (2280), 1x M.2 Key-E (2230)

PCIe x16: 1x 16 lanes, Gen3/1x 4 lanes, Gen3

PCIe x1: 1x Gen3, "open"/1x Gen3, "closed"

POWER

CONNECTOR

INPUT VOLTAGE

8 Bit GPIO (Input/Output); WLAN LED support, WLAN enable/disable support

3.3 V/5 V/12 V supply voltage output; SMBus controller PCA9554A

FIRMWARE

BIOS

WATCHDOG

REAL TIME CLOCK

TPM

AMI Aptio 5.x (UEFI) BIOS

modified and adapted by Kontron; Recovery BIOS, SM-BIOS (DMI), BIOS and

CPU Microcode Update, Quick Boot, Logo Boot, Quiet Boot, Plug & Play,

Automatic DRAM and PCIe Configuration, BIOS Support for S.M.A.R.T.,

Advanced Power Management, ACPI S3/S4, Wake on time from S5. HW

Watchdog support & BIOS integrated HW Diagnostic Tool.

No legacy OS support, no MBR installation (UEFI only)

Recovery BIOS, System and BIOS Password, Boot Sequence Control

Integrated

TPM V2.0 (Infineon SLB9670; TCG compliant)

D3641-S μATX

Industrial Series

The Industrial Motherboard D3641-S µATX is equipped with the

highly performant Intel® C246 Express Chipset. It also offers a

multitude of supporting processors such as the Intel® Xeon®

E-21xx/E-22xx processor series, as well as Intel® Core™ i9/i7/i5/i3

(8th/9th Gen) and the Intel® Pentium®/Intel® Celeron® processor

series. Designed and approved for 24/7 continuous operation and

an enhanced temperature range up to 60 °C the D3641-S µATX

provides high functionality and fits perfect with special require-

ments of certain markets. It offers extended manageability with

the latest Intel® AMT 12.0 and vPro.

PRODUCT HIGHLIGHTS

 Intel® 8th/9th Gen Core™ & Intel® Xeon® Processor Series

 DDR4 2666 SDRAM, max. 64 GByte

 cTDP – Easy & flexible reduction of CPU TDP

 Supporting Intel® AMT 12.0/vPro

 PCI Express® x16 (Gen.3)

 2x Intel® GbE LAN (incl. Teaming)

 Intel® UHD Graphics (DX12); 1x DVI-D, 2x DP V1.2

 Intel® High Definition 5.1 Audio; Infineon TPM V2.0

 8 Bit GPIO; 4 x COM ports

 6x USB 2.0, 4x USB 3.1 Gen1, 2x USB 3.1 Gen2,

1x USB 3.1 Gen2 stick socket

 6x SATA 6G incl. RAID support, parallel port (internal pin header)

 M.2 2280 (PCIe-based SSD modules)

 M.2 2230 (WLAN/Bluetooth modules)

 BIOS-POST/-Boot & OS – HW Watchdog onboard

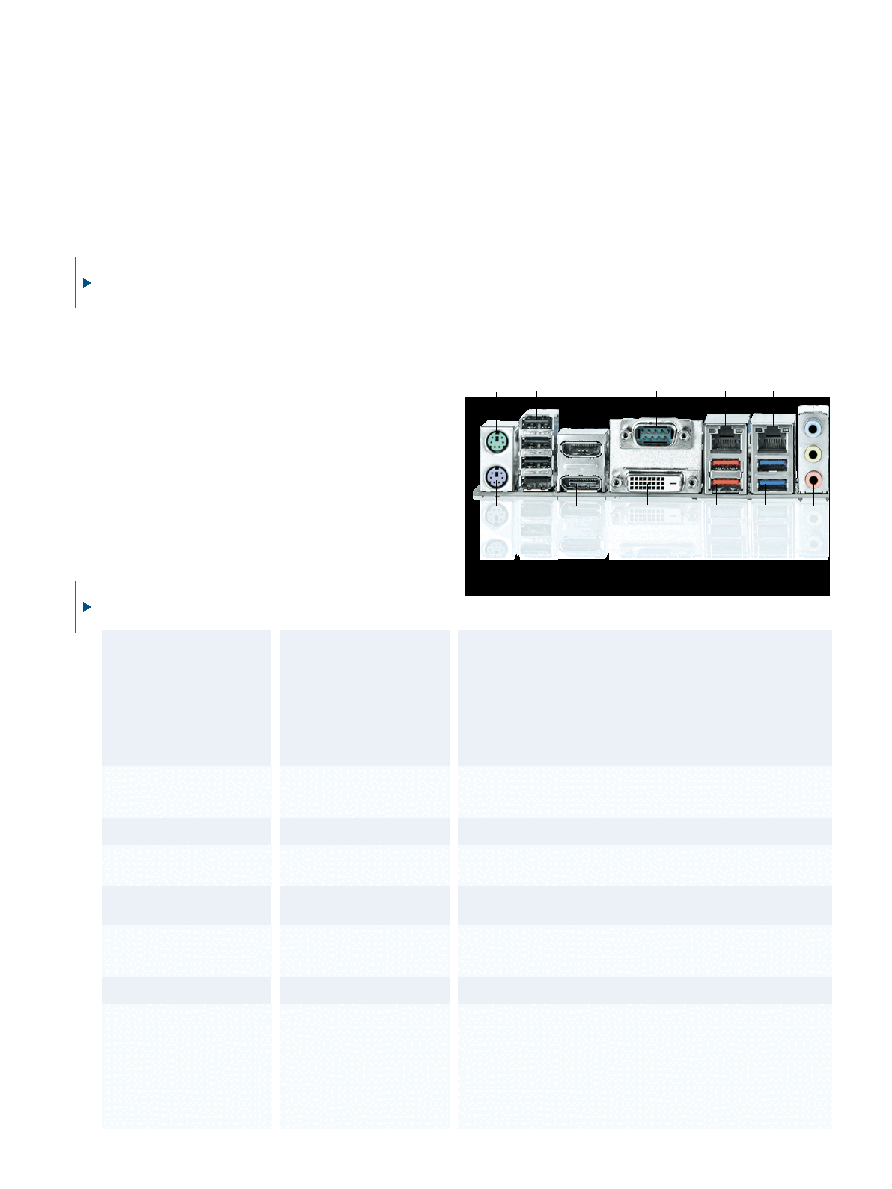

LAN2

COM1

4x USB 2.0

Mouse

LAN1 (iAMT)

Kbd

2x DP V1.2

DVI-D

2x USB 3.1

Gen2

2x USB 3.1

Gen1

Audio
