3

www.kontron.com

K3833-Q mITX

Technical Information

Power Supply Requirements

FIRMWARE

BIOS

WATCHDOG

REAL TIME CLOCK

TPM

AMI Aptio 5.x (UEFI) BIOS modified and adapted by Kontron;

Recovery BIOS, SM-BIOS (DMI), BIOS and CPU Microcode Update, Quick Boot,

Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM and PCIe Configuration,

BIOS Support for S.M.A.R.T., Advanced Power Management, ACPI S3/S4, Wake

on time from S5.

No legacy OS support, no MBR installation (UEFI only)

BIOS POST-/BIOS BOOT-/OS-HW Watchdog

Integrated

TPM V2.0 (Intel® integrated)

SYSTEM CONTROL

FP HEADER

SECURITY

1x Header for Reset button, HDD LED & External Speaker, Power button, Power

LED

Recovery BIOS, System and BIOS Password, Boot Sequence Control,

Serial/USB- Port Access Protection, Write Protection for Flash BIOS, EraseDisk

(BIOS Feature),

Trusted Platform Module (TPM)

SOFTWARE

OS SUPPORT

MS Windows® 10, MS Windows® 10 IoT (LTSC), MS Windows® 11,

MS Windows® 11 IoT (LTSC), Linux 64

No legacy OS support, no MBR installation (UEFI only)

MECHANICAL

DIMENSIONS (L X W)

Mini-ITX: 6.7“ x 6.7“ (170 x 170 mm)

ENVIRONMENTAL

OPERATION TEMPERATURE

0 °C - 60 °C

CERTIFICATION

EMC & SAFETY

cTÜVus acc. IEC62368-1, CE Class B incl. Industrial Immunity, UKCA, FCC-B verified

SOURCE

VOLTAGE

MIN. PS LOAD

MAX. VOLTAGE

TOLERANCE

MOTHERBOARD

CAPACITIVE LOAD

MOTHERBOARD MAX.

CURRENT (continous)*

Main Power Supply

+ 12 V

0 A

± 5 %

1.800 µF

< 10 A

- 12 V

n.a.

n.a.

-

-

+ 5 V

0 A

± 5 %

1.600 µF

5 A

+ 3.3 V

0 A

± 5 %

500 µF

0.5 A

Aux

+ 5 Vaux

0 A

± 5 %

1.600 µF

2 A

*) Max. motherboard input current incl. processor and DRAM memory. Additional power for drives, USB devices, PCIe cards, eDP etc. is not included!

Note: BIOS provides option to reduce CPU TDP/Turbo power in order to use PSU with limited loadabilty.

Processor 65 W TDP: Max. Cont. Current < 10 A; max. Surge Current = 24 A (full Turbo Mode)

Processor 35 W TDP: Max. Cont. Current < 5 A; max. Surge Current = 12 A (full Turbo Mode)

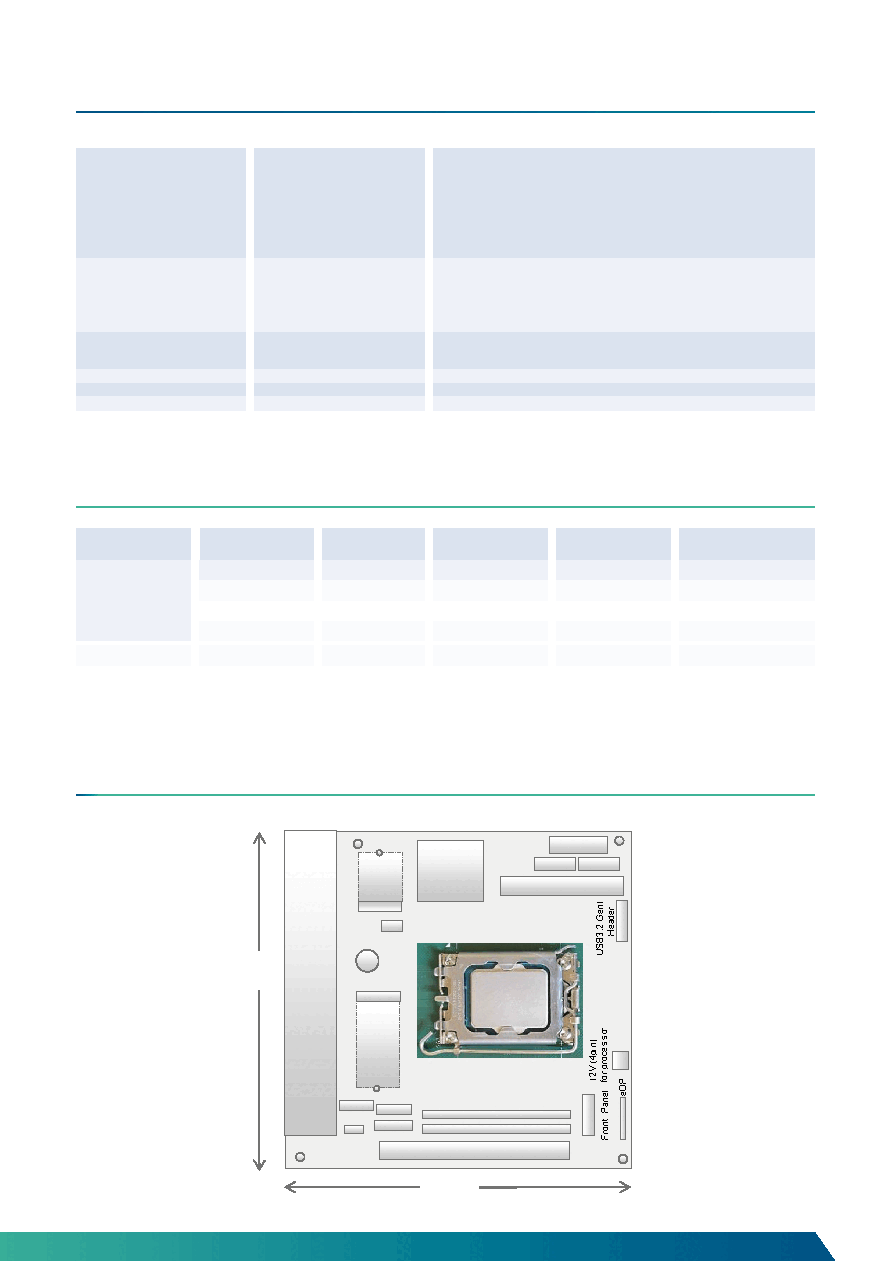

Connector/Socket Diagram

INTERNAL USE ONLY

INTERNAL USE ONLY

K3833-Q Mini-ITX (31.01.23)

ATX PSU-24pin

Q670E

PCH with

heatsink

2 x SATA III

PCIe x16 Gen5 (16 lanes)

2 x DDR5-

4800 SO

Fan CPU

170 mm

170 mm

SP/DIF

GPIO

Battery

Socket

LGA1700

max. 65W TDP

Fan 2

M.2-

2230

Key-E

Intrusion

M.2-

2242

Key-M

PCIe

Gen4

„CPU“

8-layer PCB

COM1

Buzzer

Rear I/O
