K3833-Q mITX

Product Highlights

K3833-Q mITX Industrial Series

* Intel® Core™ processors (12th/13th/14th Gen)

* DDR5-4800/5600 SODIMM, max. 96 GByte

* cTDP – Easy & flexible reduction of CPU TDP

* Supporting Intel® iAMT features and

Intel® Time Coordinated Computing (TCC)

* PCI Express® x16 (Gen5 prepared)

* 1x Intel® GbE LAN, 1x 2.5GbE incl. Teaming and TSN

* Intel® UHD Graphics 7xx driven by Xe Architecture;

4x DisplayPort V1.4a up to 8K; 1x eDP V1.4b @4K

* Intel® High Definition 5.1 Audio; Intel® integrated TPM V2.0

* 8 Bit GPIO; 1x COM port

* 4x USB 3.2 Gen 2, 4x USB 3.2 Gen1, 2x USB 2.0

* 2x SATA 6G incl. RAID support

* 1x M.2 2242 (Key-M, PCIe/NVME SSD modules)

* M.2 2230 (Key-E, WLAN/Bluetooth modules,

incl. CNVi support)

* BIOS-POST/-Boot & OS – HW Watchdog onboard

The Industrial Motherboard K3833-Q mITX is equipped with the

highly performant Intel® Q670E Chipset. It also offers a multitude

of supporting processors such as the Intel® Core™ i9/i7/i5/i3

processor (12th/13th/14th Gen) and the Intel® Pentium®/

Intel® Celeron® processor series. The motherboard impresses

with iAMT-based out-of-band management features, TSN and

real-timesupport (TCC) for specific industrial applications, and

support for the latest standards, such as PCI Express® Gen5

and DDR5 memory technology. Designed and approved for 24/7

continuous operation and an enhanced temperature range up to

60 °C the K3833-Q mITX fits perfectly with special requirements

of certain markets.

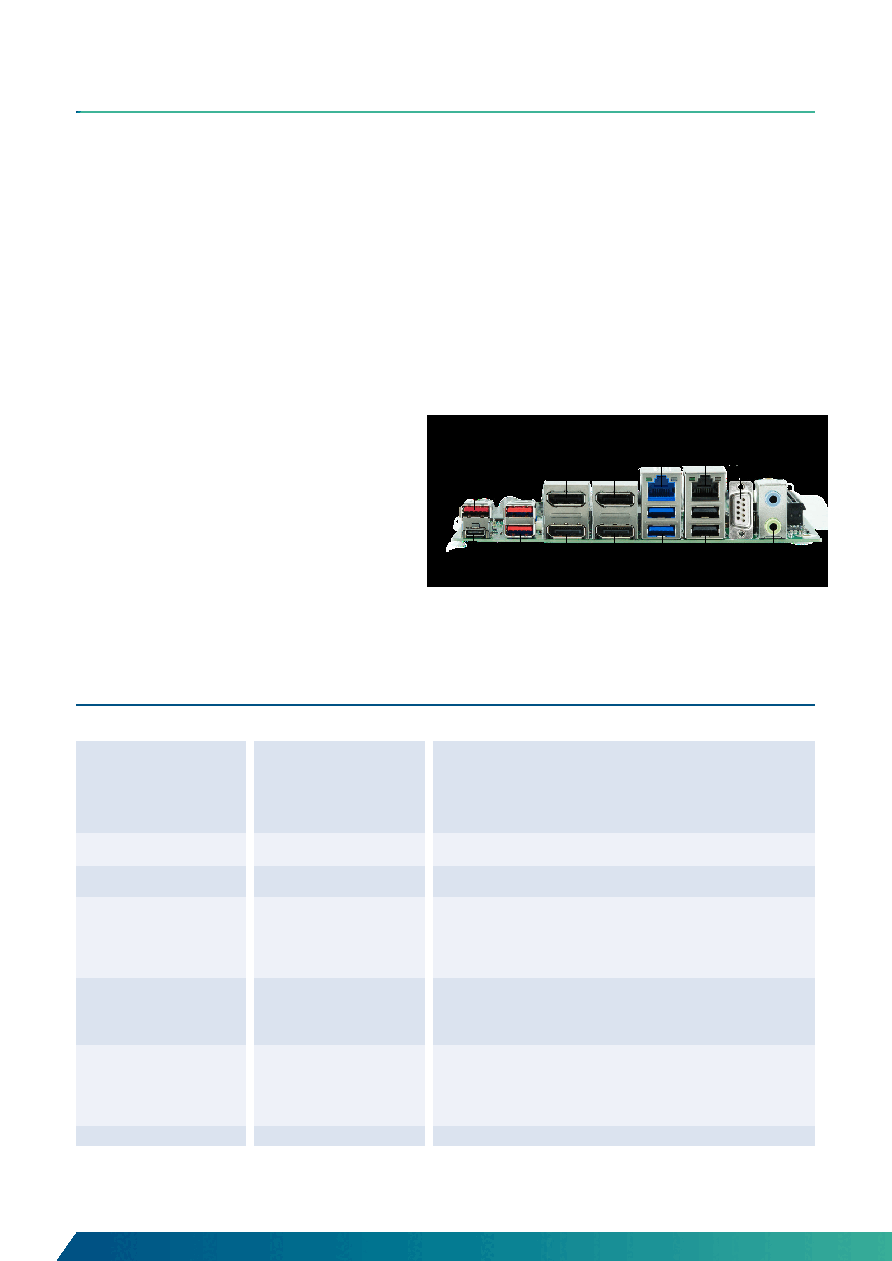

Technical Information

LAN2

2.5 GbE

LAN1/iAMT

1 GbE

Space for optional

COM cable

USB 3.2

Gen2

USB-C 3.2

Gen2

USB 3.2

Gen2

USB 3.2

Gen1

USB 2.0

Audio

DPP2

DPP4

DPP1

DPP3

SYSTEM

PROCESSOR

CHIPSET

MEMORY

Intel® Core™ processors (12th/13th/14th Gen)

Intel® Pentium®/Intel® Celeron® processor series

Socket LGA1700, max. 65 W TDP

(For details on supported processors please refer to Kontron FTP Server)

Intel® Q670E Chipset

2 SODIMM Sockets DDR5-4800/5600*, max. 96 GByte, Dual Channel

unbuffered non-ECC.

VIDEO

GRAPHICS

Intel® UHD Graphics 7xx (depends on installed processor),

4x DisplayPort V1.4a up to 8K; 1x eDP V1.4b @4K

AUDIO

AUDIO CODEC

AUDIO INTERFACE

Tempo Semiconductor 92HD91B

5.1- channel**, High Definition Audio Codec

NETWORK CONNECTION

ETHERNET 1

ETHERNET 2

Intel® i219LM with 10/100/1000 MBit/s, iAMT features,

Wake-on-LAN (WoL) by interesting Packets, Link Status Change and

Magic Packet™, PXE Support, BIOS MAC Address Display, Teaming Support

Intel® i226LM with 10/100/1000/2500 MBit/s, TSN Support, Wake-on-LAN

(WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE

Support, BIOS MAC Address Display, Teaming Support

PERIPHERAL CONNECTION

USB

SERIAL PORT

OTHER I/OS

3x USB 3.2 Gen 2 (rear I/O, Type-A), 1x USB 3.2 Gen 2

(rear I/O, Type-C with locking option), 2x USB 3.2 Gen1 (rear I/O, Type-A),

2x USB 2.0 (rear I/O, Type-A), 2x USB 3.2 Gen1 (by header)

1x (by header)***

1x 8-Bit GPIO

STORAGE & EXPANSION

SATA

M.2 PCIe/NVME

M.2 WIRELESS

PCIe/PCI SLOTS

GPIO

2x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI, RAID 0/1

1x M.2 2242 (Key-M, PCIe/NVME SSD modules)

1x M.2 2230 ((Key-E, WLAN/Bluetooth modules, incl. CNVi support)

PCIe x16: 1x 16 lanes, Gen5****

8 Bit GPIO (Input/Output); WLAN LED support, WLAN enable/disable support

3.3 V/5 V/12 V supply voltage output; SMBus controller PCA9554A

POWER

CONNECTOR INPUT VOLTAGE

ATX (Multirail) plus 4-pin socket (12 V for CPU)

*) Support for DDR5-5600 with BIOS ≥ R2.13.0. Requires at least appropriate Intel® Core™ processor (13th/14th gen)

**) 5.1 surround sound is possible via digital output ports like S/PDIF or DisplayPort

***) Requires extension cable with integrated COM transceiver (signal level converter) e.g. F5000-K011

****) PCIe x16 (PEG) slot: Gen5 ready; Support for lane split (x16 or x8+x8)
