TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. E | 21 of 53

ADL6337-C

V50AMP1 = V50AMP2 = 5 V, TA = 25°C, input power = −25 dBm (−25 dBm per tone for two tones), DSA attenuation= 0 dB, RS = RL = 50 Ω,

TRM_AMP1_IP3_0 = TRM_AMP2_IP3_= 6, TRM_AMP1_IREF_0_0 = TRM_AMP1_IREF_1 = TRM_AMP1_IREF_2 = TRM_AMP1_IREF_3 =

11, TRM_AMP2_IREF_0_0 = TRM_AMP2_IREF_1 = TRM_AMP2_IREF_2 = TRM_AMP2_IREF_3 = 11, unless otherwise noted.

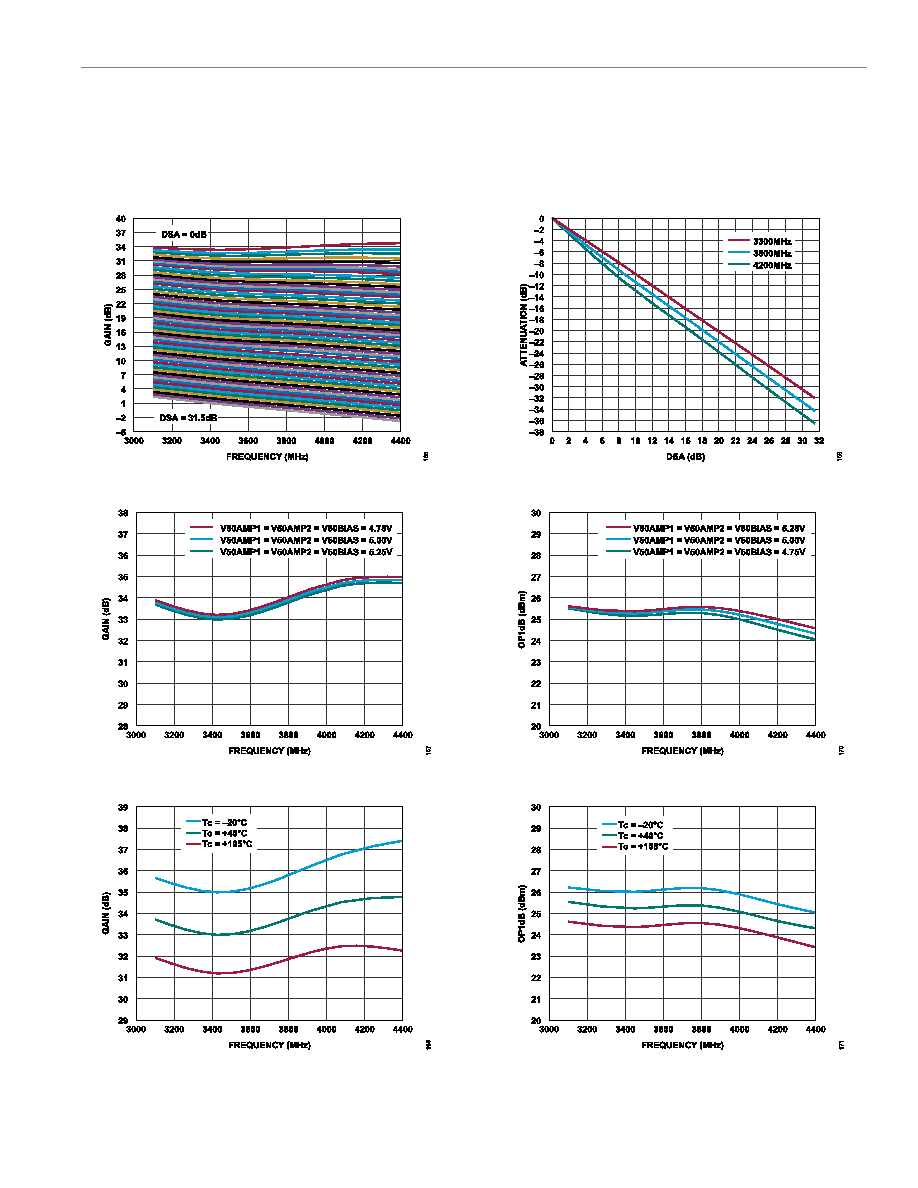

Figure 66. Gain vs. Frequency; 0.5 dB DSA Steps

Figure 67. Gain vs. Frequency for Various Supplies

Figure 68. Gain vs. Frequency for Various Temperatures

Figure 69. Attenuation vs. DSA at 3300 MHz, 3600 MHz, and 3800 MHz

Figure 70. OP1dB vs. Frequency for Various Supplies

Figure 71. OP1dB vs. Frequency for Various Temperatures
