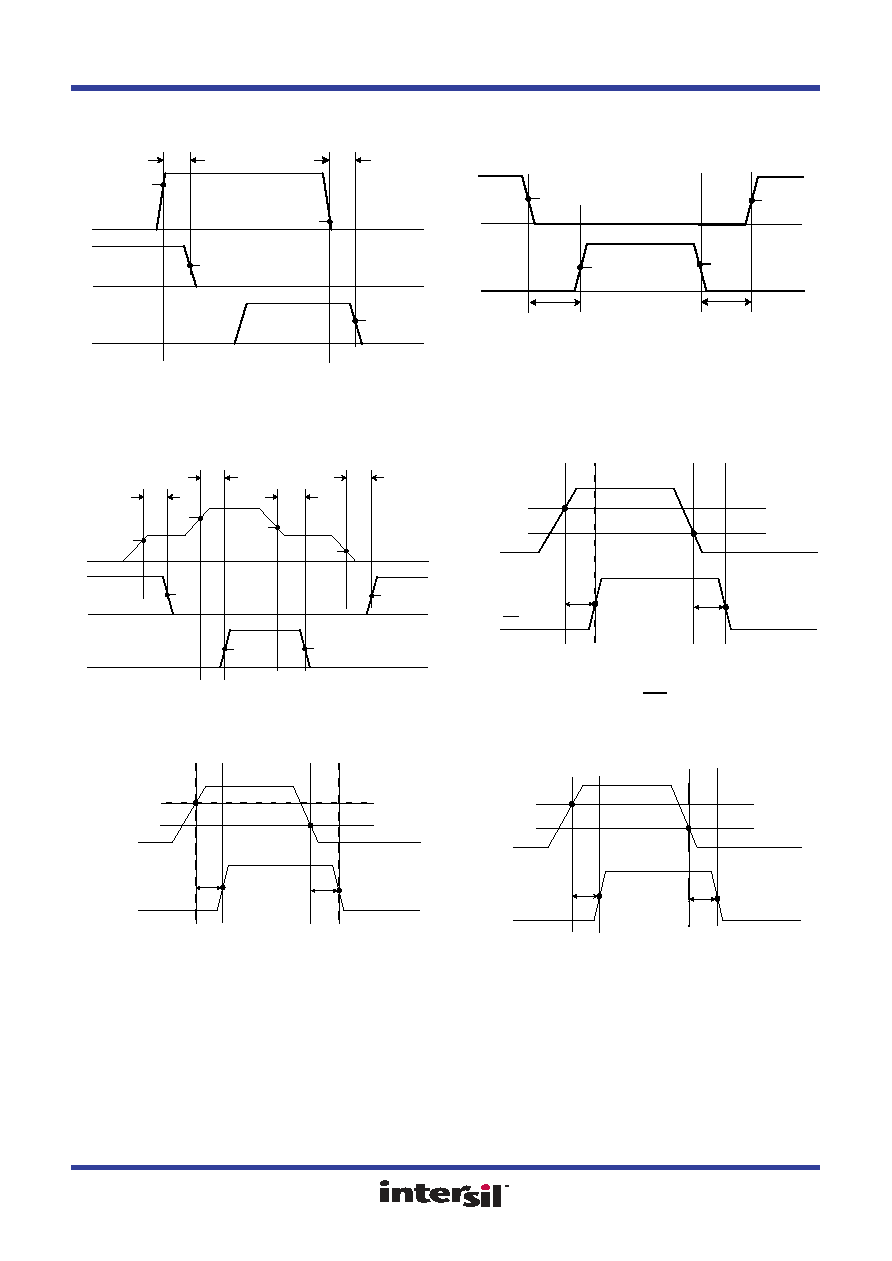

16 / 40 page  R34DS0017EU0104 Rev.1.04 Page 16 Jan 31, 2025 ISL73041SEH Datasheet 3.5 Timing Diagrams Figure 4. PWM Propagation Delay Figure 5. Programmable Dead Time Figure 6. PWM Mid Level Propagation Delay Figure 7. PVCC UVLO to FLT Propagation Delay Figure 8. PVCC UVLO to UG & LG Propagation Delay Figure 9. BOOT UVLO to UG Propagation Delay PWM VPWMH VPWML tPDLG 50% 50% tPDUG Propagation Delay Matching: tPDLG - tPDUG LG UG tDT_LU 50% 50% 50% 50% tDT_UL LG UG Dead Time Set by Resistor Value on the RDU/RDL Pin Programmable Dead Time Matching: tDT_LU - tDT_UL PWM LG UG tPDUG1 VMIDL VPWMH tPDLG1 50% 50% tPDUG2 tPDLG2 50% 50% VMIDH VPWML PVCC PVCC UVLO Fall PVCC UVLO Rise UG and LG Outputs respond to PWM = 0V or PWM = 5V t_PVCCR t_PVCCF FLT UG and LG Outputs do not respond to PWM = 0V or PWM = 5V PVCC PVCC UVLO Fall PVCC UVLO Rise UG and LG Outputs respond to PWM = 0V or PWM = 5V t_PVCCR t_PVCCF UG and LG Output UG and LG Outputs don’t respond to PWM = 0V or PWM = 5V BOOT BOOT UVLO Fall BOOT UVLO Rise UG Respond to PWM = 5V t_BOOTR t_BOOTF UG Output does not respond to PWM = 5V UG |
|
