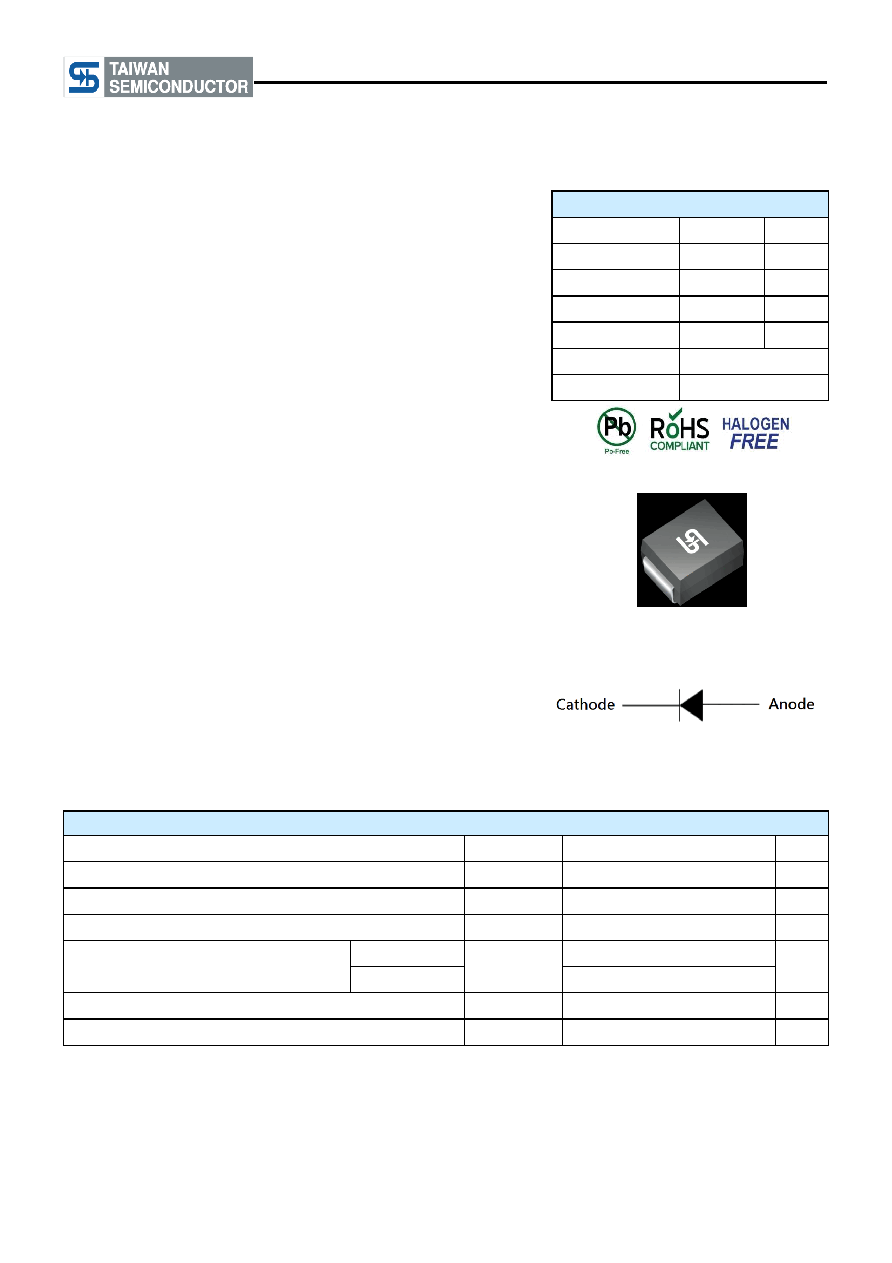

PU3JBH

Taiwan Semiconductor

1

Version: A2409

3A, 600V Ultra Fast Surface Mount Rectifier

FEATURES

● AEC-Q101 qualified

● Planar technology

● Low power loss, high efficiency

● Ideal for automated placement

● Moisture sensitivity level: level 1, per J-STD-020

● RoHS Compliant

● Halogen-free

APPLICATIONS

● DC to DC converter

● Automotive application

● Car lighting

● Snubber

● Freewheeling application

MECHANICAL DATA

● Case: DO-214AA (SMB)

● Molding compound meets UL 94V-0 flammability rating

● Terminal: Matte tin plated leads, solderable per J-STD-002

● Meet JESD 201 class 2 whisker test

● Polarity: Indicated by cathode band

● Weight: 0.087g (approximately)

KEY PARAMETERS

PARAMETER

VALUE

UNIT

IF

3

A

VRRM

600

V

IFSM

45

A

TJ MAX

175

°C

Package

DO-214AA (SMB)

Configuration

Single die

DO-214AA (SMB)

ABSOLUTE MAXIMUM RATINGS (T

A

= 25°C unless otherwise noted)

PARAMETER

SYMBOL

VALUE

UNIT

Repetitive peak reverse voltage

VRRM

600

V

Reverse voltage, total rms value

VR(RMS)

420

V

Forward current

IF

3

A

Surge peak forward current single half

sine-wave superimposed on rated load

t = 8.3ms

IFSM

45

A

t = 1.0ms

100

Junction temperature

TJ

-55 to +175

°C

Storage temperature

TSTG

-55 to +175

°C
