K3HB-R

14

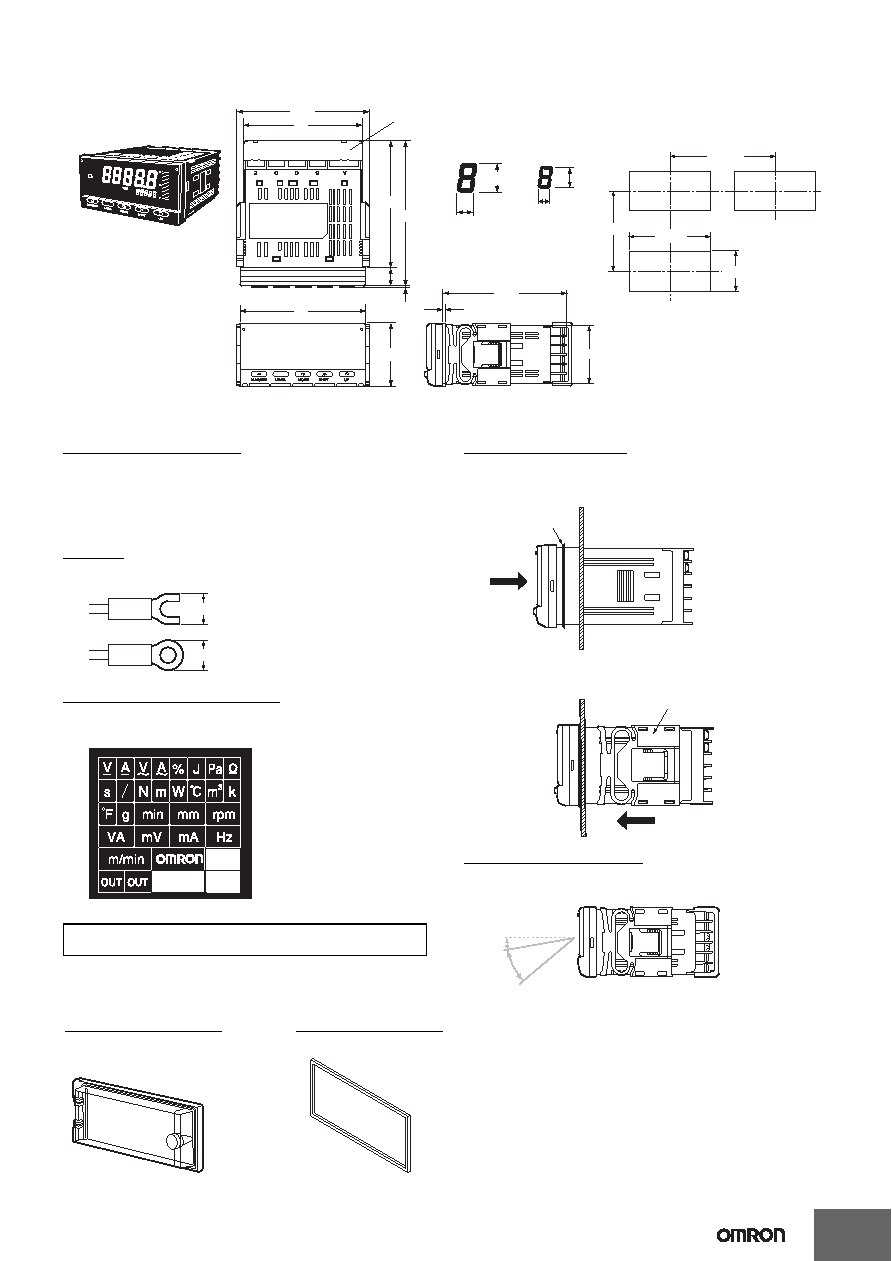

■ Dimensions

Wiring Precautions

• For terminal blocks, use the crimp terminals suitable for M3 screws.

• Tighten the terminal screws to the recommended tightening torque

of approx. 0.5 N·m.

• To prevent inductive noise, separate the wiring for signal lines from

that for power lines.

Wiring

• Use the crimp terminals suitable for M3 screws shown below.

Unit Stickers (included)

• No unit stickers are attached to the Digital Indicator.

• Select the appropriate units from the unit sticker sheets provided.

Mounting Method

1. Insert the K3HB into the mounting cutout in the panel.

2. Insert watertight packing around the Unit to make the mounting

watertight.

3. Insert the adapter into the grooves on the left and right sides of

the rear case and push until it reaches the panel and is fixed in

place.

LCD Field of Vision

The K3HB is designed to have the best visibility at the angles shown

in the following diagram.

Character Size for Main Display (mm)

Terminal: M3, Terminal Cover: Accessory

Terminal cover (included)

PV display

SV display

14.2

4.9

3.5

7.6

96

48

1.3

12

(112)

100

101.2

91

95 *

2

44.8

Panel Cutout Dimensions

120 min.

45

+0.6

0

92

+0.8

0

75 min.

*DeviceNet models: 97 mm

Mounting Recommended Panel Thickness

1 to 8 mm.

Mount the product horizontally.

Note: For measurements for commercial purposes, be sure to use

the unit required by any applicable laws or regulations.

5.8 mm max.

5.8 mm max.

Watertight

packing

Adaptor

10

°

30

°

Watertight Cover

Y92A-49N

Rubber Packing

K32-P1

If the rubber packing is lost or damaged, it can be ordered

using the following model number: K32-P1.

(Depending on the operating environment, deterioration,

contraction, or hardening of the rubber packing may occur and

so, in order to ensure the level of waterproofing specified in

NEMA4, periodic replacement is recommended.)

Note: Rubber packing is provided with the Controller.
