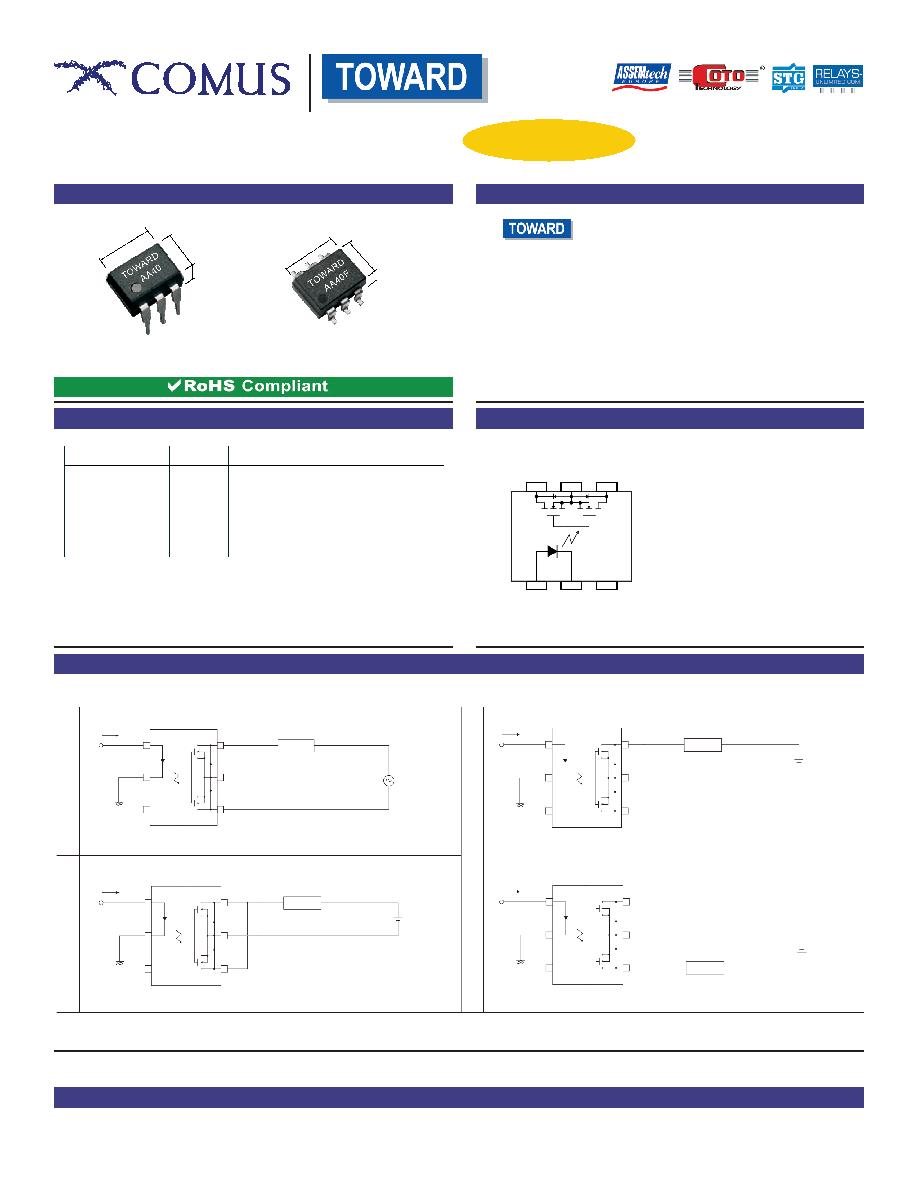

Part Number: 40 Series

High Voltage - 1 Form A - PhotoDMOS Relays

Product Data Sheet

CONNECTION DIAGRAM

ORDERING INFORMATION

SCHEMATIC


FEATURES

Phone: (1) 973 777 6900

www.comus-intl.com

Fax: (1) 973 777 8405

As part of the company policy of continued product improvement, specifications may change without notice. Our sales office will be pleased to help you with the latest information on this product range and

the details of our full design and manufacturing service. All products are supplied to our standard conditions of sale unless otherwise agreed in writing.

An ISO 9001 Certified Company

Belgium: + 32 (0)12 390400 - Comus Europe Ltd (Assemtech) UK: +44 (0) 1255 862236 - Germany: +49 (0)911 923 15 943 - Netherlands: +31(0)45 54 39 345 - India: +(91) (44) 43219090

©2016 Copyright Comus International, 454 Allwood Road, Clifton NJ 07012, USA

Relays

•

PhotoDMOS Relays

• 1500 Volt, 45 mA Hi-Voltage design

• On-Resistance: 180 Ω (typical)

• I/O Breakdown Voltage 3750 Vrms Min.

• Optional High I/O BV 5000 Vrms Min.

• Max LED Current 5.0 mA

• Low Off-State Leakage Current 10 μ A Max

1: Anode

2: Cathode

3: NC

4, 6: Drain

5: Source

(LED)

(LED)

(MOS FET)

(MOS FET)

DIP6

8.8

LOAD

VL(AC or DC)

VL(DC)

VL(DC)

VL(DC)

IF

IF

IF

IF

LOAD

Control bi-directional signal

A

C

B

On-Resistance is 1/2 of A-connection

On-Resistance is 1/2 of B-connection

LOAD

LOAD

8.8

6.4

3.4

3.4

6.4

SMD6

1

2

3

(+)

(-)

6

5

4

AA40(F)

Drawings not to scale. All dimensions in mm nominal. Pitch: 2.54 mm

Part Number Example: AA40X-XX

AA40F-R1 = Series 40, 6-Pin DIP, SMD style with tape and reel

packaging

Rev: 0 - Date: June/17/2016 - Signature: BR

1500 VOLTS

40

AA = DIP(6 pin)

Body Style

Series Options

F = SMD

R1 = Tape & Reel (SMD Only)

H = 5KV I/O BV
