PFS7523-7529/7533-7539

HiperPFS-3 Family

www.power.com

April 2025

PFC Controller with Integrated High-Voltage MOSFET and Qspeed

Diode Optimized for High PF and Efficiency Across Load Range

Key Benefits

• High efficiency and power factor across load range

• >95% efficiency from 10% load to full load

• <60 mW no-load consumption at 230 VAC

• PF >0.92 easily achievable at 20% load

• EN61000-3-2 Class C and D compliant

• Highly integrated for smallest boost PFC form factor

• Integrated controller, MOSFET and ultra-low reverse recovery loss

diode (Qspeed)

• Packaging optimized for high volume production

• Eliminates insulating pad/heat-spreader

• Enhanced features

• Programmable Power Good (PG) signal

• User selectable power limit: Enables different HiperPFS-3 family

members to be tested in the same design for optimum device

selection

• Integrated non-linear amplifier for fast output OV and UV

protection and transient response

• Digital line peak detection that provides robust performance even

with distorted input voltage from UPS or generators

• Digital power factor enhancer compensates for EMI filter and

bridge distortion, providing high-line PF >0.92 @ 20% load

• Frequency adjusted over line voltage and each line cycle

• Spread-spectrum across >60 kHz window simplifies EMI filtering

requirements

• Lower boost inductance

• Provides up to 450 W peak output power for universal

applications, 1 kW for high-line only applications

• Protection features include: UVLO, UV, OV, OTP, brown-in/out,

cycle-by-cycle current limit and power limiting for overload

protection

• Halogen free and RoHS compliant

Applications

• E-bike and EV 2-Wheeler • 80 Plus™ Platinum

chargers

designs

• Power tool chargers

•

High-power adaptors

• PC

•

High-power LED lighting

• Printer

•

Industrial and appliance

• LCD TV

•

Generic PFC converter

• Video game consoles

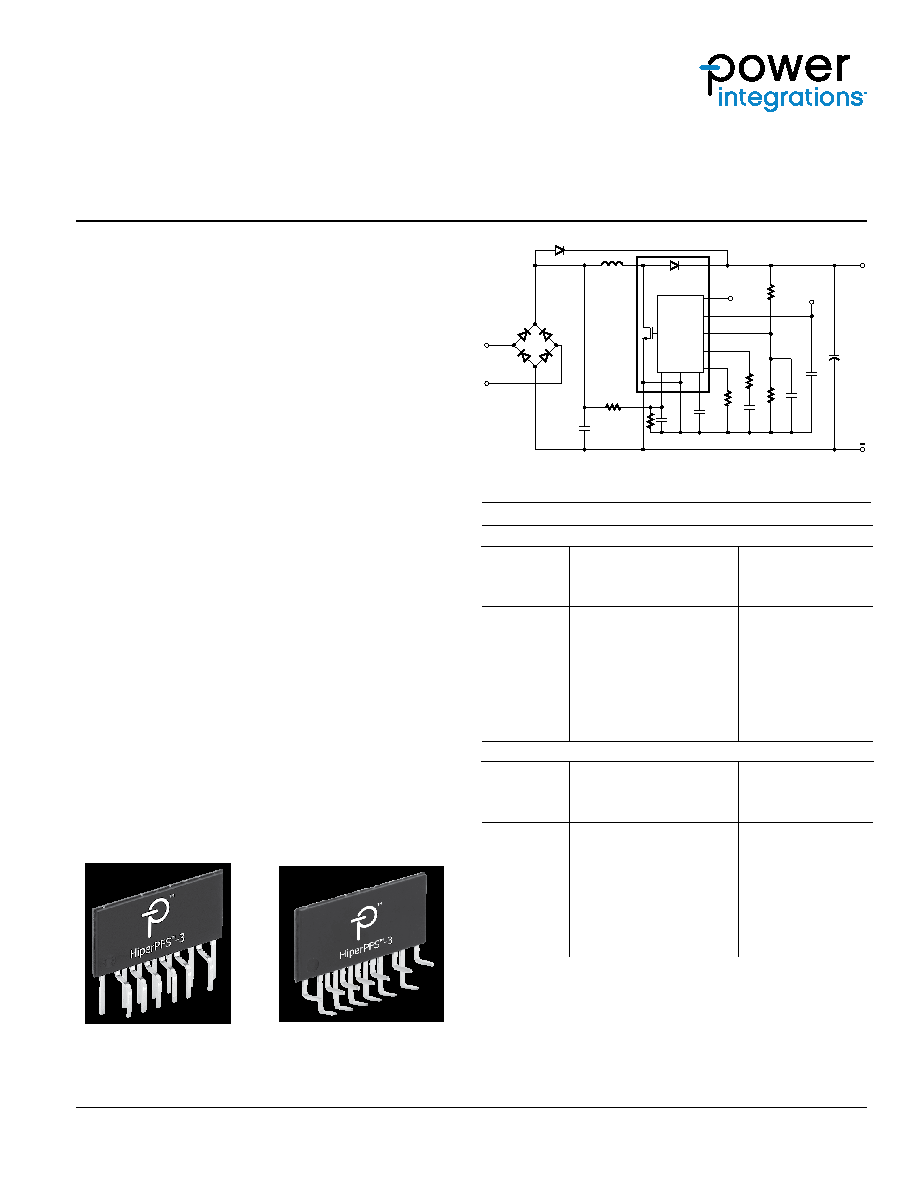

Figure 1. Typical Application Schematic.

Output Power Table

Universal Input Devices

Product

Maximum Continuous

Output Power Rating at

90 VAC (Full Power Mode)

Peak Output Power

(Full Power Mode)

PFS7523L/H

110 W

120 W

PFS7524L/H

130 W

150 W

PFS7525L/H

185 W

205 W

PFS7526H

230 W

260 W

PFS7527H

290 W

320 W

PFS7528H

350 W

385 W

PFS7529H

405 W

450 W

High-Line Only Input Devices

Product

Maximum Continuous

Output Power Rating at

180 VAC (Full Power Mode)

Peak Output Power

(Full Power Mode)

PFS7533H

255 W

280 W

PFS7534H

315 W

350 W

PFS7535H

435 W

480 W

PFS7536H

550 W

610 W

PFS7537H

675 W

750 W

PFS7538H

810 W

900 W

PFS7539L/H

900 W

1000 W

Table 1. Output Power Table (See Table 2 on page 11 for Maximum Continuous

Output Power Ratings.)

This Product is Covered by Patents and/or Pending Patent Applications.

PI-7224-061615

AC

IN

DC

OUT

+

S

C

PGT

FB

VCC

PG

K

D

REF

G

V

CONTROL

HiperPFS-3

VCC

Figure 2. Package Options.

eSIP-16D (H Package)

eSIP-16G (L Package)
