Dimensions in mm (inches).

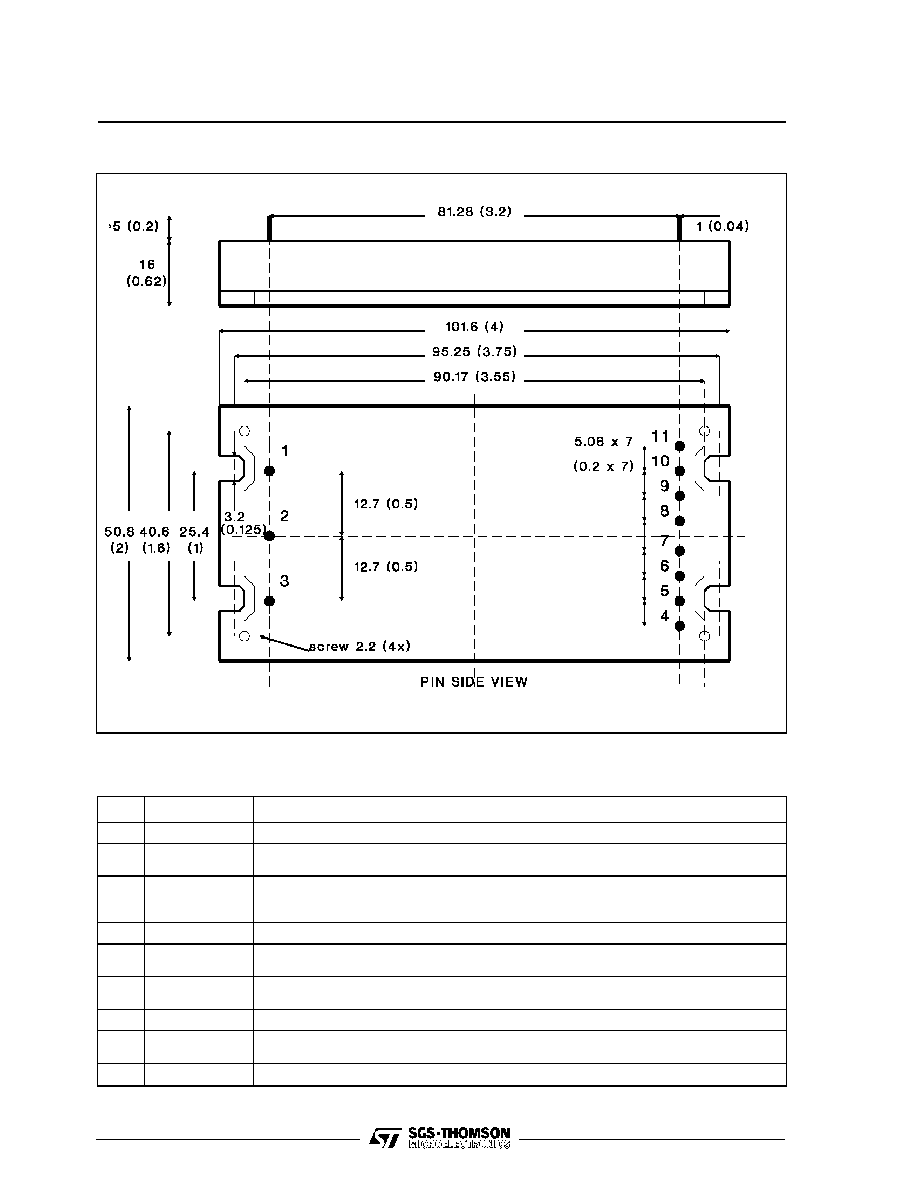

CONNECTION DIAGRAM AND MECHANICAL DATA

PIN DESCRIPTION

Pin

Function

Description

1

GND Input

Return for input voltage source. Internally connected to pin 10,11.

2

Inhibit

The converter is ON (Enable) when this pin is unconnected or the voltage applied is lower

than 1.2V. The converter is OFF (Inhibit) for a control voltage in the range of 2 to 24V.

3

+ Vin

DC Input voltage; recommended maximum voltage is 36V.

External capacitor between pin 3 and pin 1 is mandatory; recommended value is

1000

µF/50V for switching application.

4,5

+ Vout

+12V output voltage.

6

+ Sense

Senses the remote load high side. To be connected to pin 4,5 when remote sense is not

used.

7

Sync

Synchronization output. See figures 1,2,3,4. Take care to leave the pin open when is not

used.

8

Parallel

Parallel output. See figures 1,2,3,4. Take care to leave the pin open when is not used.

9

- Sense

Senses the remote load return. To be connected to pin 10,11 when remote sense is not

used. In parallel configuration, take care to connect all -S pins together (see figures 1,2,3,4).

10,11

GND Output

Return for output current path. Internally connected to pin 1.
