INDUSTRIAL & COMMERCIAL TRANSPORTATION /// CONNECTOR SELECTOR

PAGE 13

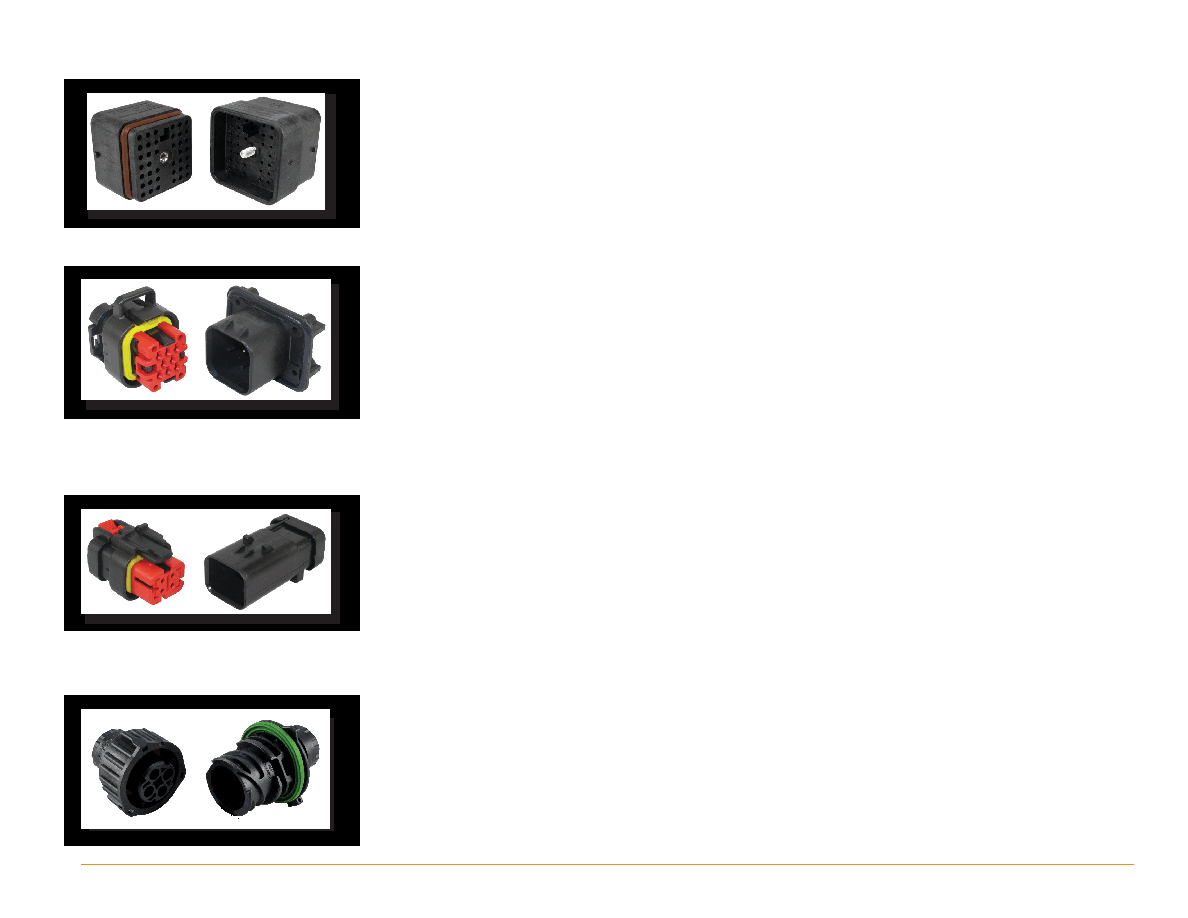

SERIES OVERVIEW

AEC Series

•

Accepts contact size 16 (13 amps)

•

14-20 AWG (2.50-0.50 mm2)

•

40 cavity arrangement

•

In-line mount

•

Square, thermoplastic housing

•

Jackscrew for mating

AMPSEAL Connectors

•

Accepts contact size 1.3 mm (up to 17 amps gold, up to 8 amps tin)

•

16-20 AWG (1.25-0.50 mm2)

•

8, 14, 23, and 35 cavity arrangements

•

PCB mount

•

Rectangular, thermoplastic housing

•

Integrated latch for mating

•

Integrated wedgelock confirms contact alignment and retention

•

Product specification documents: 108-1329 and 114-16016

AMPSEAL 16 Connectors

•

Accepts contact size HDSF 16 (up to 13 amps)

•

14-20 AWG (2.50-0.50 mm2)

•

2, 3, 4, 6, 8, and 12 cavity arrangements

•

In-line mount

•

Rectangular, thermoplastic housing

•

Integrated latch for mating

•

Integrated Primary Latch Reinforcement (PLR) confirms contact alignment and retention

•

Product specification documents: 108-2184, 114-13045, and 114-13065

Circular DIN Connectors

•

Accepts contact size 2.5 mm (up to 40 amps)

•

2.50-0.20 mm2

•

2, 3, and 4 cavity arrangements

•

In-line, flange, or PCB mount

•

Circular, thermoplastic housing

•

Coupling ring for mating

•

Product specification documents: 108-18621 and 114-18255
