Shield Termination

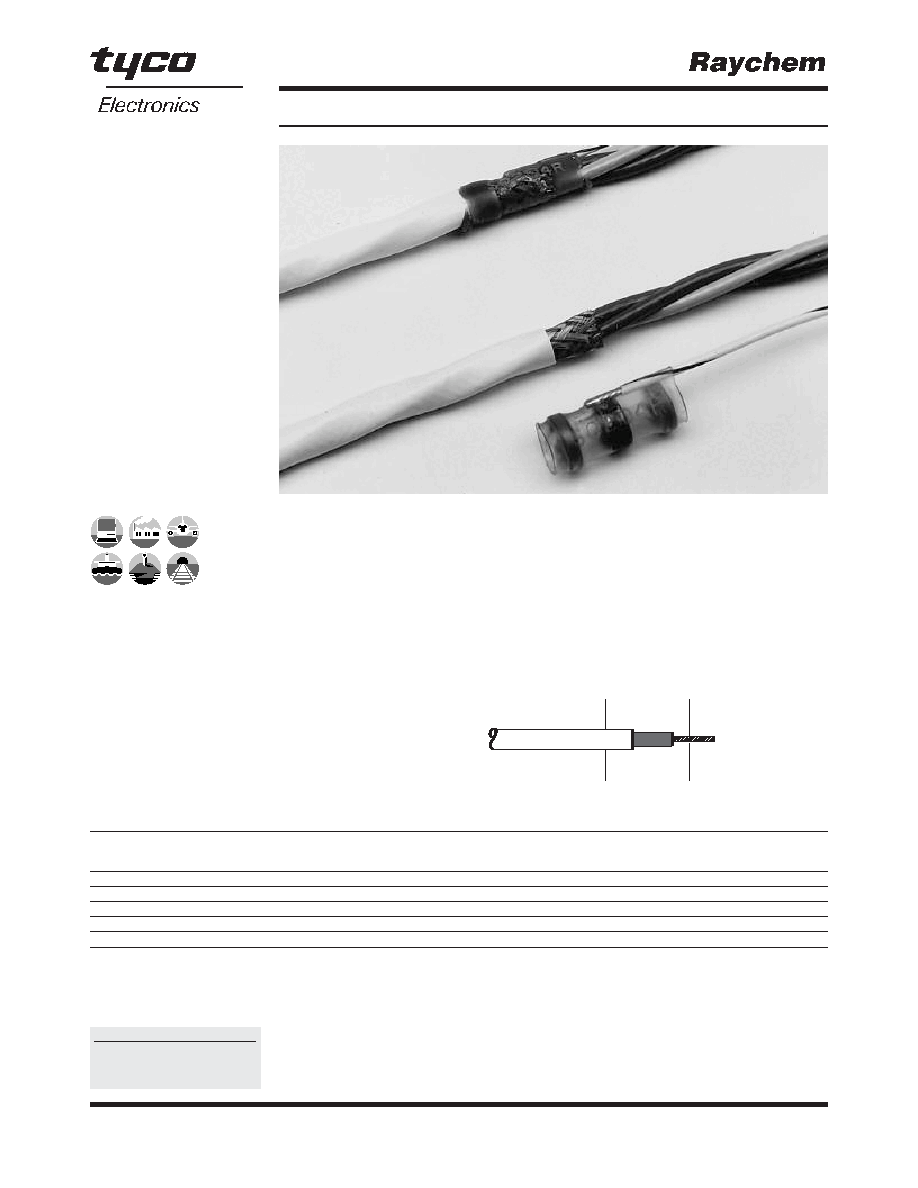

SolderSleeve Shield Terminators

Product Selection Process

1. Select product series

from the Product Options

table below.

2. Determine cable

dimensions.

3. Optional: Select prein-

stalled wire lead type

(see Table G on page

8-47 for type

descriptions).

4. Select part number (use

the selection table indi-

cated for your product

series in the Product

Options table below).

5. Refer to Table H on page

8-49 for cross-reference

information.

Product Options (Refer to Table G on Page 8-47 for Additional Information)

System Oper.

Used on

Part No.

Product

Temperature

Cables Rated

Environmental

Solder

Flux

Insulation

Selection

Series

(Max.)

(Min.)

Protection

Alloy

Type

Material

Table

CWT

125°C [257°F]

85°C [185°F]

Splash resistant

Cd18

RA

Polyolefin

A

SO63*

150°C [302°F]

125°C [257°F]

Immersion resistant

Sn63

RMA

Polyvinylidene fluoride

B

S01/S02**, S03

150°C [302°F]

125°C [257°F]

Immersion resistant

Sn63

RMA

Polyvinylidene fluoride

C, D

SO96***

175°C [347°F]

150°C [302°F]

Immersion resistant

Sn96

RA

Polyvinylidene fluoride

E

SO175****

175˚C [347°F]

150˚C [302°F]

Immersion resistant

Sn96

RA

Polyvinylidene fluoride

F

*Meets performance requirements of SAE-AS83519 (formerly MIL-S-83519) and NAS 1747, supplied with BiAlloy temperature indicator.

**Qualified to SAE-AS83519 (formerly MIL-S-83519), supplied with thermochromic temperature indicator.

***Meets performance requirements of SAE-AS83519 (formerly MIL-S-83519) and NAS 1747, supplied with thermochromic temperature indicator.

****Meets performance requirements of SAE-AS83519 (formerly MIL-S-83519), supplied with BiAlloy temperature indicator.

Note:

Cadmium-free option (B-152 series) is available for operating temperature of 125˚C [257˚F]. Consult Tyco Electronics for details.

Jacket OD (max.)

Shield OD (min.)

Product Facts

I Transparent insulation

sleeve provides

encapsulation,

inspectability, strain relief,

and insulation

I Prefluxed solder preform

provides a controlled

soldering process

I One-piece design offers

easy installation and lower

installed cost

I Optional preinstalled ground

leads provide convenience

and ease of installation

Applications

Used for shield-to-ground

termination.

Available in:

Americas

I

Europe

I

Asia Pacific

I
