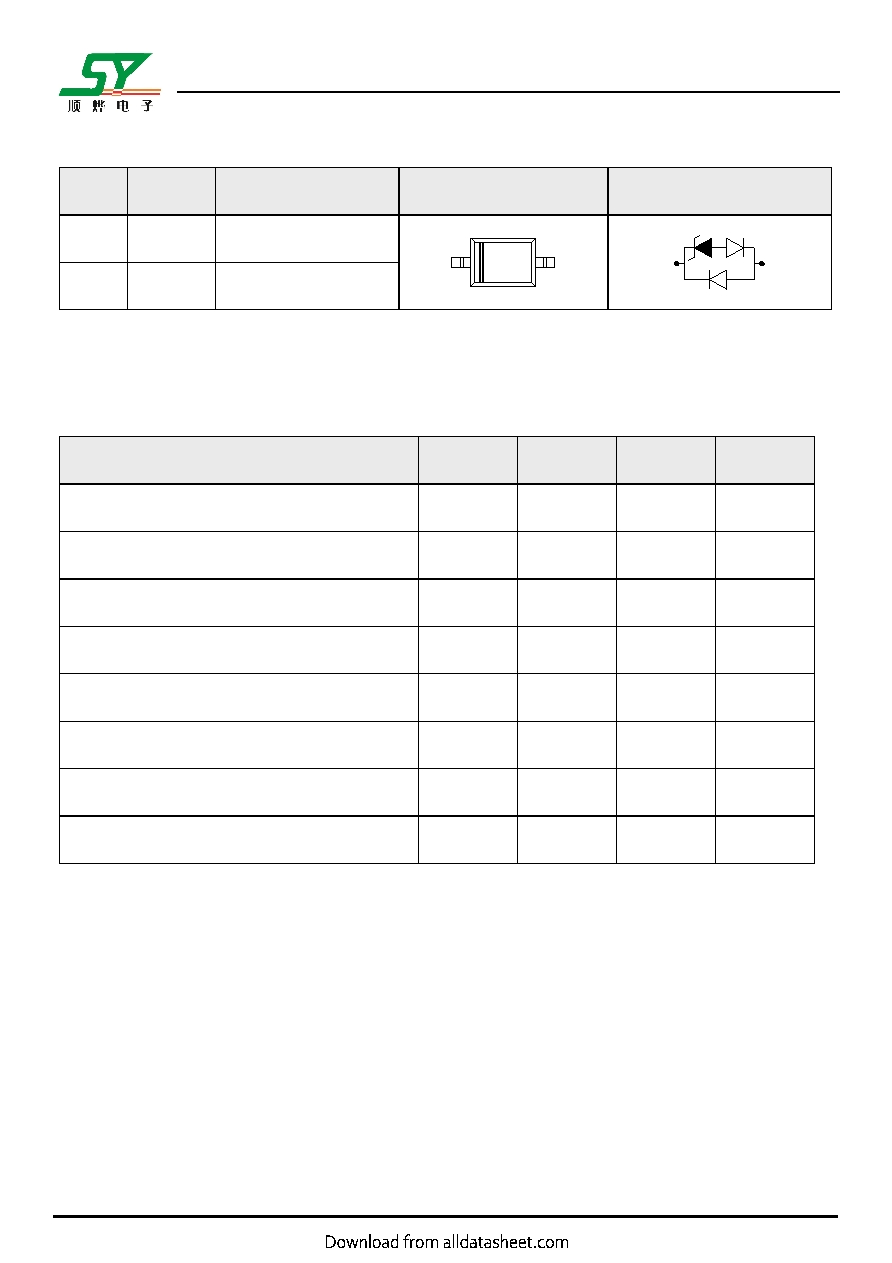

Pin Configuration and Functions
Pin
Name
Description
Outline
Circuit Diagram
1
IO
Connect to IO
1
2
Marking
1
2
2
GND
Connect to GND
Table-2
Pin configuration
Absolute Maximum rating
Over operating free-air temperature range (unless otherwise noted)
Parameters
Symbol
Min.
Max.
Unit
Peak pulse power (tp=8/20us)@25
℃
Ppk
-
300
W
Peak pulse current (tp=8/20us)@25
℃
IPP
Refer to
Table-5
A
ESD (IEC61000-4-2 air discharge) @25
℃
VESD
-
±30
kV
ESD (IEC61000-4-2 contact discharge) @25
℃
VESD
-
±30
kV
Junction temperature
TJ
-
125
℃
Operating temperature
TOP
-40
125
℃
Storage temperature
TSTG
-55
150
℃
Lead temperature
TL
-
260
℃
Table-3
Absolute Maximum rating
ALDxxCU series
www.shunyegroup.com.cn
V2.22
