Horizontal Link Identification – Connectors

Section 5.1.2 States

A horizontal link identifier, unique within the building, shall be assigned to each horizontal link and to its elements.

In the work area, each individual telecommunications outlet/connector shall be labeled with the horizontal link

identifier. The labeling shall appear on the connector, faceplate, or MUTOA, in a way that clearly identifies the

individual connector associated with the particular identifier. A horizontal link identifier shall have a format of

“fs-an” where:

f = numeric character(s) identifying the floor of the building occupied by the TS (Telecommunications Space)

s = alpha character(s) uniquely identifying the TS on floor f, or the building area in which the space is located

a = one to two alpha characters uniquely identifying a single patch panel or a group of patch panels with

sequentially numbered ports, an IDC connector or a group of IDC connectors, serving as part of the

horizontal cross-connect

n = two to four numeric characters designating the port on a patch panel in the TS or the section of an IDC

connector on which a four pair horizontal cable is terminated in the TS

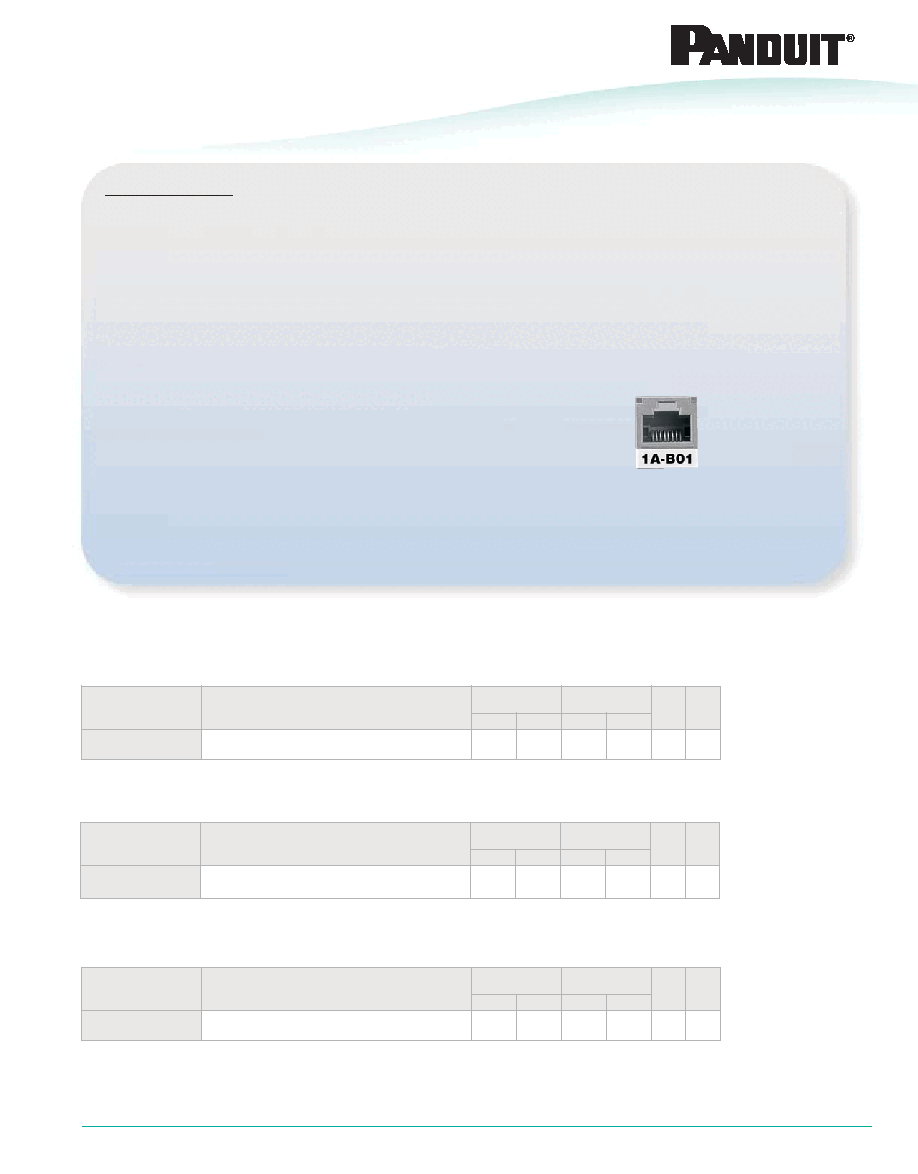

For example:

“1A-B01” = origination point first floor,

TS A, patch panel B, position 01

Panduit labels for laser/ink jet and thermal transfer printers can be generated by a

mechanical device and are made of durable polymer construction that will withstand the

effects of moisture, heat, and time.

Desktop Laser/Ink Jet Labels

Order number of labels required in multiples of Standard Package Quantity.

TDP43MY Desktop Thermal Transfer Labels

PanTher ™ LS8E Hand-Held Thermal Transfer Printer Label Cassette

Order number of cassettes required.

Order number of labels required in multiples of Standard Package Quantity.

Part Number

Part Description

Width

Height

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

In.

mm

In.

mm

C138X019FJJ

White, polyolefin label, Mini-Com ®

Module identifier.

1.38

35.05

.19

4.83

2500 12500

Part Number

Part Description

Width

Height

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

In.

mm

In.

mm

C138X019YPT

White, polyester label, Mini-Com ®

Module identifier.

1.38

35.05

.19

4.83

2500 10000

Part Number

Part Description

Width

Height

Std.

Pkg.

Qty.

Std.

Ctn.

Qty.

In.

mm

In.

mm

C138X019FJC

White, polyolefin label, 200/cassette, Mini-Com ®

Module identifier.

1.38

35.05

.19

4.83

1

10
