APM32E103CET6-R 数据表(PDF) 10 Page - Geehy Semiconductor Co., Ltd.

部件名 APM32E103CET6-R
功能描述  Arm® Cortex®-M3 based 32-bit MCU
PDF  79 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  GEEHY [Geehy Semiconductor Co., Ltd.]
网页  https://global.geehy.com/
标志 GEEHY - Geehy Semiconductor Co., Ltd.

APM32E103CET6-R 数据表(HTML) 10 Page - Geehy Semiconductor Co., Ltd.

Back Button APM32E103CET6-R Datasheet HTML 6Page - Geehy Semiconductor Co., Ltd. APM32E103CET6-R Datasheet HTML 7Page - Geehy Semiconductor Co., Ltd. APM32E103CET6-R Datasheet HTML 8Page - Geehy Semiconductor Co., Ltd. APM32E103CET6-R Datasheet HTML 9Page - Geehy Semiconductor Co., Ltd. APM32E103CET6-R Datasheet HTML 10Page - Geehy Semiconductor Co., Ltd. APM32E103CET6-R Datasheet HTML 11Page - Geehy Semiconductor Co., Ltd. APM32E103CET6-R Datasheet HTML 12Page - Geehy Semiconductor Co., Ltd. APM32E103CET6-R Datasheet HTML 13Page - Geehy Semiconductor Co., Ltd. APM32E103CET6-R Datasheet HTML 14Page - Geehy Semiconductor Co., Ltd. Next Button
Zoom Inzoom in Zoom Outzoom out
 10 / 79 page
background image
w w w.g e eh y. co m
P ag e 9

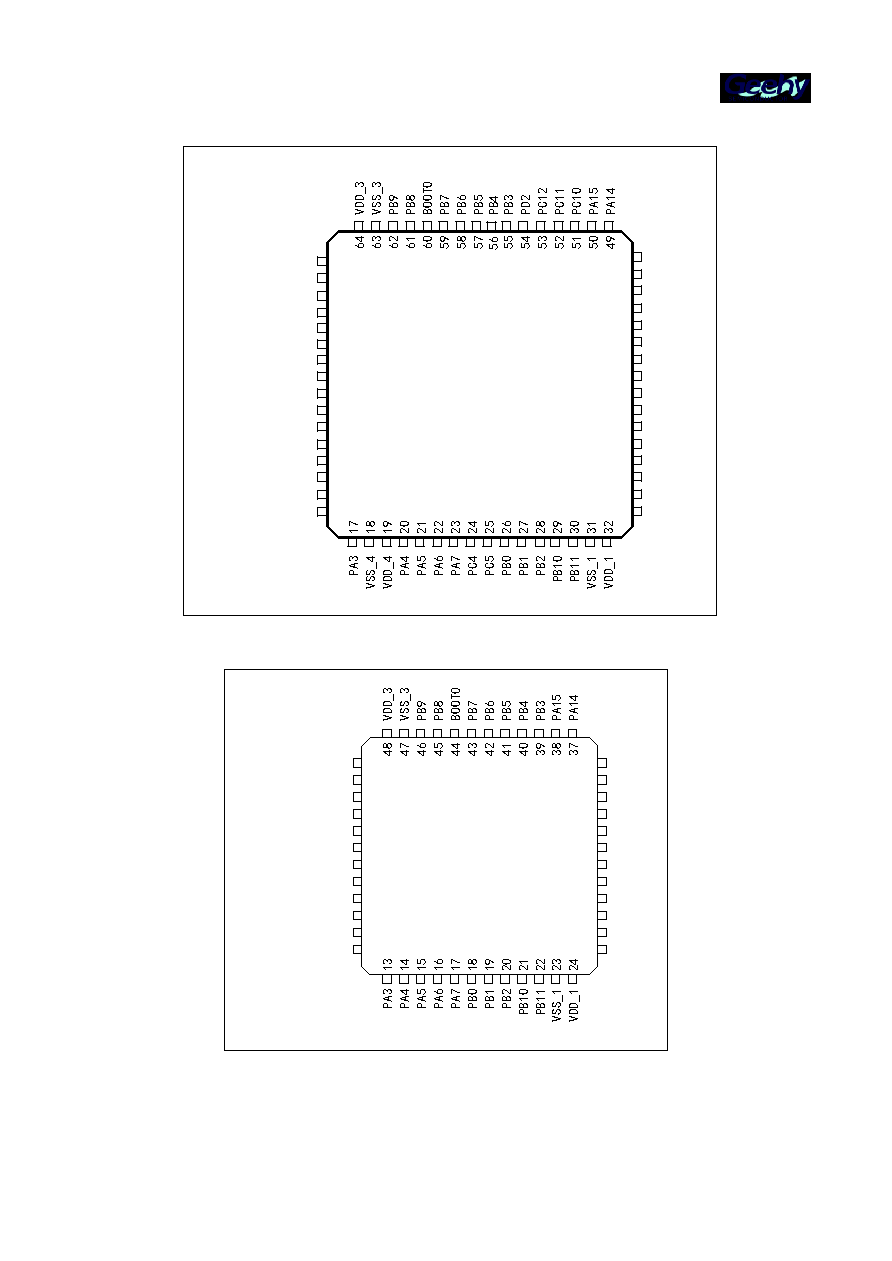

Figure 3 Distribution Diagram of APM32E103xCxE Series LQFP64 Pins
LQFP64
1
VBAT
2
PC13-TAMPER-RTC
3
PC14-OSC32_IN
4
PC15-OSC32_OUT
5
PD0-OSC_IN
6
PD1-OSC_OUT
7
NRST
8
PC0
9
PC1
10
PC2
11
PC3
12
VSSA
13
VDDA
14
PA0-WKUP
15
PA1
16
PA2
48
VDD_2
47
VSS_2
46
PA13
45
PA12
44
PA11
43
PA10
42
PA9
41
PA8
40
PC9
39
PC8
38
PC7
37
PC6
36
PB15
35
PB14
34
PB13
33
PB12
Figure 4 Distribution Diagram of APM32E103xCxE Series LQFP48 Pins
LQFP48
1
VBAT
2
PC13
-TAMPER-RTC
3
PC14-OSC32_IN
4
PC15-OSC32_OUT
5
PD0-OSC_IN
6
PD1-OSC_OUT
7
NRST
8
9
10
11
12
VSSA
VDDA
PA0-WKUP
PA1
PA2
VDD_2
VSS_2
PA13
PA12
PA11
PA10
PA9
PA8
36
PB15
35
PB14
34
PB13
33
PB12
32
31
30
29
28
27
26
25
