The OMEGA® DP41 Series of digital

panel meter/controllers has set the

world standard for accuracy and

quality in industrial instrumentation.

These meters can measure a broad

spectrum of DC voltage and current

ranges as well as inputs from

9 thermocouple types and from

most RTDs, pressure transducers,

load cells, strain gages, and

potentiometers. Models include the

M-31

DP41-W, a legal-for-trade, NTEP-

certified strain meter with enhanced

features, and the DP41-U, which

covers all the input types.

Standard features include 6-digit

display; 5 front-panel pushbutton

keys; 4 open-collector outputs; and

alarm/control, BCD, and analog

outputs. Configurable analog output

ranges are 0 to 20 mA, 4 to 20 mA,

0 to 5 Vdc, and 0 to 10 Vdc.

On-board excitation allows these

meters to power virtually any sensor

or transmitter, and 4 setpoints give

the user numerous control/alarm

possibilities. Setpoint configurations

include active above or below;

latching or non-latching; and high

deviation, low deviation, or band

deviation.

With the RS232/485 serial

communications option, the user

can set the display parameters and

read the current, max, and min

values remotely. The DP40-R board

option provides dual 7 A

mechanical relays, activated by

the selected setpoint.

1

⁄8 DIN High-Performance Meters

Alarm/Control Capabilities Temperature,

Process Voltage and Current, Strain Gage

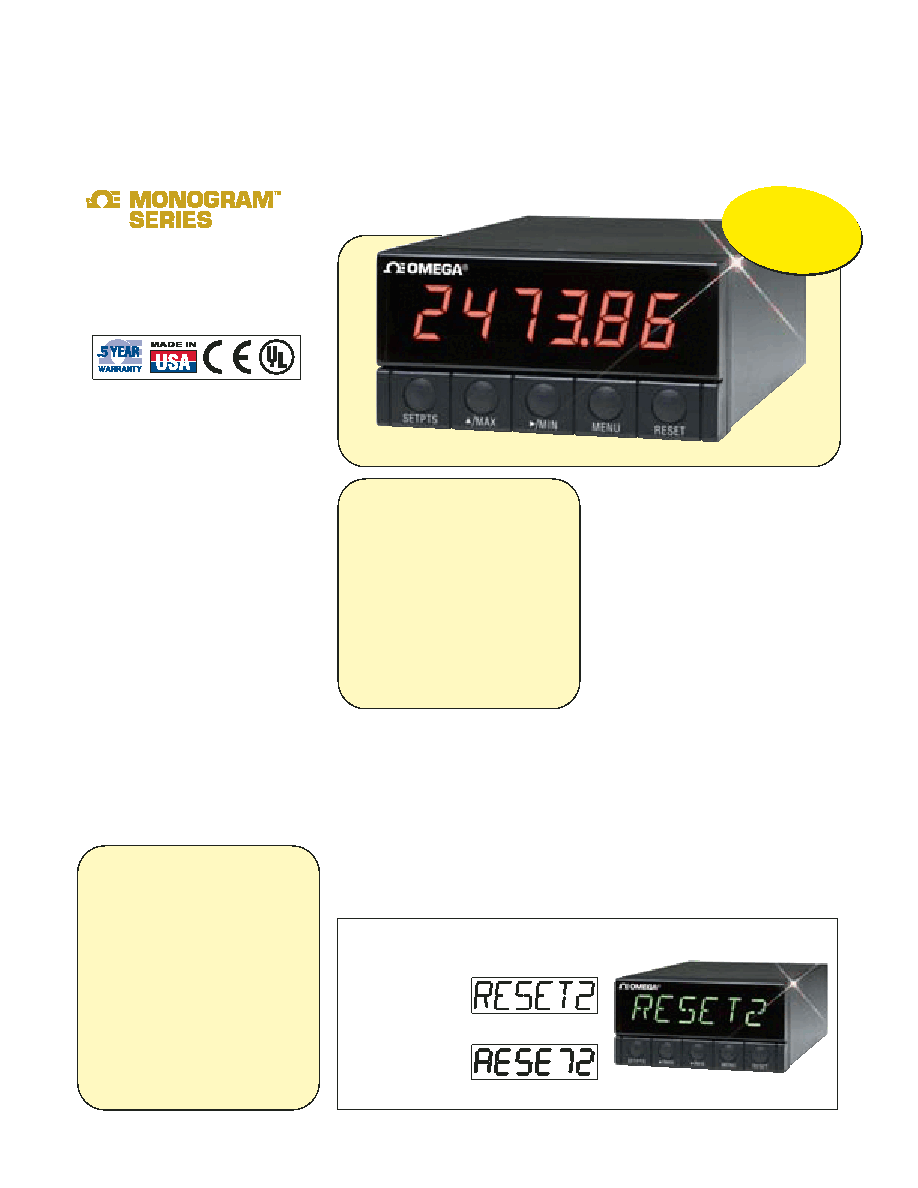

The DP41 displays feature 14-segment LED characters, which greatly improves

alphanumeric representations. The 7-segment LED characters found on most

instruments are adequate for presenting

numbers, but not

letters. Words are

easier to read with

the 14-segment

LED characters on

the DP41, which,

in turn, simplifies

operating and

programming.

14-segment display

7-segment display

14-segment LED

DP41

Starts at

All Units Feature

5-Year Warranty

6-Digit Display

Min/Max Storage

4 Isolated Open-Collector

Outputs

NEMA 4 (IP65) Front Panel

12 Readings per Second

Alarm/Control Capabilities

Smart Filtering Detects

the Difference Between a

Spike or Process Change

(Patent Applied for)

Peak and Valley Detection

Digital Tare

Easy Front-Panel

Programming

Optional BCD Output

Optional Analog Output

Optional RS232/RS485

Communications

Optional Mechanical Relays

Voltage/Current Inputs

±0.005% Rdg Accuracy

10 User-Selectable

Voltage or 4 to 20/

0 to 20 mA Input Ranges

Fully Scalable Display Up

to 500,000 Counts

1.5 to 11 Vdc or 24 Vdc

Sensor Excitation

Adjustable

Decimal Point

DP41-S, strain meter,

shown smaller than actual size.

Thermocouple Input

0.01° Resolution

0.2°C Accuracy

9 Thermocouple Types

°C/°F/K Units

Uses Complete NIST

Calibration Tables

RTD Input

0.01° Resolution

0.2°C Accuracy

2-, 3-, or 4-Wire

385 and 392 Pt Curves

Panel Punches

Available,

Visit

omega.com/panelpunches
