WCB405 — STATUS/ENABLE DB-9 CABLE (NOT INCLUDED)

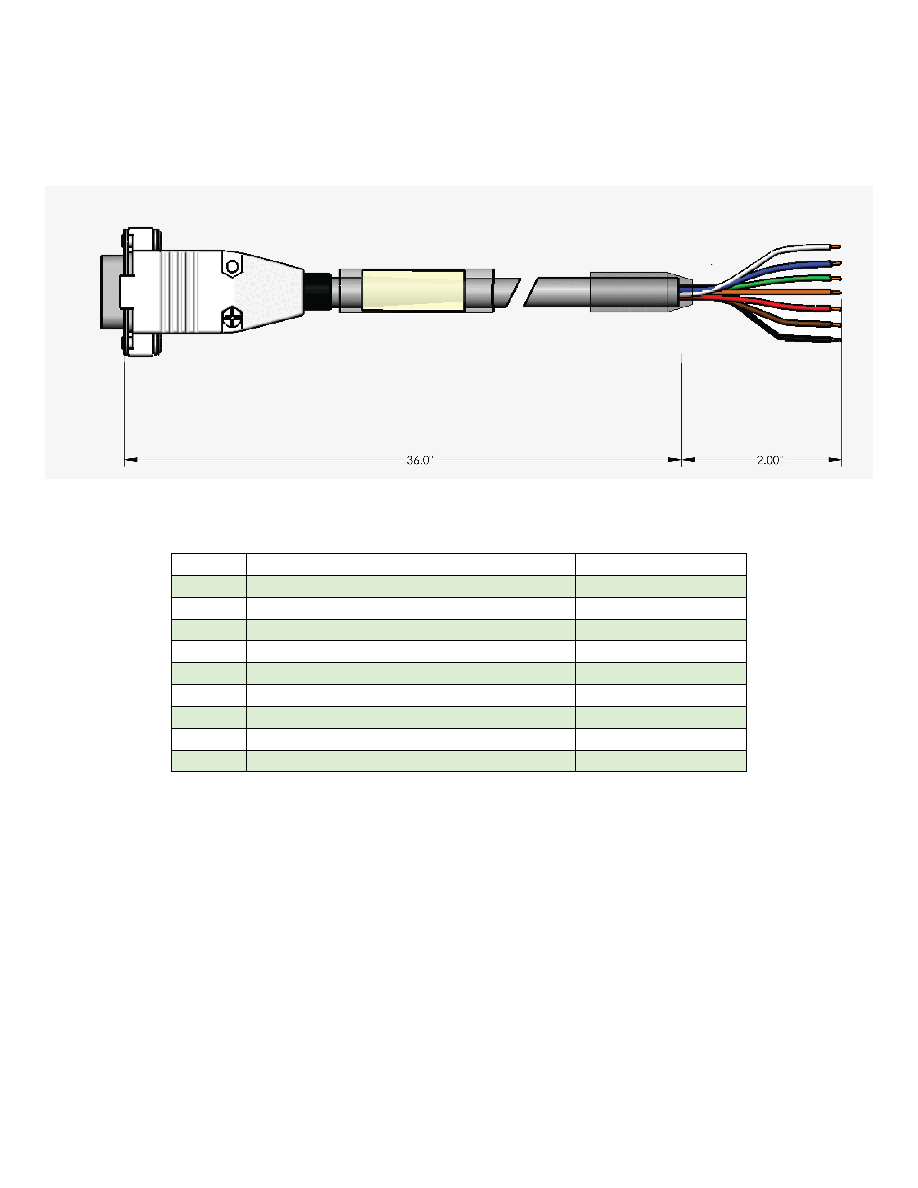

Figure 32. WCB405 Wiring Diagram (not included)
Table 7. WCB405 Pin/Wire Designation
PIN
DESCRIPTION
WIRE COLOR
1
REMOTE ENABLE INPUT (IN)
White
2
REMOTE ENABLE GROUND (GND)
Green
3
NO CONNECTION
4
NO CONNECTION
5
STATUS GROUND (GND)
Black
6
ENABLE STATUS
Blue
7
AT TEMP STATUS
Orange
8
FAN DRIVER OUTPUT
Red
9
FAN GROUND (GND)
Brown
CABLING SPECIFICATIONS
