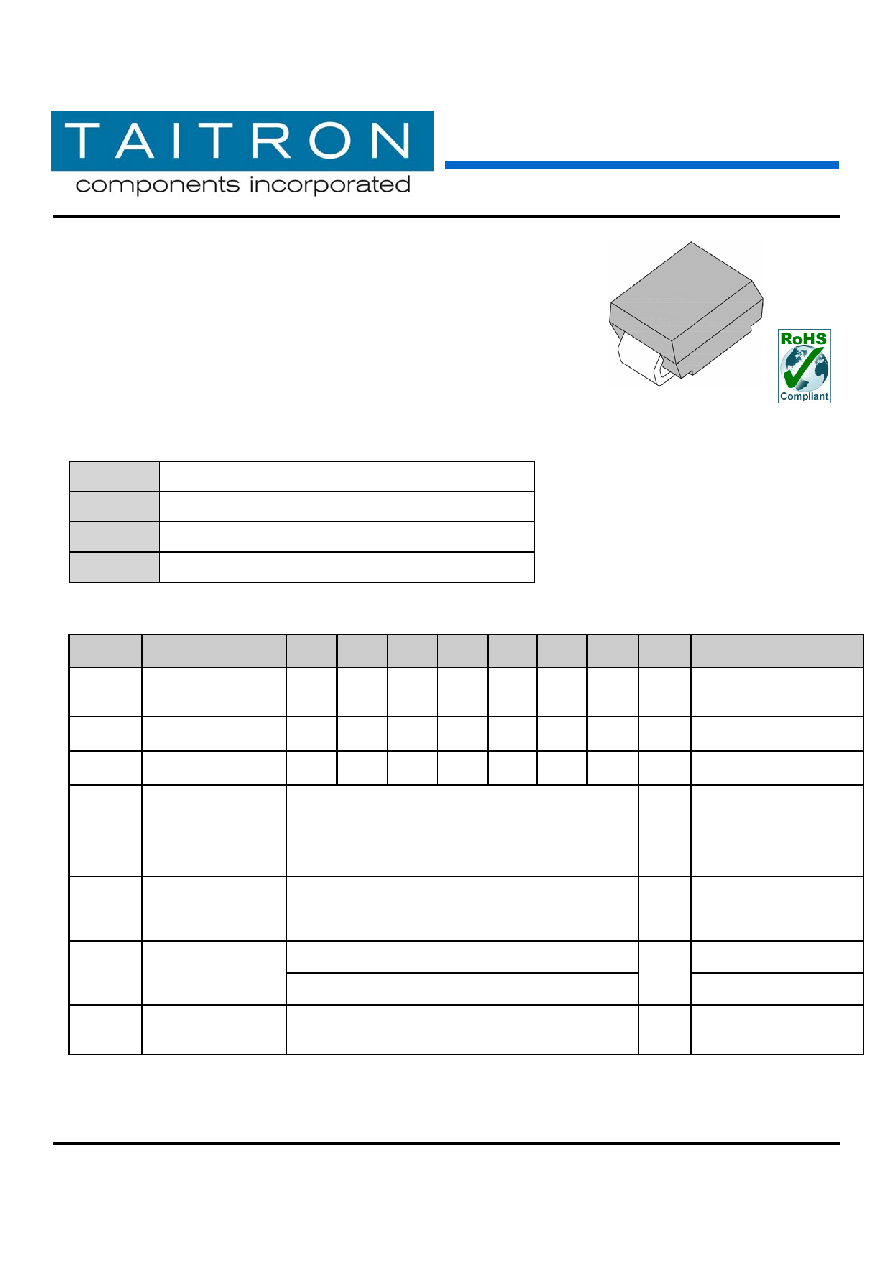

1 / 5 page

Rev. A/JJ 2007-06-15

S3AB-S3MB

3.0A SURFACE MOUNT RECTIFIER

TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com

Page 1 of 5

Tel: (800)-TAITRON

(800)-824-8766

(661)-257-6060

Fax: (800)-TAITFAX

(800)-824-8329

(661)-257-6415

3.0A Surface Mount Rectifier

Features

• Glass passivated junction

• Plastic package has underwriters laboratory

flammability classification 94 V-0

• High temperature soldering: 250 °C / 10 seconds at terminals

• RoHS compliant

Mechanical Data

Case:

JEDEC DO-214AA molded plastic

Terminals:

Solder plated solderable per MIL-STD-750, Method 2026

Polarity:

cathode end indicated by color band

Weight:

0.003 Ounce, 0.093 gram

Maximum Ratings (T

Ambient=25ºC unless noted)

Symbol

Description

S3AB

S3BB

S3DB

S3GB

S3JB

S3KB

S3MB

Unit

Conditions

VRRM

Maximum Repetitive

Peak Reverse

Voltage

50

100

200

400

600

800

1000

V

VRMS

Maximum RMS

Voltage

35

70

140

280

420

560

700

V

VDC

Maximum DC

Blocking Voltage

50

100

200

400

600

800

1000

V

IAV

Maximum Average

Forward Rectified

Current @TL=103°C

3.0

A

Thermal resistance from

junction to ambient and

from junction to lead

mounted on P.C.B. with

0.3 x 0.3" (8.0 x 8.0 mm)

copper pad area

IFSM

Peak Forward Surge

Current

100

A

8.3ms single half sine-

wave superimposed on

rated load (JEDEC

method)

5.0

TA = 25 °C

IR

Maximum DC

Reverse Current at

Rated DC Blocking

Voltage

250

µA

TA = 125 °C

TJ,TSTG

Operating Junction

and Storage

Temperature Range

-55 to 150

° C

SMB

(DO-214AA)
