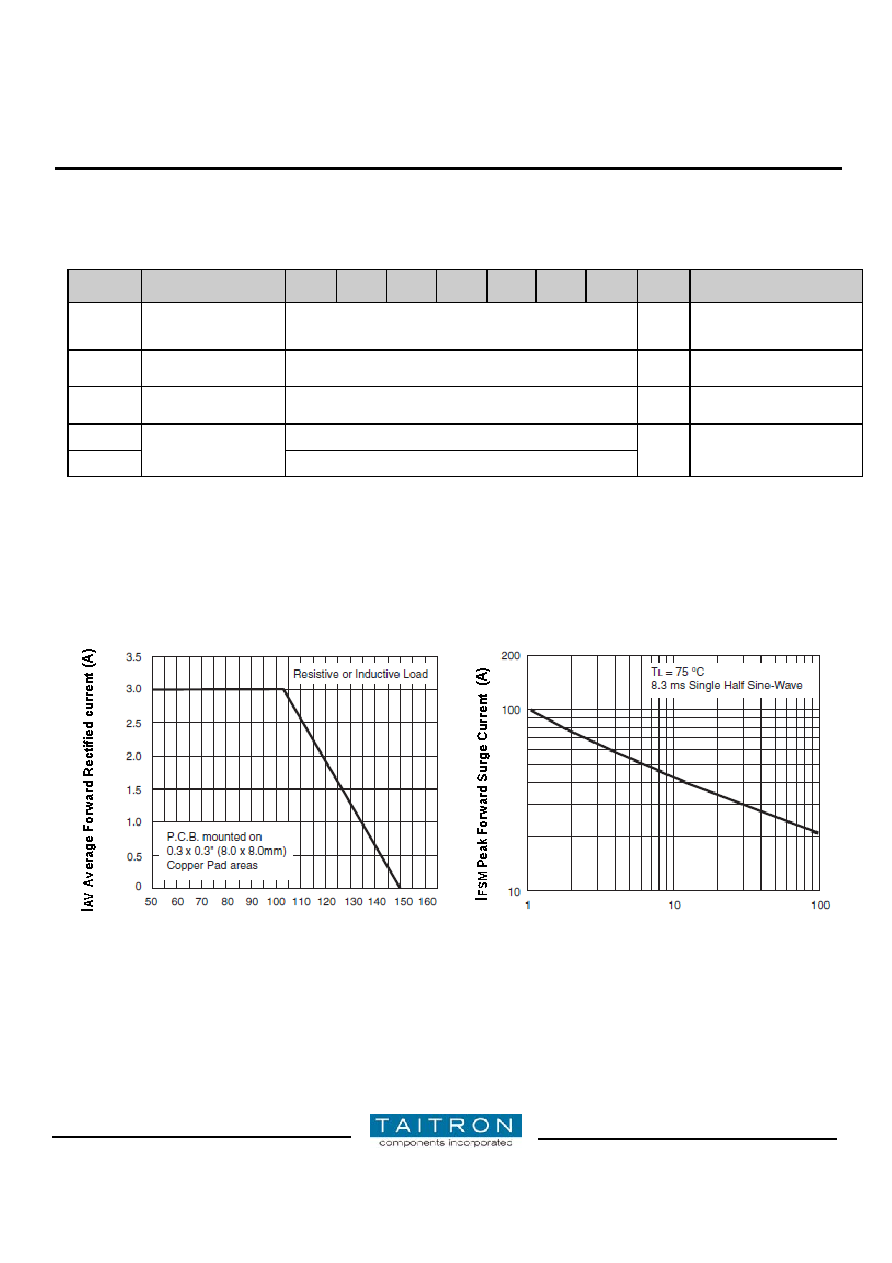

2 / 5 page  3.0A Surface Mount Rectifier Rev. A/JJ 2007-06-15 S3AB-S3MB www.taitroncomponents.com Page 2 of 5 Fig.1- Forward Current Derating Curve Lead Temperature (° C) Electrical Characteristics (T Ambient=25ºC unless noted) Typical Characteristics Curves Symbol Description S3AB S3BB S3DB S3GB S3JB S3KB S3MB Unit Conditions VF Maximum Instantaneous Forward Voltage 1.15 V IF at 2.5 A Trr Typical Reverse Recovery Time 2.5 µS IF = 0.5A, IR= 1.0A, Irr =0.25A CJ Typical Junction Capacitance 60 pf Measured at 1.0 MHZ and Applied Vr = 4.0 volts. Rθ-JA 47 Rθ-JL Maximum Thermal Resistance 13 ° C/W Mounted on 0.3" x 0.3" (8mmx8mm) copper pad area Fig.2-Max. Non-Repetitive Forward Surge Current Number of Cycles at 60Hz |
|
|
