Low-Power, Quad, 12-Bit
Voltage-Output DACs with Serial Interface
______________________________________________________________________________________
11
DIN
CS
TO OTHER
SERIAL DEVICES
MAX5500
MAX5501
SCLK
DIN
CS
DOUT
MAX5500
MAX5501
SCLK
DIN
CS
DOUT
MAX5500
MAX5501
SCLK
DIN
CS
DOUT
SCLK

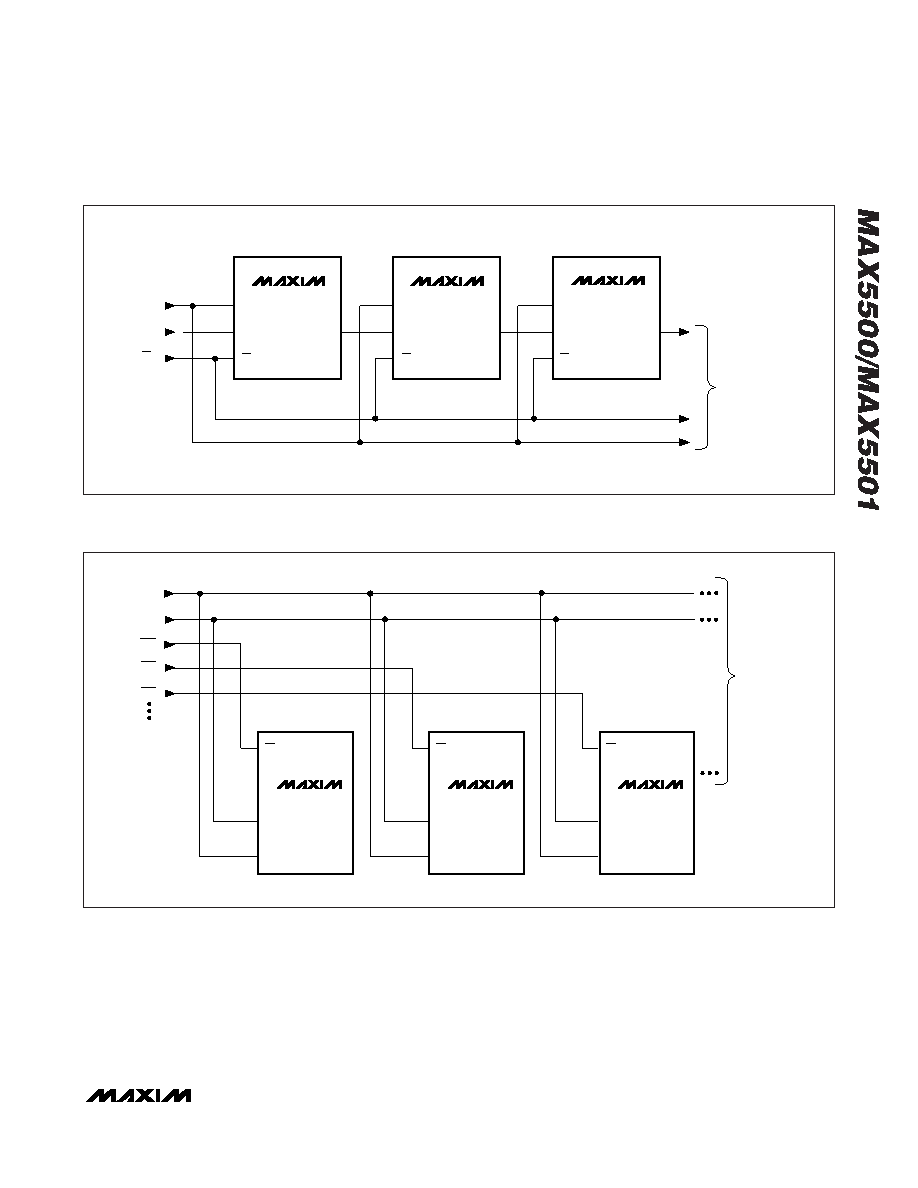

Figure 7. Daisy Chaining MAX5500/MAX5501
TO OTHER
SERIAL DEVICES
MAX5500
MAX5501
DIN
SCLK
CS
MAX5500
MAX5501
DIN
SCLK
CS
MAX5500
MAX5501
DIN
SCLK
CS
DIN
SCLK
CS1
CS2
CS3
Figure 8. Multiple MAX5500/MAX5501 Devices Sharing a Common DIN Line
