April 2000

1/9

®

VB409

/ VB409SP

HIGH VOLTAGE REGULATOR POWER I.C.

s

NO HIGH VOLTAGE EXTERNAL CAPACITOR

s

5 V DC REGULATED OUTPUT VOLTAGE

s

OUTPUT CURRENT LIMITED TO 70 mA

s

THERMAL SHUT-DOWN PROTECTION

s

INPUT OVERCURRENT PROTECTION

s

POWER DISSIPATION INTERNALLY LIMITED

DESCRIPTION

The VB409 VB409SP are fully protected positive

voltage regulator designed in STMicroelectronics

High Voltage VIPower

™ technology. The devices

can be connected directly to the rectified mains

(110V/230V). The devices are well suited for

applications powered from the AC mains and

requiring a 5V DC regulated output voltage

without galvanic insulation. VB409, VB409SP

provides up to 70 mA output current (internally

limited) at 5V. The included over current and

thermal shutdown provide protection for the

device.

TYPE

ICL(in)

ICL(out)

VOUT

VB409

VB409SP

0.8 A

70 mA

5V

± 5%

1

PRELIMINARY DATA

PENTAWATT HV(022Y)

1

10

PowerSO-10

™

ORDER CODES:

PENTAWATT HV(022Y) VB409

PowerSO-10

™

VB409SP

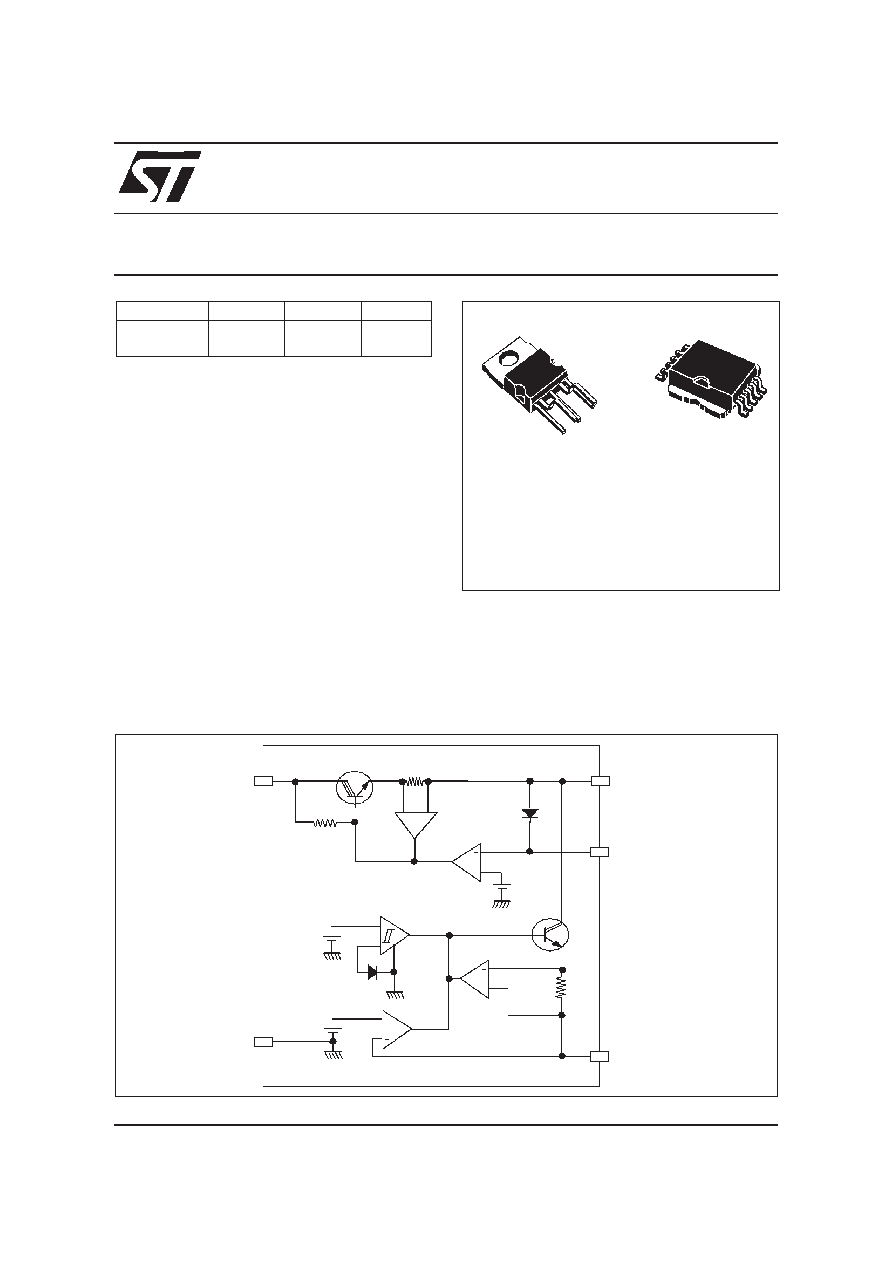

BLOCK DIAGRAM

Input current

limiter

Vref1

Vref2

Thermal

protection

Output current

limiter

Vref3

OUTPUT

Threshold

Cap

GND

INPUT
